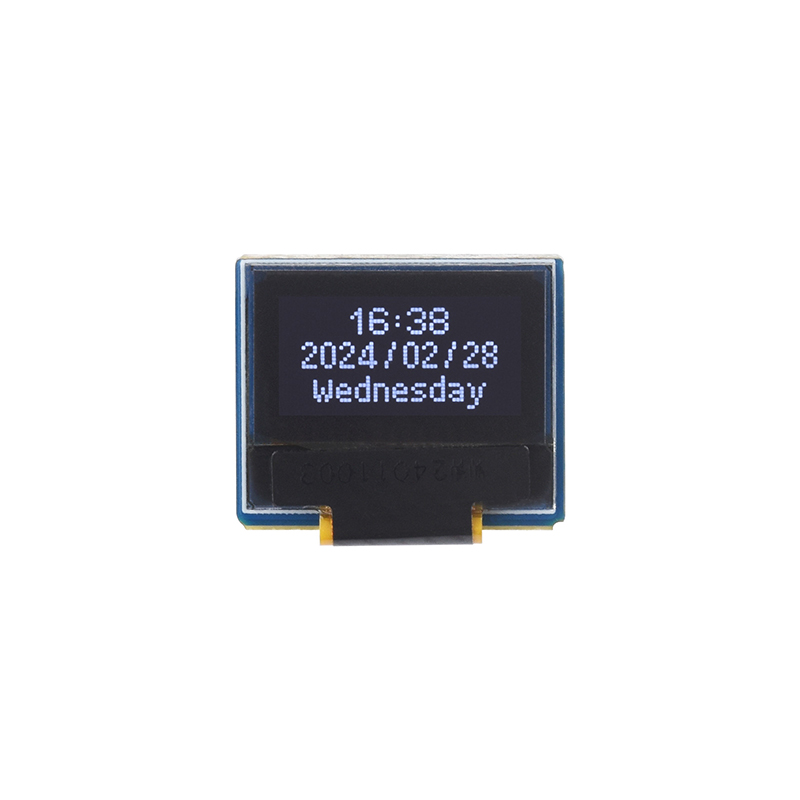

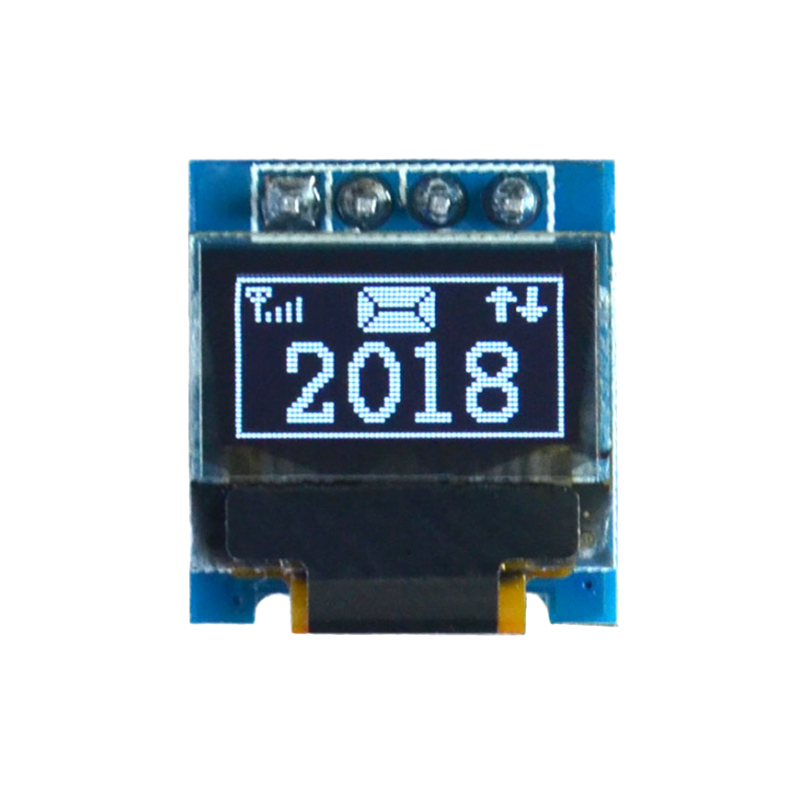

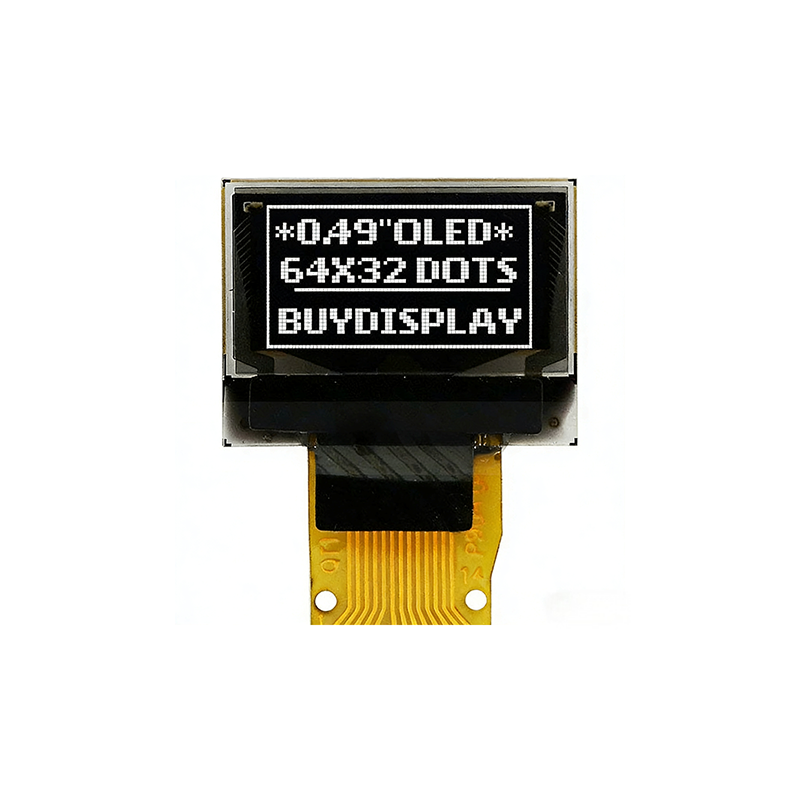

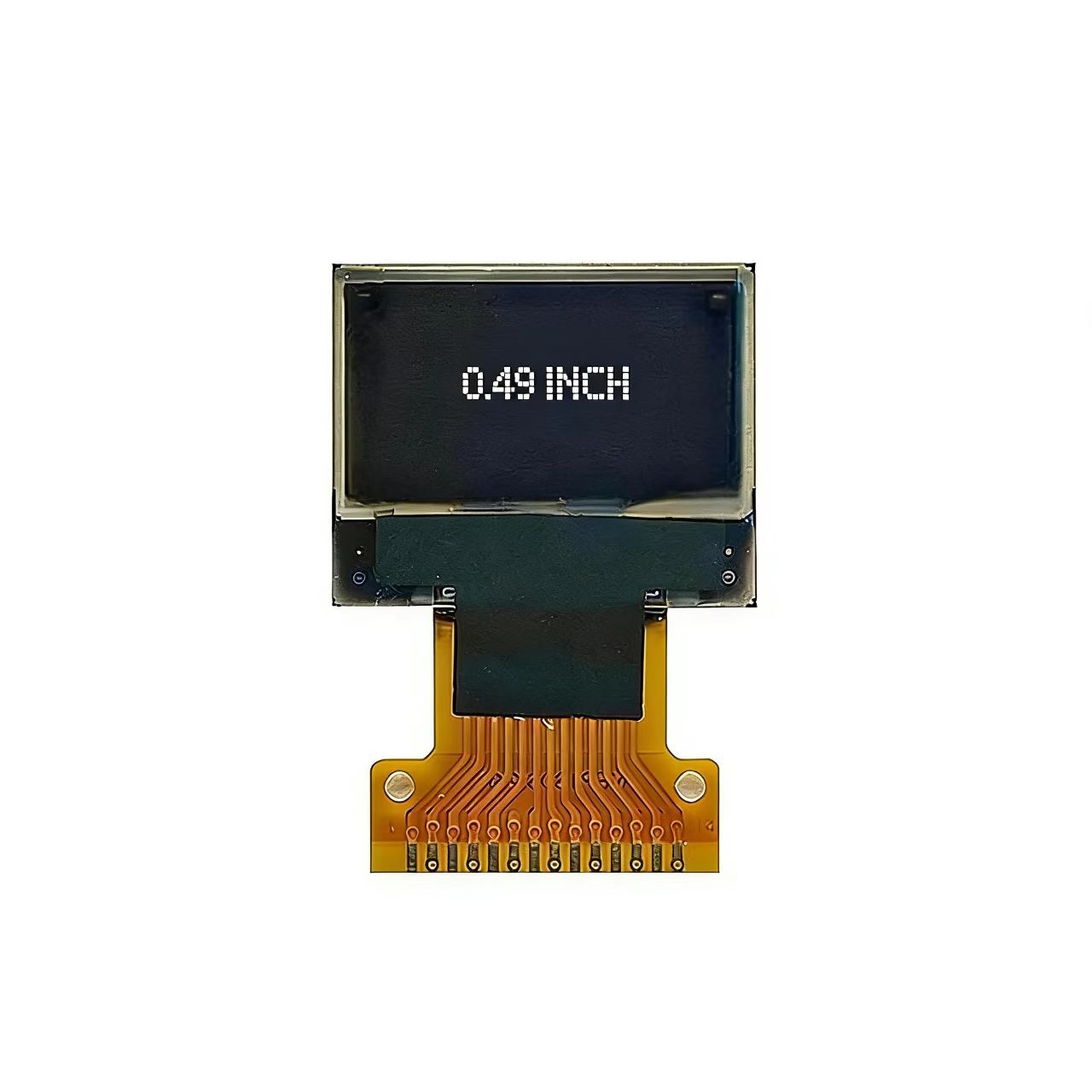

This ultra-compact 0.49-inch Mini OLED display delivers clear, sharp, and high-contrast visuals, making it particularly suitable for space-constrained applications. Featuring wide viewing angles and low power consumption, it is widely used in portable wearable devices, smart accessories, and compact instrument displays. The module supports the I2C interface and offers stable, reliable performance.
EASTERN DISPLAY specializes in providing PMOLED and AMOLED display solutions ranging from 0.31 inches to 3.12 inches for the global industrial and consumer electronics markets. Our products are designed from the outset to meet the high standards of performance, reliability, and compliance demanded by the market.
1，Superior Display Performance
Our products deliver ultra-high contrast ratios, ensuring crisp legibility of text and graphics under all lighting conditions. With viewing angles exceeding 160°, they meet the needs of multi-angle observation. They also support wide-temperature operation, making them suitable for stable display performance in outdoor equipment and industrial environments.
2，Enhanced Reliability Design
All modules feature reinforced encapsulation technology to ensure stable operation in harsh environments. The product lifespan exceeds 50,000 hours (measured until brightness decays to 50% of its initial value at room temperature). They also support a wide input voltage range (3.0V–5.5V), adapting to complex power environments.
3，Flexible Interface & Power Optimization
Support for SPI/I2C standard interfaces ensures compatibility with mainstream microcontroller architectures. Power efficiency can be further optimized through software-adjustable brightness. The FPC connector offers both plug-in and soldering options; the plug-in version can interface directly with the PCB, eliminating connector costs and enhancing structural stability.
4，Compliance & Customization Services
All materials comply with RoHS/REACH standards. We offer flexible customization of parameters such as FPC length/bending angle and interface protocols, helping customers accelerate product integration.
Our OLED displays are widely used in smart home appliances, industrial instrumentation, measurement equipment, portable wearables, and other fields. We provide customers with highly reliable, easy-to-integrate, and environmentally compliant display solutions.
| Manufacturer | Eastern Display |
| Display Mode | OLED |
| Resolution | 64x32 |
| Dot color | White |
| Driver chip model | SSD1306 |

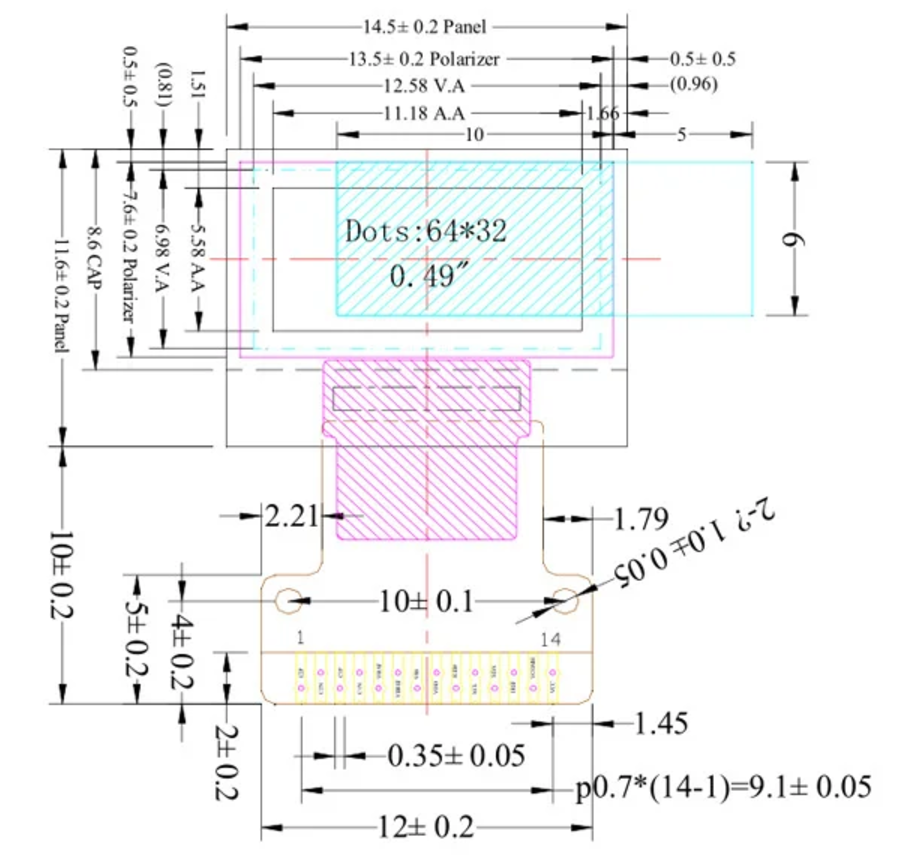

| Panel size | 14.5×11.6×1.2mm |
| Active area | 11.18×5.58mm |
| Operating voltage | 3.3v |
| Viewing angle | Free |
| Interface | I²C interface |
| Brightness | 180cd/m2 |
| Connection | FPC |
| Operating temperature | -40℃~70℃ |
| Storage temperature | -40℃~85℃ |
Product description: HTN LCD is widely used in industrial instruments, industrial con...
This 128128 LCD dot-matrix display features 128 columns x128 rows of pixels. Operating in FSTN mode with a white LED backlight, it delivers high contrast and wide viewing angles for blue-black text on a gray background. The module incorporates a driver chip manufactured using COG technology, ensuring lightweight design and low power consumption. Connected via an SPI interface LCD port to the main MCU, it enables versatile image and text display.
Product description: HTN LCD types are widely used in industrial instruments, industr...
The 1.3‑inch OLED display features an ultra‑thin profile, high contrast ratio, and wide viewing angles. It adopts self‑emissive technology, requiring no backlight, which results in extremely low power consumption, and supports a wide temperature operation range from -40 ℃ to 70 ℃. The module is equipped with standard SPI/I2C interfaces, making it compatible with mainstream microcontrollers. It is widely used in applications such as smart wearable devices, industrial instrumentation, portable medical equipment, and smart home control panels.
Product description: VA LCD products have high contrast, can display multiple colors,...
The VA segment code COG LCD module, known for its high reliability, superior optical performance, and cost-effectiveness, has become an ideal choice for display systems in small electric vehicles. This custom segment code COG module features a VA LCD screen, which is manufactured using the COG process and integrated with a driver chip. The LCD screen operates in VA mode and is connected to the main MCU via an I2C interface, using FPC (Flexible Printed Circuit) technology. This type of LCD module can be customized according to specific needs, offering high contrast, wide viewing angles, excellent display quality, a broad operating temperature range, low power consumption, a lightweight design, and stable performance.
LCD Display for Air Purifiers: Essential home air purifiers typically display real-time PM2.5 readings, formaldehyde (HCHO) levels, allergen concentrations, temperature/humidity readings or alerts, wind speed, operating modes, and emergency notifications. Some models feature touch-sensitive LCD interfaces. These devices usually come with backlighting for clear visibility in dim environments and are often equipped with color screen printing and tinted film for enhanced visual clarity.
This product is a custom segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC.This type of LCD module has a wide range of operating temperatures, low power consumption, thin and light structure, good display effect, stable performance and other characteristics.
This product is a 12232 LCD dot matrix display capable of rendering graphics with a resolution of 122 columns × 32 rows. The display utilizes an STN yellow-green mode LED backlit LCD, featuring a yellow-green background with black characters, high contrast, and a wide viewing angle. The module incorporates a dedicated driver chip, employs COB (Chip-on-Board) production technology, and connects to the main control MCU via an 8-bit parallel LCD interface for displaying various images and text.
Product description: STN/segment LCD has a wide viewing angle, which can reach 150° f...
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
This product is a 19264 LCD dot matrix display that can display graphics with 192 columns x 64 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background with high contrast and wide viewing angle. The module contains a driver chip and adopts a COB production process. It is connected to the main control MCU through an 8-bit parallel LCD interface and is used to display various images and texts.
Product description: TN LCD is widely used in industrial instruments, industrial cont...
Product description: This product is an automotive instrument tft display, with a res...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
FSTN is widely used in industrial instruments, industrial control equipment and communication equ...
