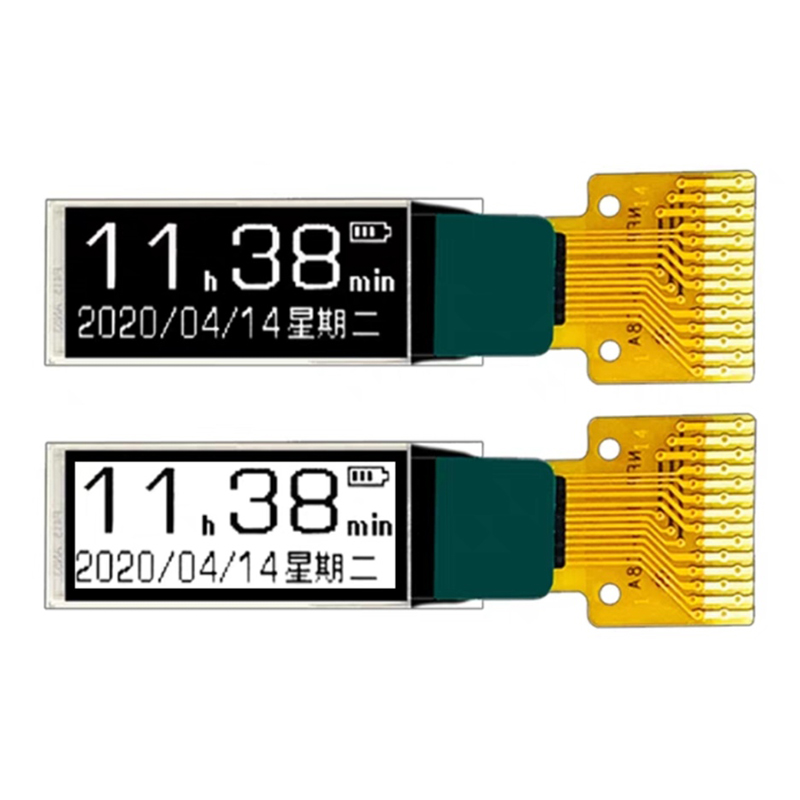

Product description: mini oled display, resolution 96*32, I2C interface, product ultra-low power consumption, ultra-high contrast and viewing angle, ultra-wide operating temperature -40 to 70 degrees Celsius. EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers. There are a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and round OLED. FPC plug-in and welding are optional. Plug-in can be directly welded to PCB for use without connectors, which is stable and reliable. All materials meet environmental protection requirements RoHS standards and are widely used in fire water monitors, smart home app...
mini oled display, resolution 96*32, I2C interface, product ultra-low power consumption, ultra-high contrast and viewing angle, ultra-wide operating temperature -40 to 70 degrees Celsius.
EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers. There are a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and round OLED. FPC plug-in and welding are optional. Plug-in can be directly welded to PCB for use without connectors, which is stable and reliable. All materials meet environmental protection requirements RoHS standards and are widely used in fire water monitors, smart home appliances, various measuring instruments, smart devices, etc.
| Manufacturer | Eastern Display |
| Display type | OLED |
| Resolution | 96x32 |
| Display color | White |
| IC | SSD1306 |
| Dimensions | 18.52x7.04x1.227mm |
| Viewing area | 12.46x4.14mm |
| IC packaging | COG |
| Operating voltage | 1.65v-3.5v |
| Viewing range | Free |
| Interface | I²C interface |
| Brightness | 190cd/m2 |
| Connection method | FPC |
| Operating temperature | -40℃~70℃ |
| Storage temperature | -40℃~85℃ |
