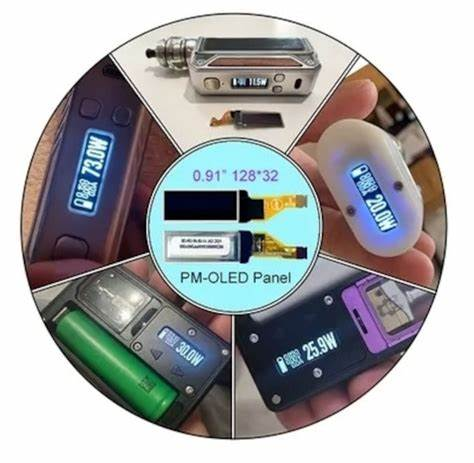

This product is a mini OLED display with a resolution of 128×32 pixels, an I2C interface, and a brightness of 150cd/m². It operates within a temperature range of-40℃ to 70℃ and features ultra-low power consumption, high contrast, and a wide viewing angle. The display content is clear and prominent. It is widely used in applications such as pulse oximeters, paint film testers, flow meters, gas detectors, and temperature and humidity monitors.
EASTERN DISPLAY offers a variety of small and medium-sized OLED displays to customers both domestically and internationally. These displays come in multiple colors, including white, yellow, red, blue, and circular OLEDs. They also offer options for FPC insertion and welding, with the insertion feature allowing direct soldering to PCBs without the need for connectors, ensuring a stable and reliable installation. All materials comply with RoHS standards and are widely used in fire hoses, smart home appliances, various measuring instruments, and intelligent devices.
| manufacturer | Eastern Display |
| Display type | OLED |
| resolution ratio | 128*32 |
| display color | White/blue |
| IC | SSD1306 |
| outline dimension | 30.0×11.50×1.2mm |
| Field of view size | 22.384×5.584mm |
| IC packaging method | COG |
| working voltage | 1.65v-3.5v |
| Visible range | Free |
| joggle | I²C |
| luminance | 150cd/m2 |
| attended mode | FPC |
| working temperature | -40℃~70℃ |
| storage temperature | -40℃~80℃ |
