Product description: An i2c oled display with a resolution of 128*64 and an I2C interface. The product has ultra-low power consumption, ultra-high contrast and viewing angle, and an ultra-wide operating temperature range of -40 to 70 degrees Celsius. EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers. There are a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and round OLED. FPC plug-in and welding are optional. Plug-in can be directly welded to PCB for use without connectors, which is stable and reliable. All materials meet environmental protection requirements RoHS standards and are widely used ...

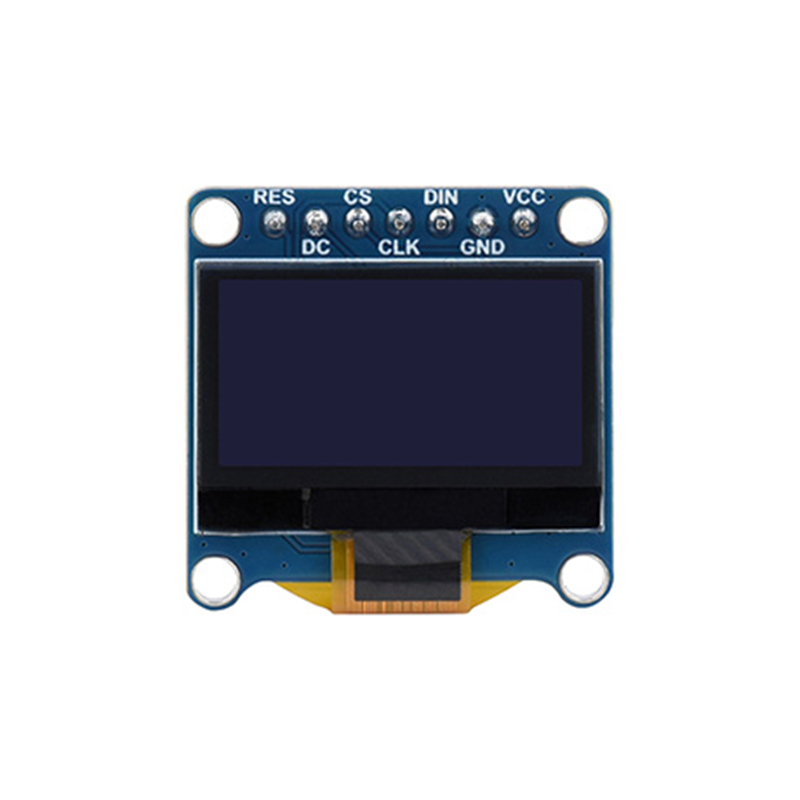

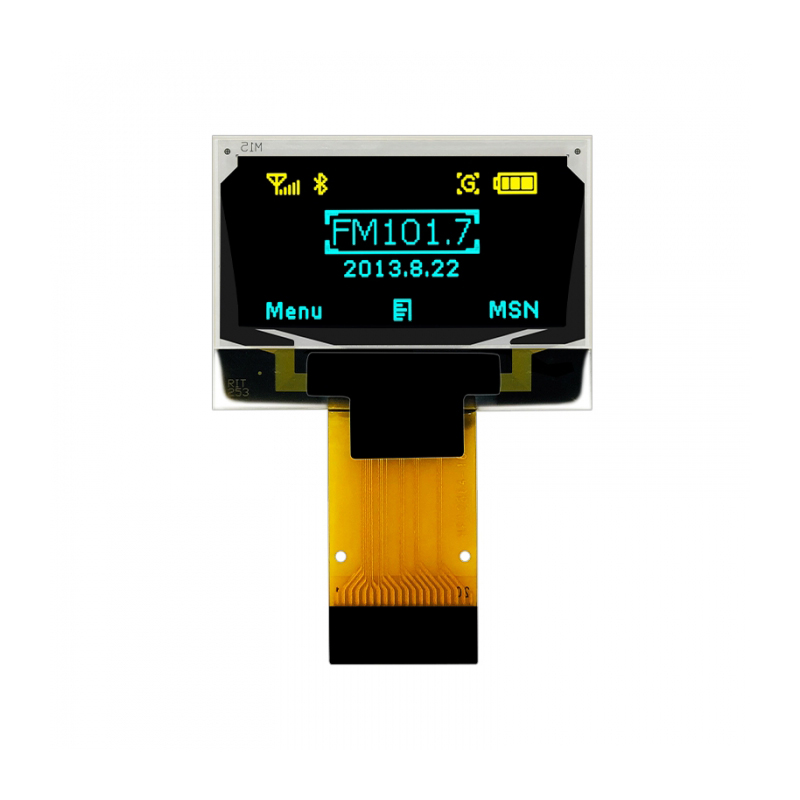

An i2c oled display with a resolution of 128*64 and an I2C interface. The product has ultra-low power consumption, ultra-high contrast and viewing angle, and an ultra-wide operating temperature range of -40 to 70 degrees Celsius.
EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers. There are a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and round OLED. FPC plug-in and welding are optional. Plug-in can be directly welded to PCB for use without connectors, which is stable and reliable. All materials meet environmental protection requirements RoHS standards and are widely used in fire water cannons, smart home appliances, various measuring instruments, smart devices, etc.,
| Manufacturer | Eastern Display |
| Display type | OLED |
| Resolution | 128*64 |
| Display color | White/Blue |
| IC | SSD1306 |
| Dimensions | 26.7×19.2×1.4mm |
| Viewing area | 23.74×12.86mm |
| IC packaging | COG |
| Operating voltage | 1.65v-3.5v |
| Viewing range | Free |
| Interface | I²C |
| Brightness | 180cd/m2 |
| Connection method | FPC |
| Operating temperature | -40℃~70℃ |
| Storage temperature | -40℃~85℃ |
Special-shaped LCD is a non-traditional rectangular LCD display, usually designed into a circular, arc, triangle or other irregular shapes according to specific needs. This type of display has unique advantages in design and function, meeting the needs of some special fields.
Product description: LCD 12864 is widely used in industrial instruments, industrial c...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
Product description: HTN LCD products have high contrast, wide viewing angle, clear d...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: Compared with TN LCD, HTN LCD, STN LCD, and FSTN LCD, VA LCD has...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
This product is a 19264 LCD dot matrix display that can display graphics with 192 columns x 64 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background with high contrast and wide viewing angle. The module contains a driver chip and adopts a COB production process. It is connected to the main control MCU through an 8-bit parallel LCD interface and is used to display various images and texts.
Product description: This product is a high-definition large-size TFT screen, resolut...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
LCD segment display products are widely used in medical instruments such as blood glucose meters,...
Product description: Segment LCD is widely used in industrial instruments, industrial...
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through SPI interface/I2C interface/Parallel LCD interface to display various images and texts. The product comes with a resistive LCD touch screen.
VA LCD segment code products are upgraded products based on TN LCD technology. The contrast ratio can reach 120 and the wide temperature range is -45-90℃. The basic version of VALCD displays black background and white characters. If it is matched with the corresponding silk-screen color or color film, it can show the effect of TFT color screen and can also be used with TFT screen. It has micro-ampere low power consumption and can be powered by solar cells. Special shapes can meet customers’ special shape requirements.
