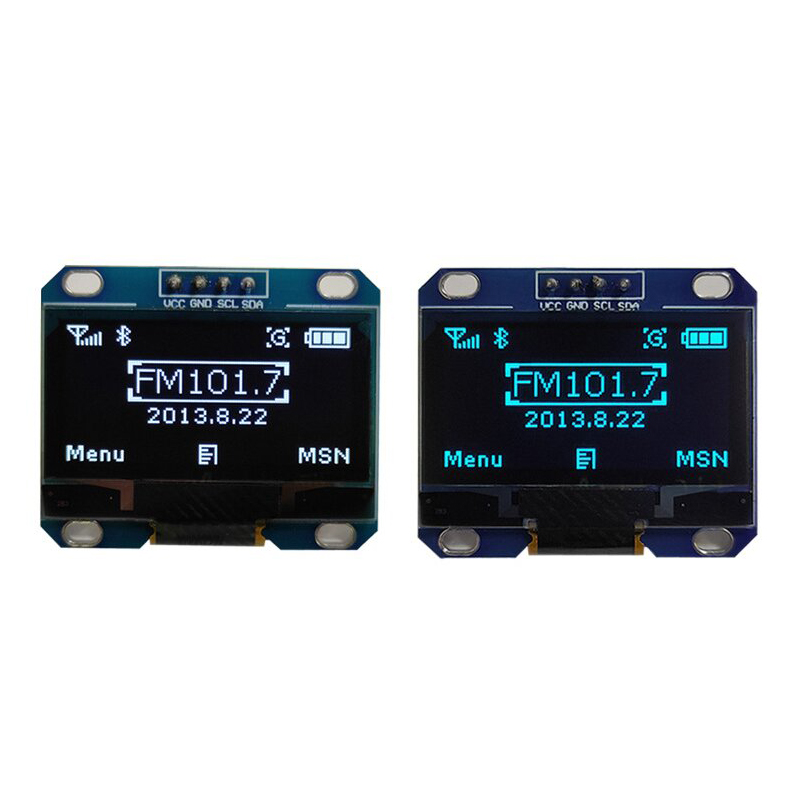

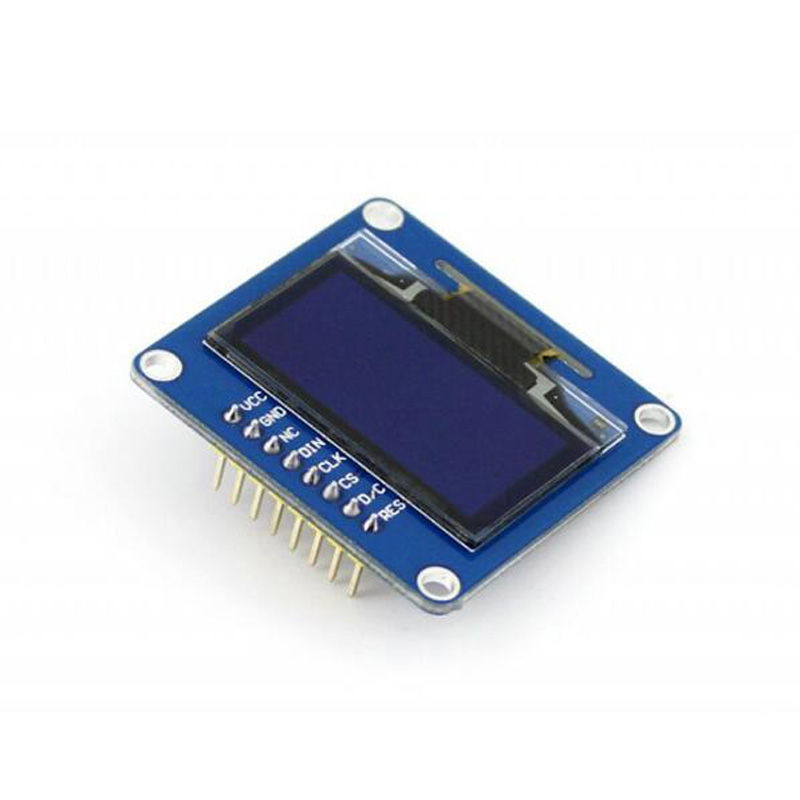

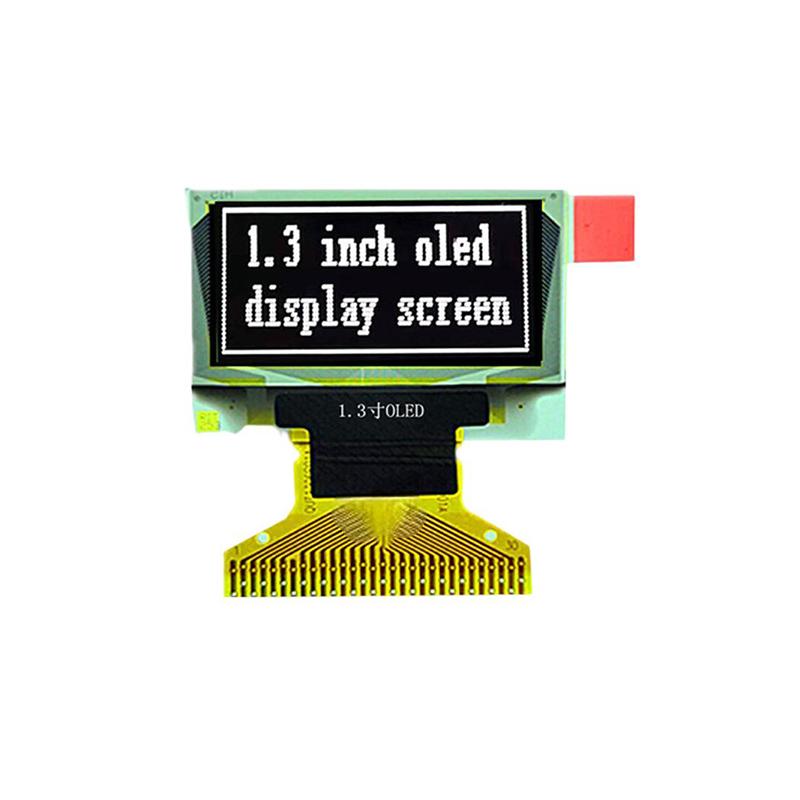

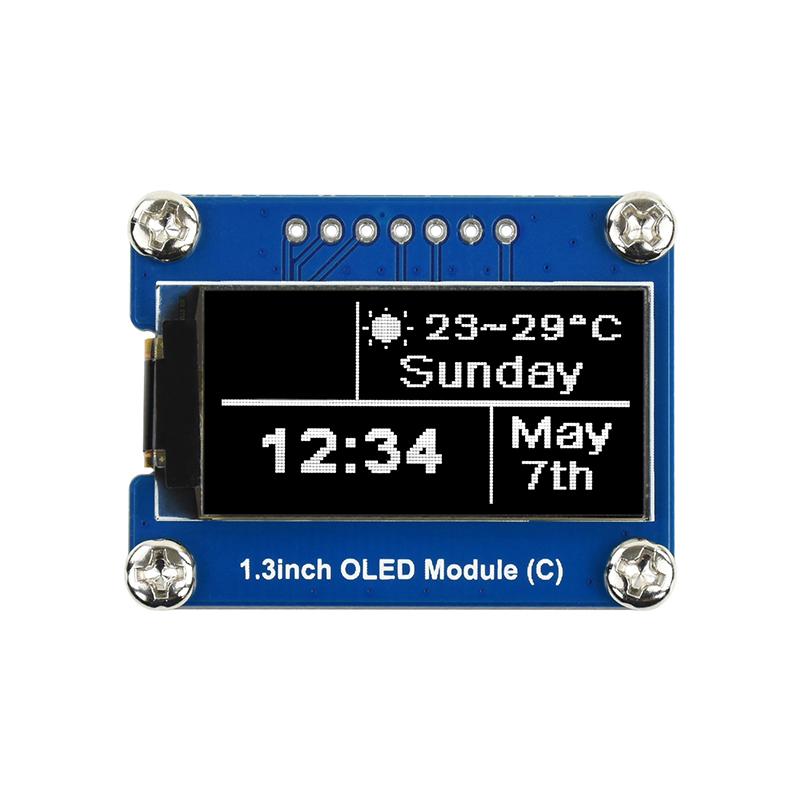

The 1.3‑inch OLED display features an ultra‑thin profile, high contrast ratio, and wide viewing angles. It adopts self‑emissive technology, requiring no backlight, which results in extremely low power consumption, and supports a wide temperature operation range from -40 ℃ to 70 ℃. The module is equipped with standard SPI/I2C interfaces, making it compatible with mainstream microcontrollers. It is widely used in applications such as smart wearable devices, industrial instrumentation, portable medical equipment, and smart home control panels.
EASTERN DISPLAY specializes in providing PMOLED and AMOLED display solutions ranging from 0.31 inches to 3.12 inches for the global industrial and consumer electronics markets. Our products are designed from the outset to meet the high standards of performance, reliability, and compliance demanded by the market.
1，Superior Display Performance
Our products deliver ultra-high contrast ratios, ensuring crisp legibility of text and graphics under all lighting conditions. With viewing angles exceeding 160°, they meet the needs of multi-angle observation. They also support wide-temperature operation, making them suitable for stable display performance in outdoor equipment and industrial environments.
2，Enhanced Reliability Design
All modules feature reinforced encapsulation technology to ensure stable operation in harsh environments. The product lifespan exceeds 50,000 hours (measured until brightness decays to 50% of its initial value at room temperature). They also support a wide input voltage range (3.0V–5.5V), adapting to complex power environments.
3. Flexible Interface & Power Optimization
Supports standard SPI/I2C interfaces for compatibility with mainstream microcontroller architectures. Power efficiency can be further optimized through software-adjustable brightness. Two FPC connection options are offered: a plug-in version for direct interfacing with the PCB, and a solderable version that eliminates connector cost and enhances structural stability.
4，Compliance & Customization Services
All materials comply with RoHS/REACH standards. We offer flexible customization of parameters such as FPC length/bending angle and interface protocols, helping customers accelerate product integration.
Our OLED displays are widely used in smart home appliances, industrial instrumentation, measurement equipment, portable wearables, and other fields. We provide customers with highly reliable, easy-to-integrate, and environmentally compliant display solutions.
| Manufacturer | Eastern Display |
| Display type | OLED |
| Resolution | 128x64 |
| Dot color | White |
| Driver chip model | SH1106 |

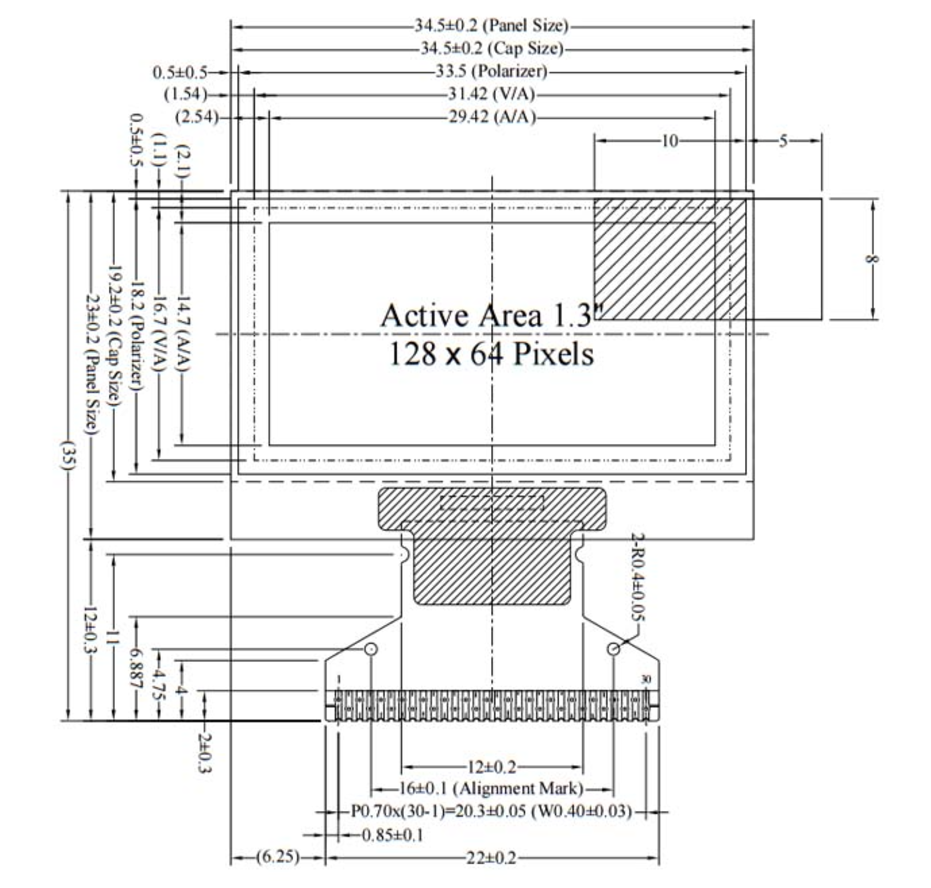

| Panel size | 34.5×23×1.4mm |
| Active area | 31.42*16.7mm |
| Operating voltage | 1.65v-3.5v |
| Viewing range | Free |
| Interface | Parallel/I²C/4-wireSPI |
| Brightness | 100cd/m2 |
| Connection | FPC |
| Operating temperature | -40℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Lifetime | 50000H |
