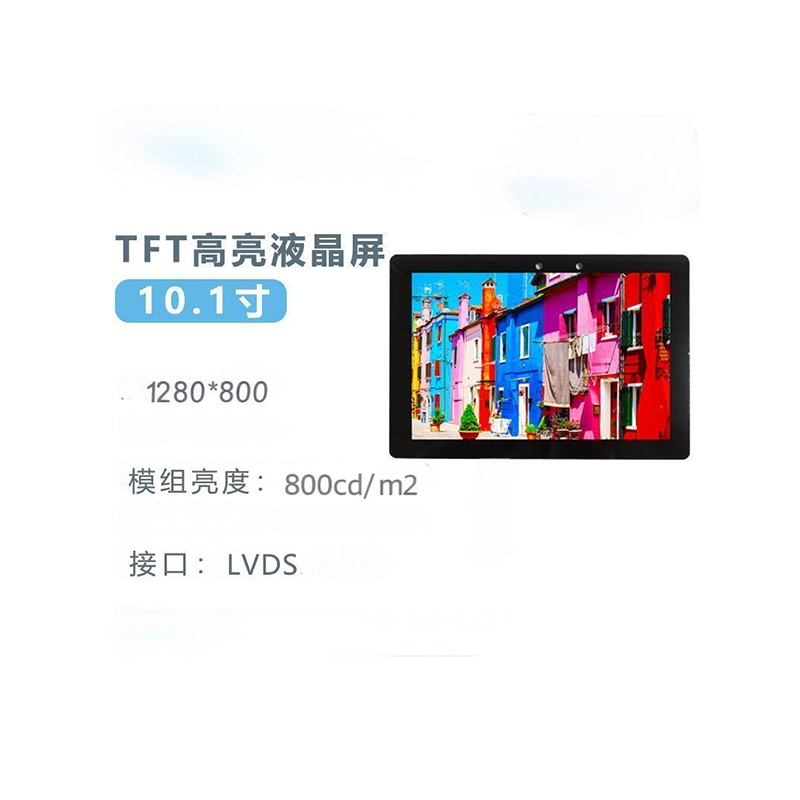

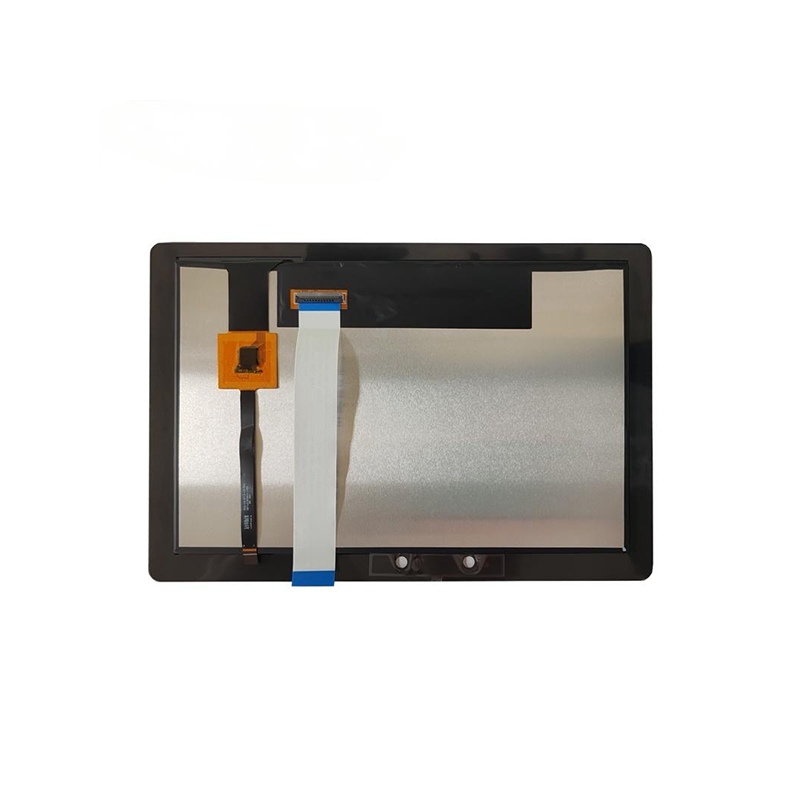

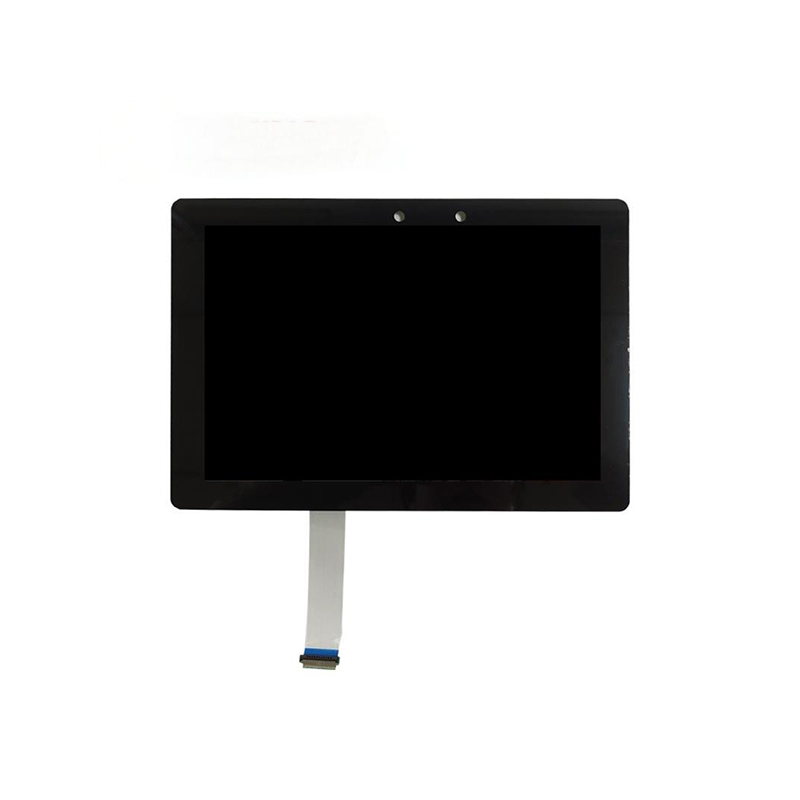

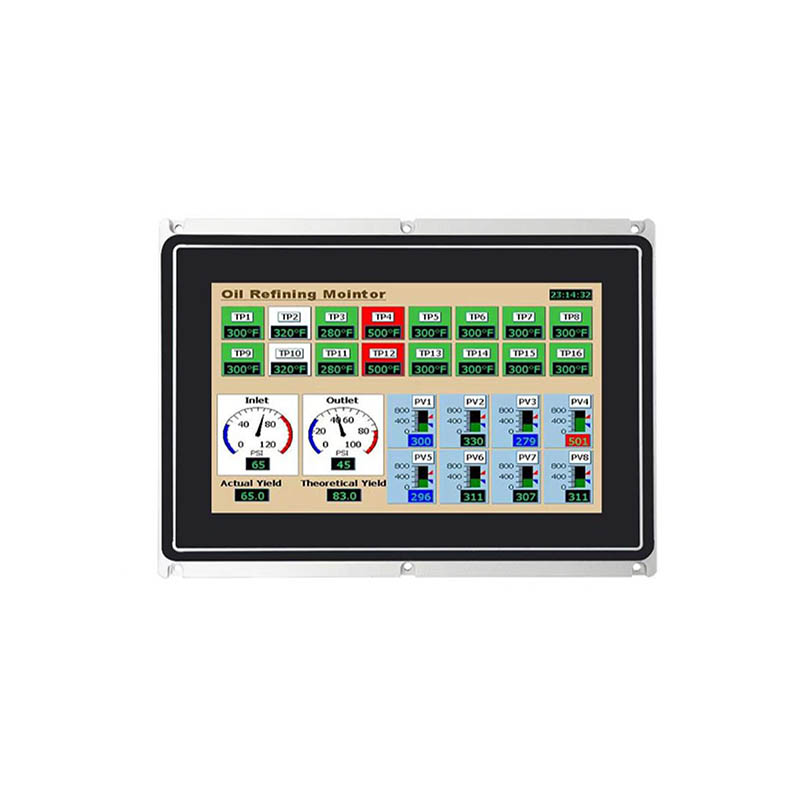

This large-format TFT display features a 1280×800 resolution, LVDS interface, and IPS full-view screen with 800cd/m² LED backlighting. Maintains clarity in bright environments while operating across-20℃ to 70℃ temperature ranges. The capacitive touch panel and tempered glass cover meet stringent manufacturing requirements, making it ideal for HMI systems, medical devices, analytical instruments, environmental monitoring equipment, and process control instruments.
EASTERN DISPLAY ─ Global Display Solution Expert✅ Trusted Choice for Multinational Clients. Serving clients in China, Germany, the United States, Poland, and over 20 other countries, we provide more than 1,000 customized TFT display solutions✅ All products meet stringent environmental standards and have passed RoHS/REACH certification.
✅ Provide precise adaptation capability 2.
Full size coverage of 0-15.6" with resolution 240× 320 to 1920× 1080 optional. ✅ Customization services are provided:
We can provide the following customized services for customers:
1，Customizable backlight brightness.
2，Plate thickness, shape and screen printing are optional.
3，Steel cover plate AR/AG/AF treatment.
4，OCA/OCR full fit service
5，Customization of shell structure.
6，RTP/CTP optional.
7，IP65 protection class is optional.

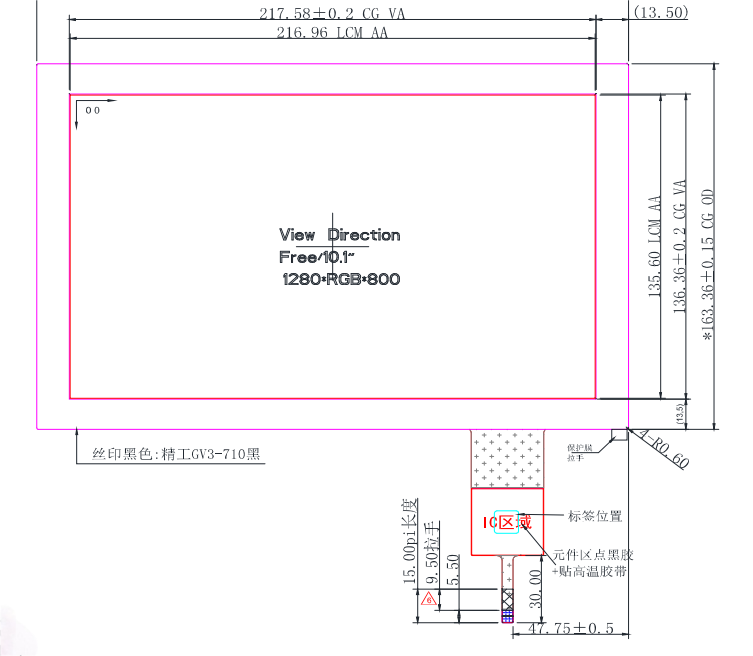

| Manufacturer | Eastern Display |
| Product model | EDT101HSICX-159 |
| Resolution | 1280*800 |
| Interface | LVDS |
| Driver chip model | |
| Connection method | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Brightness | 800cd/m2 |
| Operating temperature | -30-80℃ |
| Storage temperature | -40-85℃ |
| Cover panel | Provide customized services such as AF/AG/AR. |
Product description: TN LCD is widely used in industrial instruments, industrial cont...
Anti-static LCD screens are essential for automotive, industrial control, and mobile applications where LCD displays must withstand complex and dynamic environments with stringent electrostatic requirements—significantly higher than those for consumer electronics. Specific anti-static standards include contact discharge resistance typically rated at ±4kV, ±6kV, or ±8kV, while air discharge resistance ranges from ±8kV, ±15kV, to ±25kV.
Product description: HTN LCD types are widely used in industrial instruments, industr...
An i2c OLED display with a resolution of 128*32, I2C interface, ultra-low power consumption, ultra-high contrast and viewing Angle, and a wide operating temperature range of-40 to 70 degrees Celsius.
This product is an LCD 16×2 character dot matrix display module, which is used for ASCII character display, with 2 lines and 16 characters each. The display screen uses STN yellow-green mode LED backlit LCD, which displays black characters on a yellow-green background, with high contrast and wide viewing angle. The module contains the ST7066 universal character driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface, which is easy to use.
Product description: This product is an industrial TFT display with a resolution of 8...
Segment display is widely used in industrial instruments, industrial control equipment and commun...
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
Product description: This product is a high-definition large-size TFT screen, resolut...

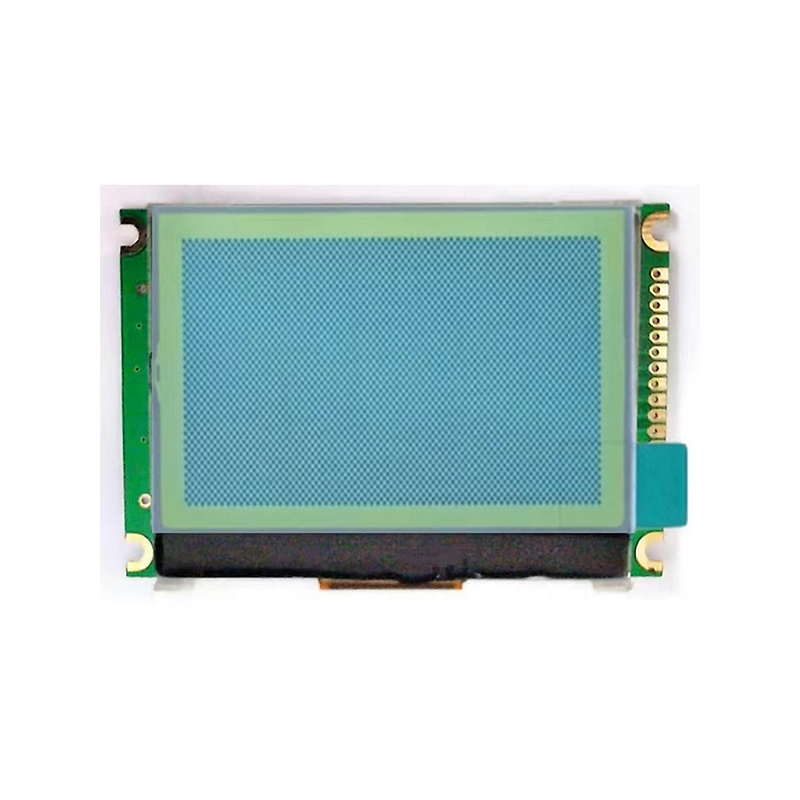

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
