Product description: This product is a high-definition automotive instrument large-size TFT screen, resolution 1920*720, LVDS interface, IPS full-view screen, LED Backlight 800cd/m2, still maintains clear visibility in strong light environment, supports -30℃~85℃ wide temperature operation, compatible with complex electromagnetic environment, meets the harsh conditions of the automotive industry, and is widely used in heavy trucks, light trucks, buses, new energy passenger cars and other automotive front-mounted instruments. EASTERN DISPLAY ─ Global display solution expert ✅ Trusted choice of multinational customers Serving customers in 20+ countries including China, Germany, the U...

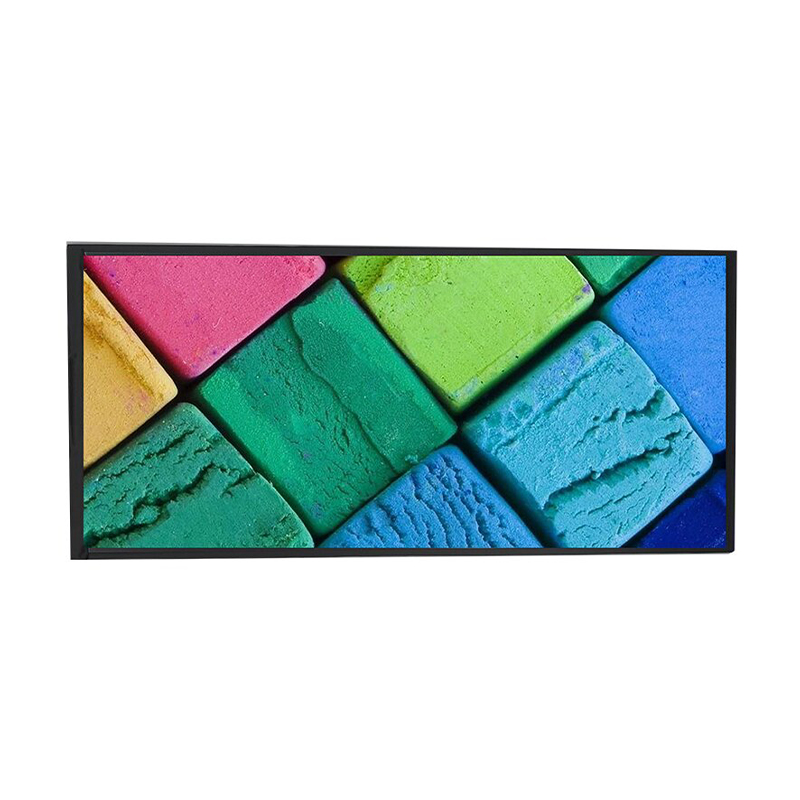

This product is a high-definition automotive instrument large-size TFT screen, resolution 1920*720, LVDS interface, IPS full-view screen, LED Backlight 800cd/m2, still maintains clear visibility in strong light environment, supports -30℃~85℃ wide temperature operation, compatible with complex electromagnetic environment, meets the harsh conditions of the automotive industry, and is widely used in heavy trucks, light trucks, buses, new energy passenger cars and other automotive front-mounted instruments.
EASTERN DISPLAY ─ Global display solution expert
✅ Trusted choice of multinational customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions
✅ Strict environmental standards
All products are RoHS/REACH certified.
✅ Precise adaptation capability
Provide 2.0"-15.6" full-size coverage, with optional resolutions of 240×320 to 1920×1080.
✅ Provide customized services:
The following customized services can be provided to customers:
1. Customized backlight brightness.
2. Optional cover thickness, shape and silk screen.
3. AR/AG/AF treatment of tempered cover.
4. OCA/OCR full lamination service
5. Customized shell structure.
6. RTP/CTP optional.
7. IP65 protection level optional.
| Manufacturer | Eastern Display |
| Product model | EDT103HSANX-39 |
| Resolution | 1920*720 |
| *272 interface | LVDS |
| Driver chip | HX82101A |
| Connection method | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 800cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-90℃ |
| Cover | Provide customized services such as AF/AG/AR |
