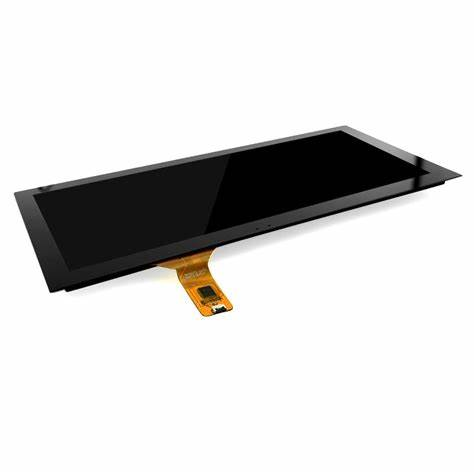

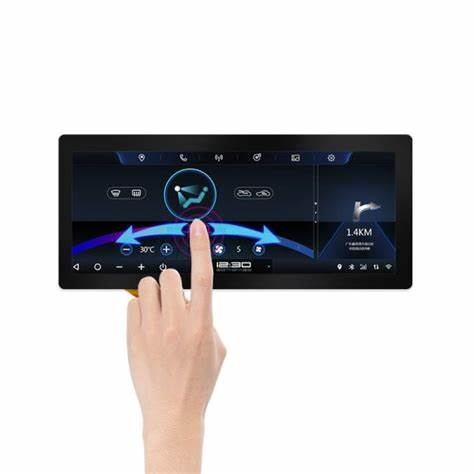

This product is a full-LCD automotive instrument cluster featuring a large-sized TFT screen with a resolution of 1920×720, an LVDS interface, an IPS wide-viewing-angle display, and an LED backlight with a brightness of 1000 cd/m². It maintains clear visibility even in bright light conditions. It supports wide temperature operation from -30°C to 80°C, is compatible with complex electromagnetic environments, and meets the stringent requirements of the automotive industry. It is widely used in the front-mounted instrument panels of heavy-duty trucks, light-duty trucks, buses, and new energy passenger vehicles.
EASTERN DISPLAY – Global Display Solutions Expert
✅ Trusted by multinational customers
Serving customers in over 20 countries, including China, Germany, the US, and Poland, with over 1,000 custom TFT display solutions.
✅ Strict environmental standards
All products are RoHS/REACH certified.
✅ Precise compatibility
Offering full-size coverage from 2.0“ to 15.6”, with resolution options ranging from 240×320 to 1920×1080.
✅ Customization Services:
We offer the following customization services:
1. Customizable backlight brightness.
2. Optional cover glass thickness, shape, and screen printing.
3. Tempered cover glass with AR/AG/AF treatment.
4. OCA/OCR full lamination service.
5. Customizable housing structure.
6. Optional RTP/CTP.
7. Optional IP65 protection rating.
| Manufacturer | Eastern Display |
| Product Model | EDT123HSLNH-01A |

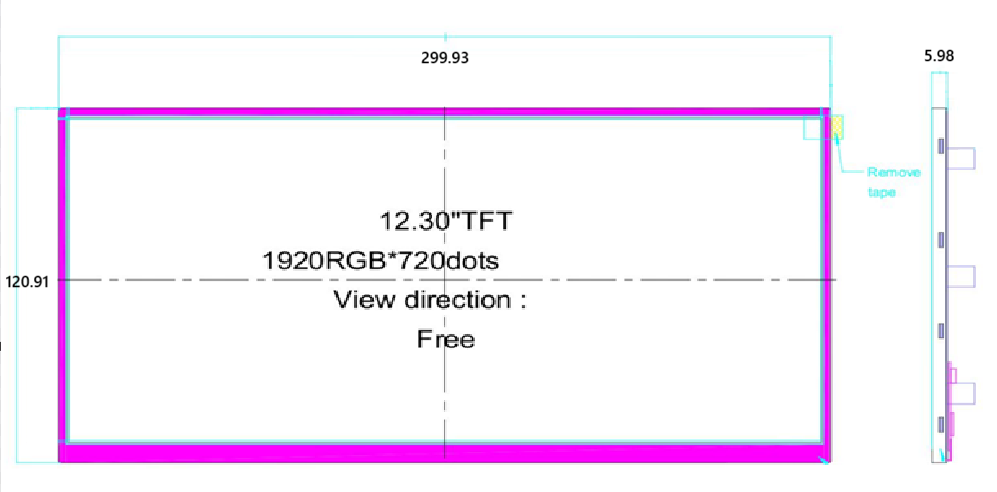

| Resolution | 1920*720 |
| *272 Interface | LVDS |
| Driver Chip | |
| Connection Method | FPC |
| Display Type | 16.7M color TFT display |
| Viewing Angle | Free |
| Operating Voltage | 3.3V |
| Backlight Type | LED backlight |
| Backlight Brightness | 1000cd/m2 |
| Operating Temperature | -30-80℃ |
| Storage Temperature | -40-85℃ |
| Cover plate | Provides customized services such as AF/AG/AR. |
