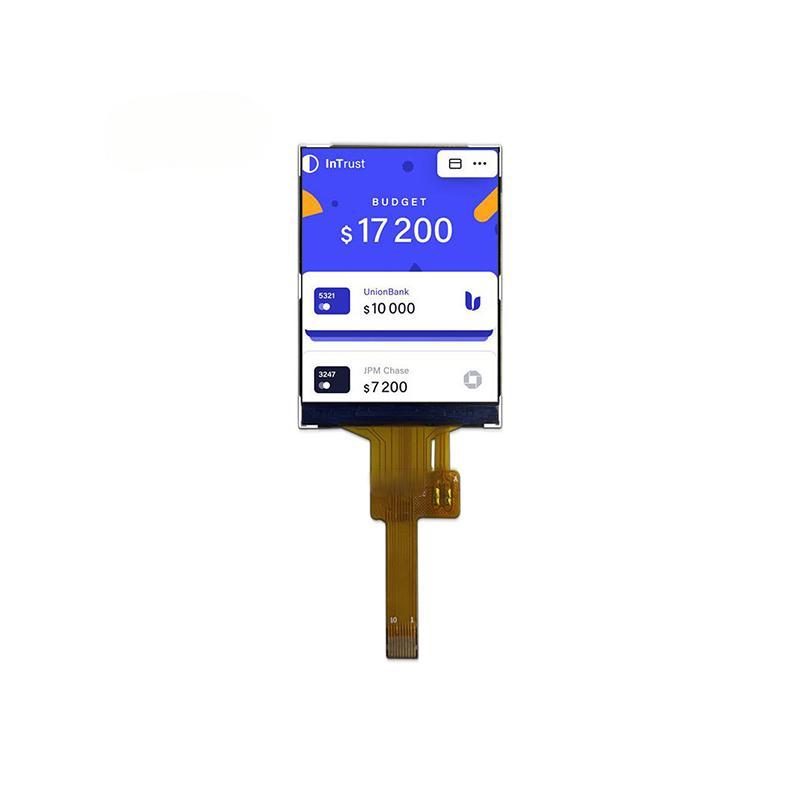

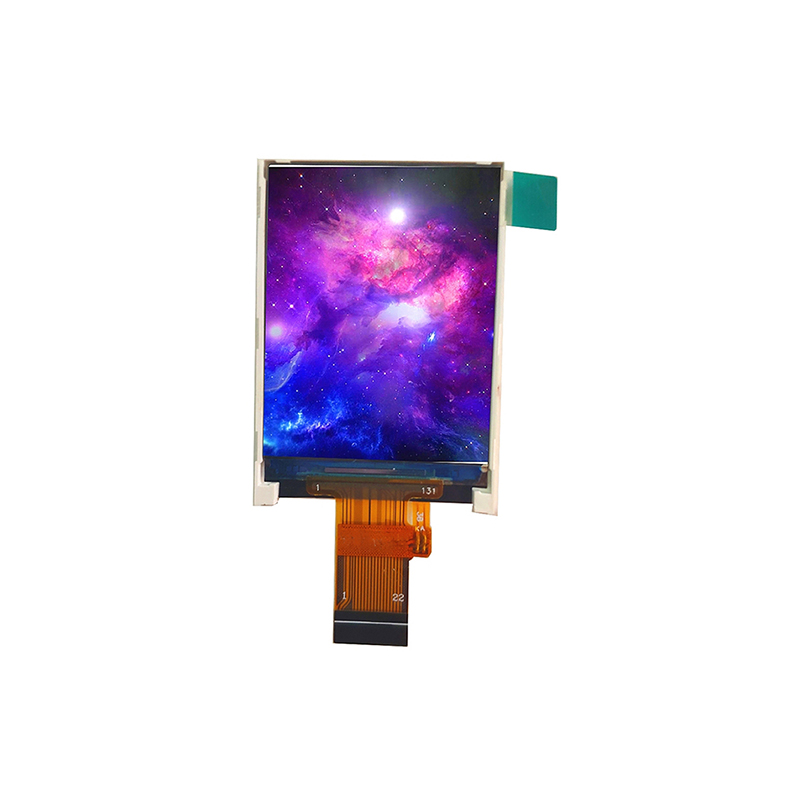

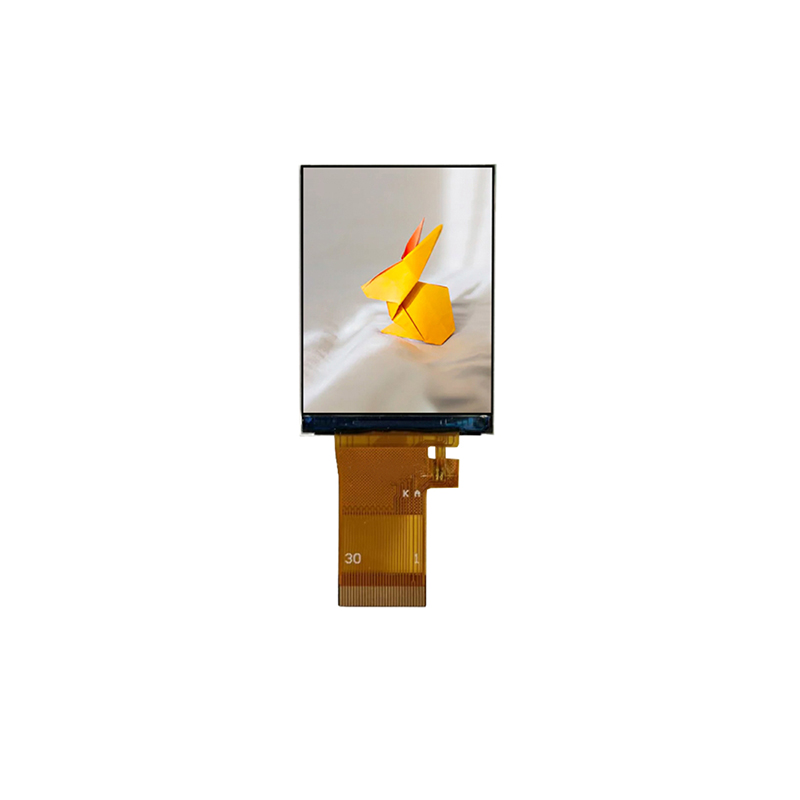

The 2-inch TFT display is a miniaturized TFT screen that supports high-resolution true-color reproduction and an ultra-wide viewing angle. Designed with low power consumption and featuring a standard SPI interface, it is commonly utilized in industrial control instruments such as thermostats, hazardous gas detectors, combustible gas alarms, concentration meters, digital anemometers, and more.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
✅ Trusted by Multinational Clients
We serve clients across 20+ countries including China, Germany, the USA, and Poland, having delivered 1,000+ customized TFT display solutions.
✅ Stringent Environmental Standards
All products comply with RoHS/REACH certifications.
✅ Precise Adaptation Capability
We offer a full-size range from 2.0" to 15.6", with resolutions selectable from 240×320 up to 1920×1080.
✅ Customization Services Available
We provide tailored solutions including:
1,Backlight brightness
2,Cover glass thickness and shape customization
3,Cover glass treatments: AR/AG/AF coating & tempering
4,OCA full lamination
5,TFT metal enclosures
6,Optional RTP/CTP (Resistive/Capacitive Touch Panel)
7,Optional IP65 protection rating

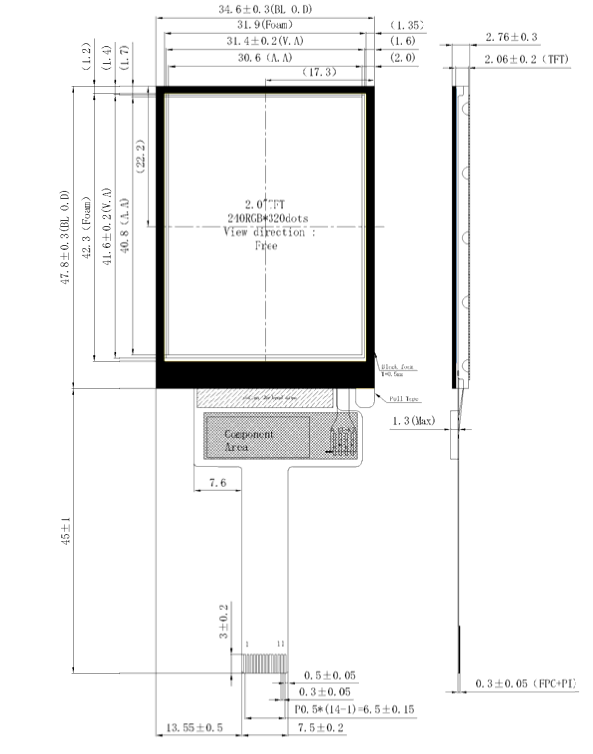

| Manufacturer | Eastern Display |
| Product model | EDT0200B10 |
| Resolution | 240*320 |
| Interface | SPI |
| Driver chip model | ST7789V-G4-A |
| Connection | FPC |
| Display type | 262k color TFT Display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED Backlight |
| Backlight brightness | 500cd/m2 |
| Operating temperature | -20-70℃ |
| Storage temperature | -30-80℃ |
| Cover | Provide customized services such as AF/AG/AR. |
| Lifetime | 50000H |
