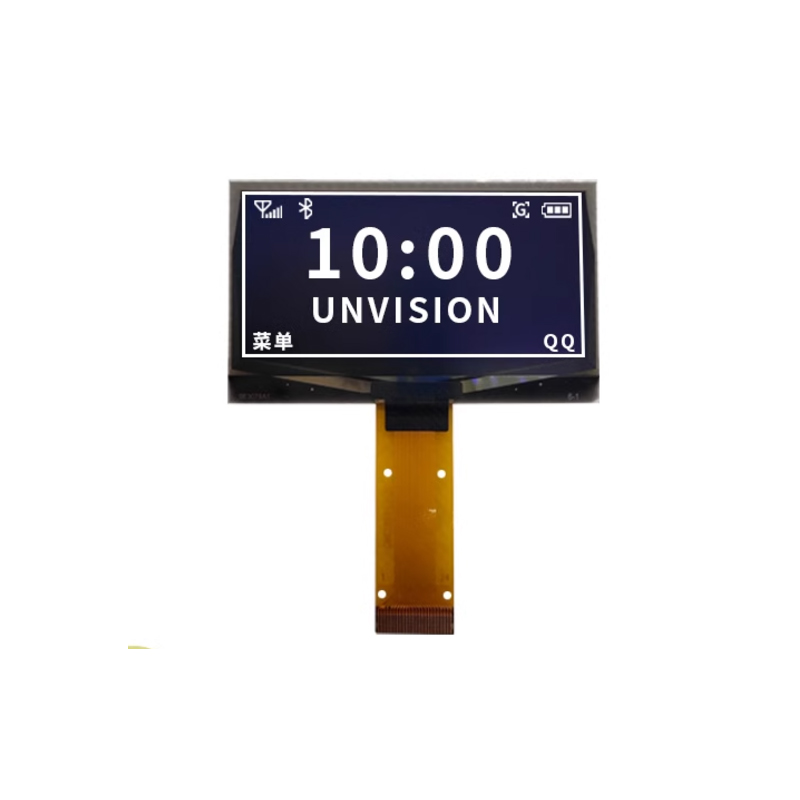

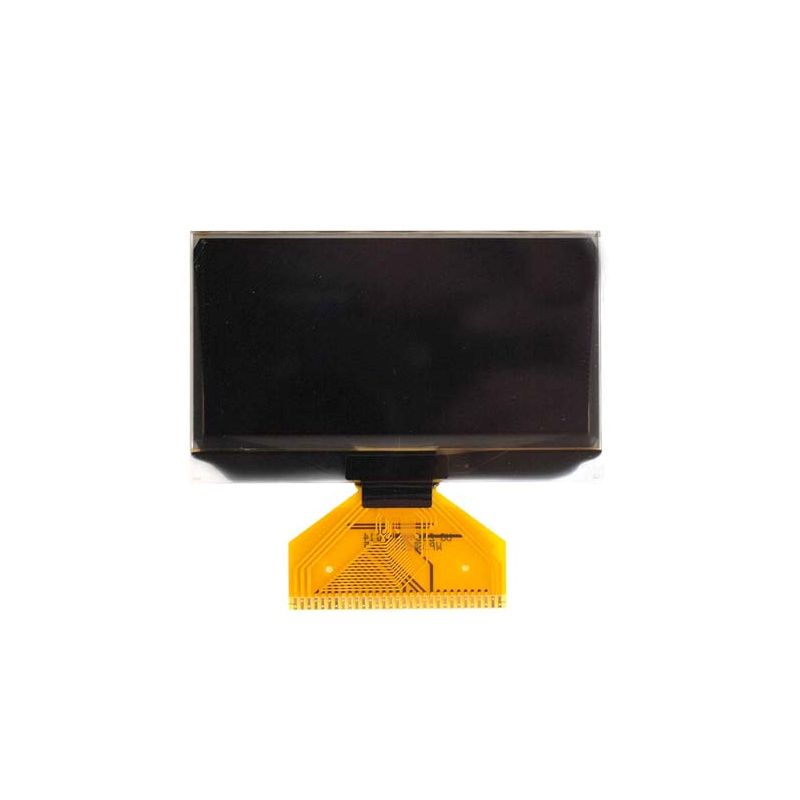

Product description: 2.4 inch OLED display, resolution 128*64, parallel port or I2C interface optional, product ultra-low power consumption, high contrast and viewing angle, meet -40 to 70 working temperature. Refresh rate: 100 frames/second. EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers. There are a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and round OLED. FPC plug-in and welding are optional. Plug-in can be directly welded to PCB for use without connectors, which is stable and reliable. All materials meet environmental protection requirements RoHS standards and are widely used in fire ...

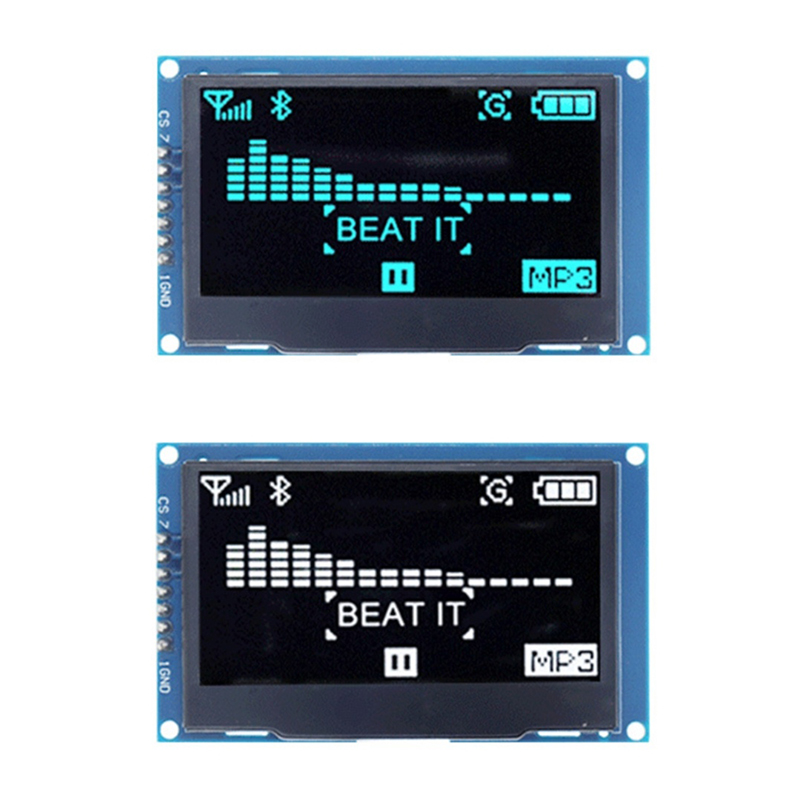

2.4 inch OLED display, resolution 128*64, parallel port or I2C interface optional, product ultra-low power consumption, high contrast and viewing angle, meet -40 to 70 working temperature. Refresh rate: 100 frames/second.
EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers. There are a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and round OLED. FPC plug-in and welding are optional. Plug-in can be directly welded to PCB for use without connectors, which is stable and reliable. All materials meet environmental protection requirements RoHS standards and are widely used in fire water monitors, smart home appliances, various measuring instruments, smart devices, etc.
| Manufacturer | Eastern Display |
| Display type | Monochrome OLED |
| Resolution | 128x64 |
| Display color | White |
| IC | SPD0301 |
| Dimensions | 60.50x37.00x2.00mm |
| Viewing area | 55.01×27.49mm |
| IC packaging | COG |
| Operating voltage | 1.65v-3.5v |
| Viewing range | Free |
| Interface | Parallel /I2C/ 4-wire SPI |
| Brightness | 90cd/m2 |
| Connection method | FPC |
| Operating temperature | -30℃~70℃ |
| Storage temperature | -40℃~85℃ |
Product description: VA LCD type is widely used in industrial instruments, industrial...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
Product description: Antistatic LCD is a liquid crystal display with antistatic funct...
Product description: HTN segment LCD is an improved product of TN segment LCD, with a...
COG segment LCD (Chip-on-Glass Segment Liquid Crystal Display) is a liquid crystal display technology that directly binds the driver chip (IC) to a glass substrate. It has the characteristics of high integration, light weight, low power consumption and low cost.

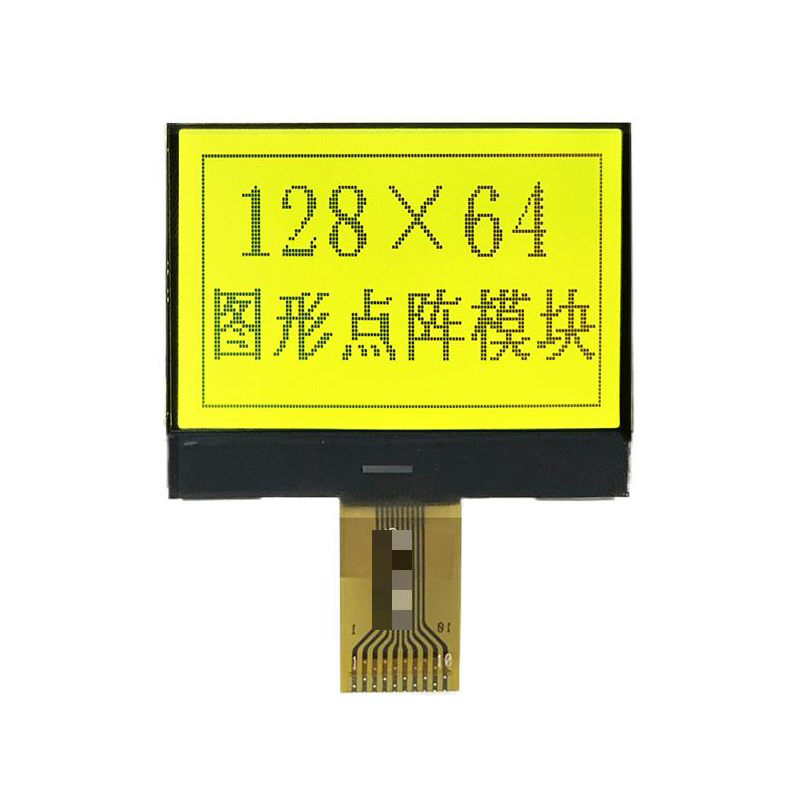

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses an STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and uses a COG production process. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU via the SPI interface and is used to display various images and texts.
Product description: Ultra-wide temperature LCD segment code screen is a kind of LCD ...

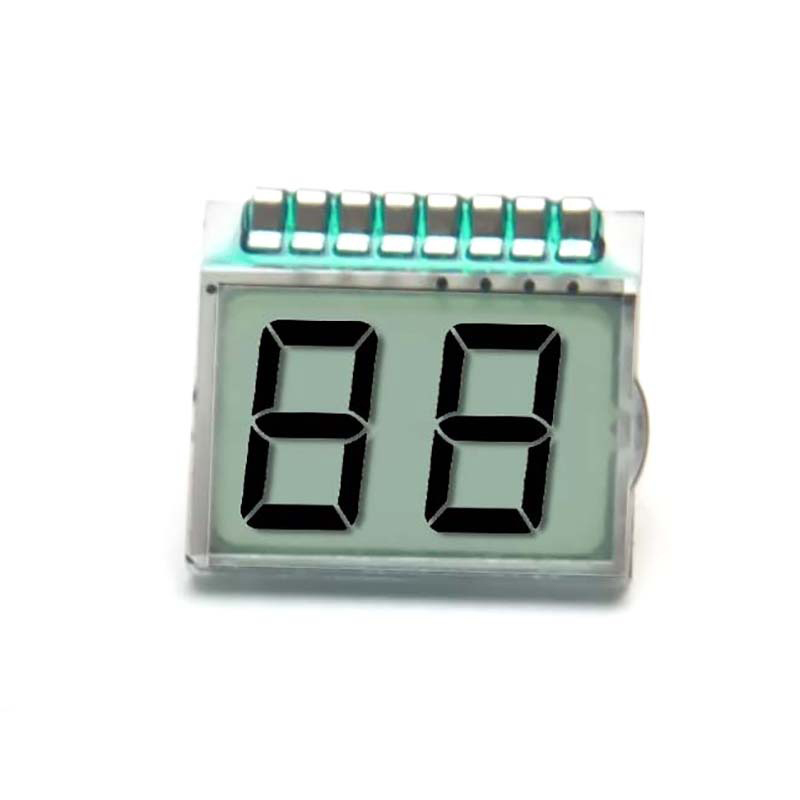

Product description: Ultra-small size segment LCD is a display technology widely used...

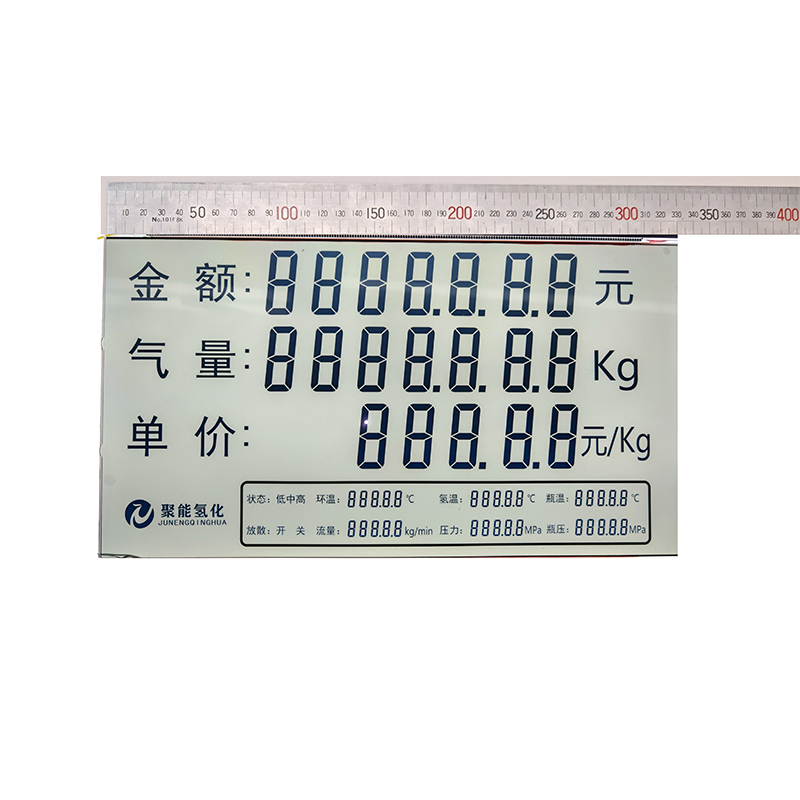

Product description: Super-large segment screens usually refer to LCD segment screens...
Product description: HTN LCD products have high contrast, wide viewing angle, clear d...
Product description: The LCD12864 product STN LCD type is widely used in flow meters,...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
Product description: Low-power segment LCD is a display technology widely used in ele...

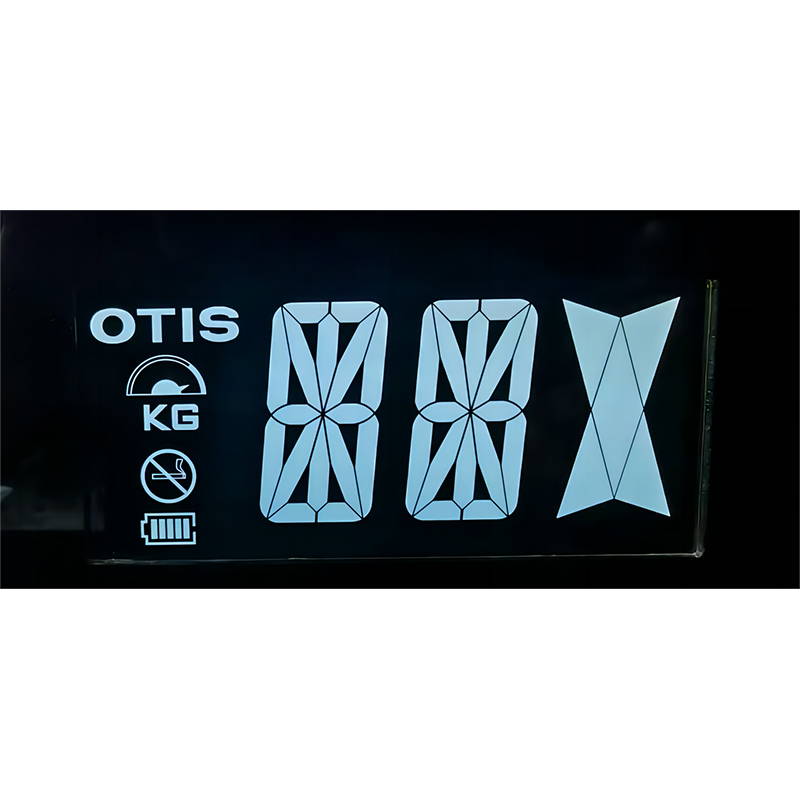

Product description: Compared with TN LCD, HTN LCD, STN LCD, and FSTN LCD, VA LCD has...
Product description: TN LCD is widely used in industrial instruments, industrial cont...

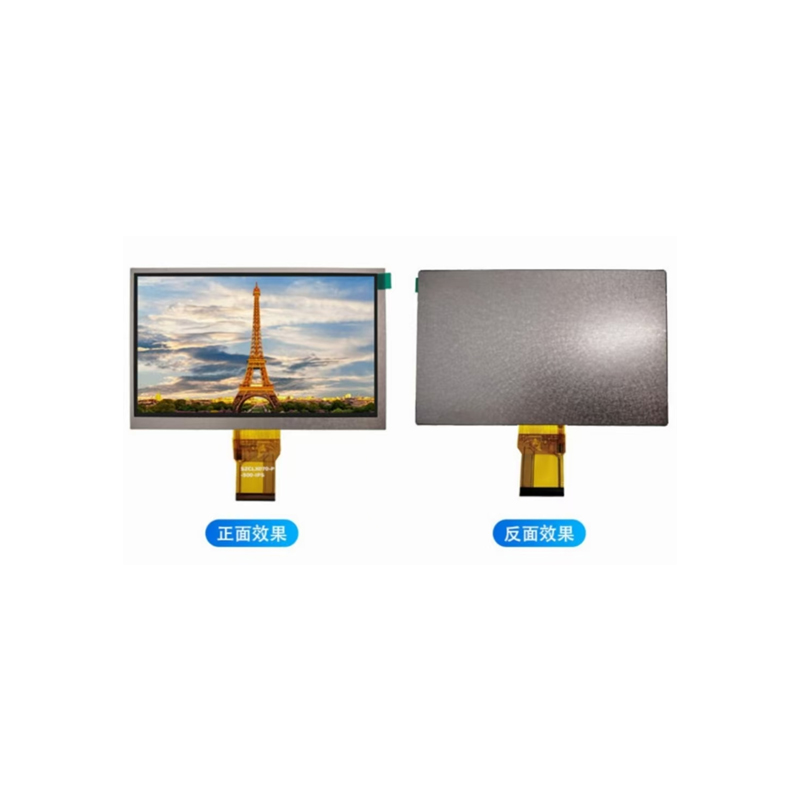

Product description: This product is a high-definition large-size TFT screen, resolut...
