Product description: Industrial OLED Display module, resolution 128*64, I2C interface, fast display response, supports -40℃~70℃ wide temperature operation, with ultra-low power consumption, high contrast and wide viewing angle. Widely used in scenarios such as blood oximeters, paint film meters, flow meters, gas detectors, temperature and humidity detectors. EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers, with a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and circular OLED. FPC plug-in and welding are optional. The plug-in can be directly welded to the PCB for use without a connector, w...

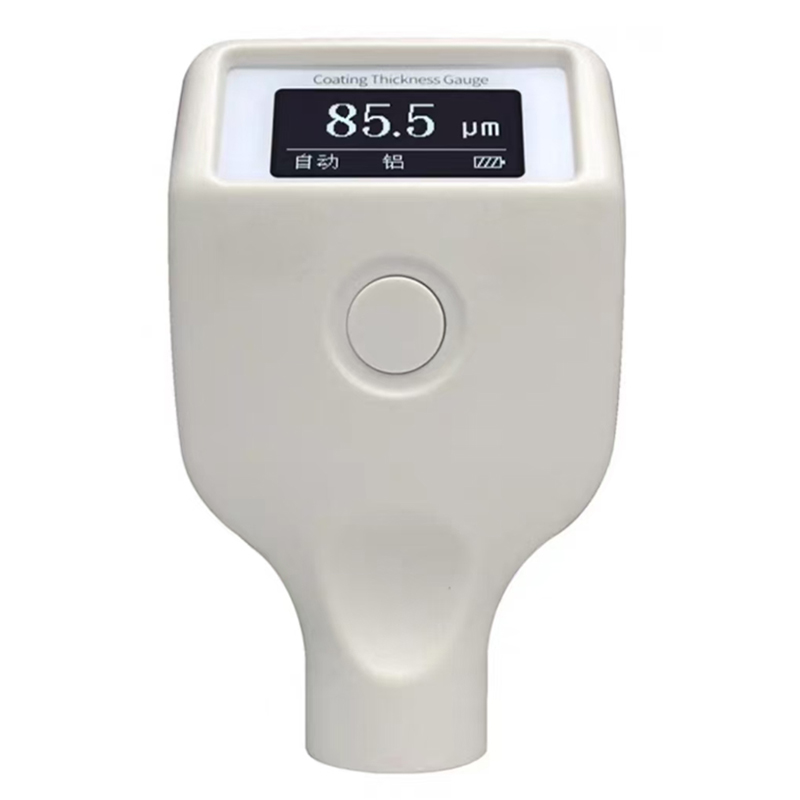

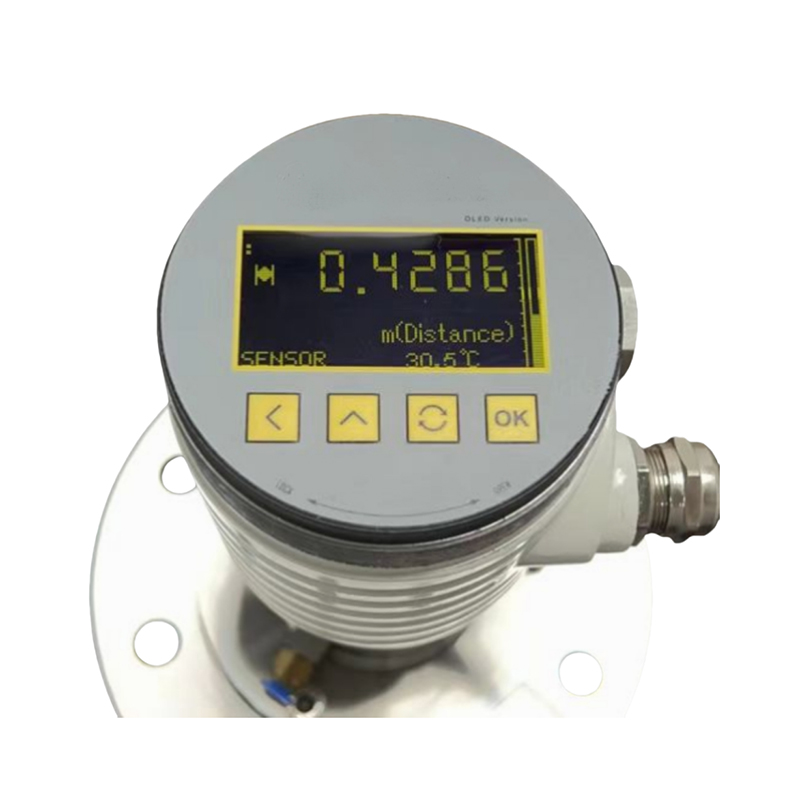

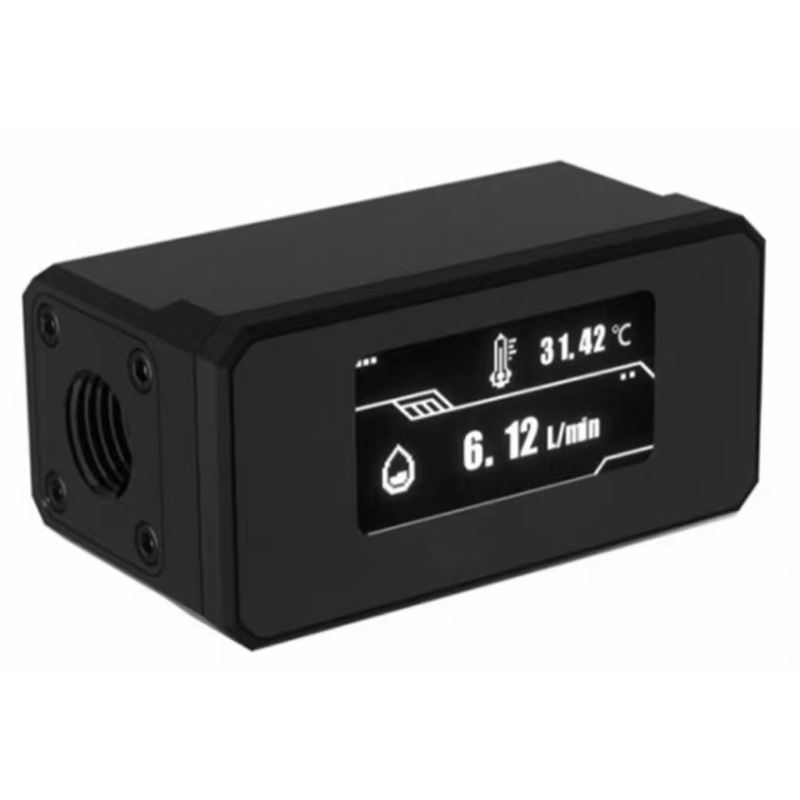

Industrial OLED Display module, resolution 128*64, I2C interface, fast display response, supports -40℃~70℃ wide temperature operation, with ultra-low power consumption, high contrast and wide viewing angle. Widely used in scenarios such as blood oximeters, paint film meters, flow meters, gas detectors, temperature and humidity detectors.
EASTERN DISPLAY provides small and medium-sized OLEDs for domestic and foreign customers, with a variety of display colors to choose from, including white OLED, yellow OLED, red OLED, blue OLED, and circular OLED. FPC plug-in and welding are optional. The plug-in can be directly welded to the PCB for use without a connector, which is stable and reliable. All materials meet the environmental protection requirements of RoHS standards and are widely used in fire water cannons, smart home appliances, various measuring instruments, smart devices, etc.
| Manufacturer | Eastern Display |
| Display type | Monochrome OLED |
| Resolution | 128x64 |
| Display color | White |
| IC | SPD0301 |
| Dimensions | 60.50x37.00x2.00mm |
| Viewing area | 55.01×27.49mm |
| IC packaging | COG |
| Operating voltage | 1.65v-3.5v |
| Viewing range | Free |
| Interface | Parallel /I2C/ 4-wire SPI |
| Brightness | 90cd/m2 |
| Connection method | FPC |
| Operating temperature | -30℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Keywords:amoled display/i2c oled display/flexible oled display/oled display 128x64/mini oled display/oled display module/esp32 oled display/round oled display. | |
Product description: This product is a high-definition large-size TFT screen, resolut...
Product description: This product is an industrial TFT display with a resolution of 8...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
This product is a 19264 LCD dot matrix display that can display graphics with 192 columns x 64 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background with high contrast and wide viewing angle. The module contains a driver chip and adopts a COB production process. It is connected to the main control MCU through an 8-bit parallel LCD interface and is used to display various images and texts.
Product description: Low-power segment LCD is a display technology widely used in ele...
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
Product description: The light source of the translucent LCD segment code LCD screen ...
Product description: Anti-UV LCD is a liquid crystal display specially designed to re...
FSTN is widely used in industrial instruments, industrial control equipment and communication equ...
This product is a 12232 LCD dot matrix display that can display graphics with 122 columns x 32 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
Product description: TN LCD is widely used in industrial instruments, industrial cont...
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
VA LCD segment code products are upgraded products based on TN LCD technology. The contrast ratio can reach 120 and the wide temperature range is -45-90℃. The basic version of VALCD displays black background and white characters. If it is matched with the corresponding silk-screen color or color film, it can show the effect of TFT color screen and can also be used with TFT screen. It has micro-ampere low power consumption and can be powered by solar cells. Special shapes can meet customers’ special shape requirements.
This product is a custom segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC.This type of LCD module has a wide range of operating temperatures, low power consumption, thin and light structure, good display effect, stable performance and other characteristics.
This product is a mini OLED display with a resolution of 128×32 pixels, an I2C interface, and a brightness of 150cd/m². It operates within a temperature range of-40℃ to 70℃ and features ultra-low power consumption, high contrast, and a wide viewing angle. The display content is clear and prominent. It is widely used in applications such as pulse oximeters, paint film testers, flow meters, gas detectors, and temperature and humidity monitors.
This product is a full-LCD automotive instrument cluster featuring a large-sized TFT screen with a resolution of 1920×720, an LVDS interface, an IPS wide-viewing-angle display, and an LED backlight with a brightness of 1000 cd/m². It maintains clear visibility even in bright light conditions. It supports wide temperature operation from -30°C to 80°C, is compatible with complex electromagnetic environments, and meets the stringent requirements of the automotive industry. It is widely used in the front-mounted instrument panels of heavy-duty trucks, light-duty trucks, buses, and new energy passenger vehicles.
