An I2C OLED display with a resolution of 128*64 and an I2C interface. Driver IC: SSD1309. The product features ultra-low power consumption, ultra-high contrast and viewing Angle, and an ultra-wide operating temperature range of-40 to 70 degrees Celsius.
Eastern Display provides small-to-medium OLED displays with multiple color options for domestic and international clients. Available in white, yellow, red, blue, and circular designs, these displays support both FPC (Flexible Printed Circuit) plug-in and soldering solutions. The plug-in option allows direct mounting on PCBs without connectors, ensuring secure and reliable installation. All materials comply with RoHS (RoHS Standard) environmental requirements, making them widely applicable in fire suppression systems, smart home appliances, precision measurement instruments, and intelligent devices.
| manufacturer | Eastern Display |
| Display type | OLED |
| resolution ratio | 128*64 |
| display color | White |
| IC | SSD1309 |

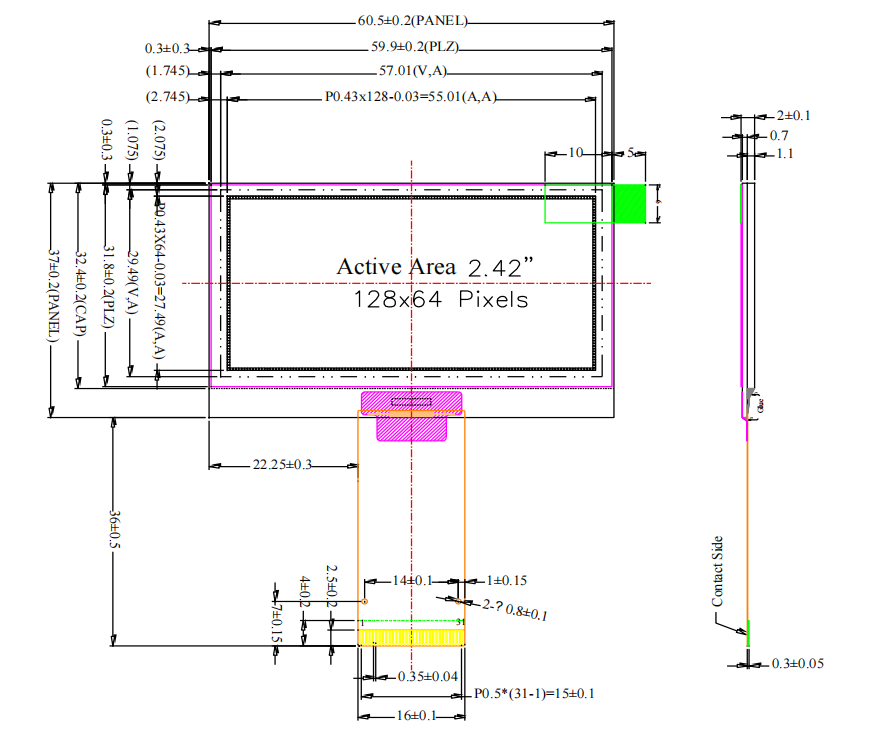

| outline dimension | 60.5×30×2mm |
| Field of view dimensions | 57×29.49mm |
| IC packaging mode | COG |
| working voltage | 1.65v-3.3v |
| Visible range | Free |
| joggle | I²C、SPI、Parallel Interface |
| luminance | 150cd/m2 |
| attended mode | FPC |
| working temperature | -40℃~70℃ |
| storage temperature | -40℃~80℃ |
