Product description: This product is a mini TFT display with a resolution of 320*480, which can be rotated to horizontal screen, with optional MCU interface and SPI interface. It is widely used in medical centrifuges, smart routers, communication equipment, smart home appliances, handheld instruments, etc. EASTERN DISPLAY ─ Global display solution expert✅ Trusted choice of multinational customersServing customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions✅ Strict environmental standardsAll products are RoHS/REACH certified.✅ Precise adaptation capabilityProvide 2.0″-15.6″ full-size...

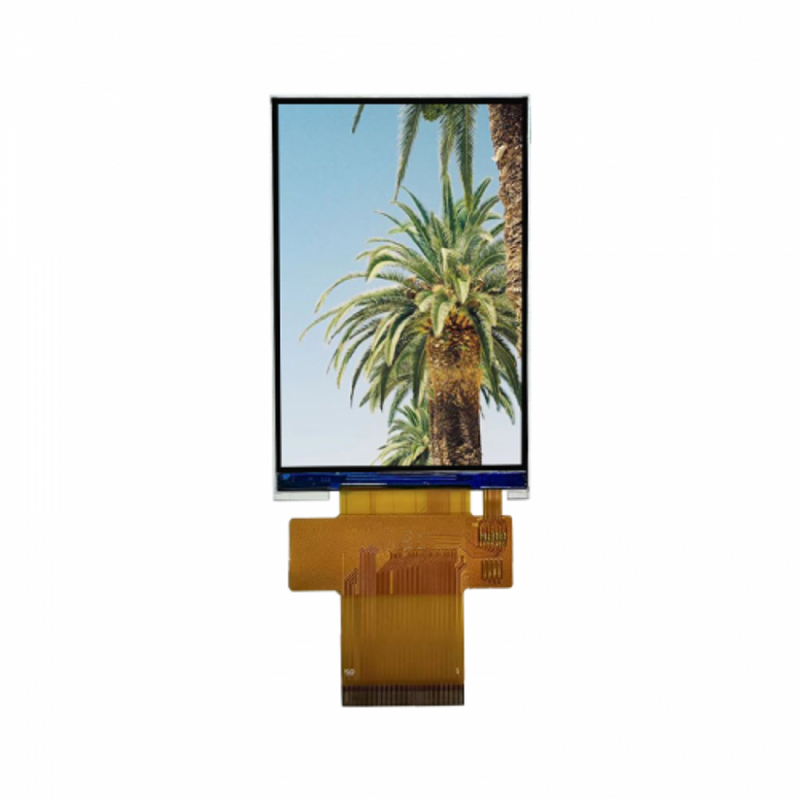

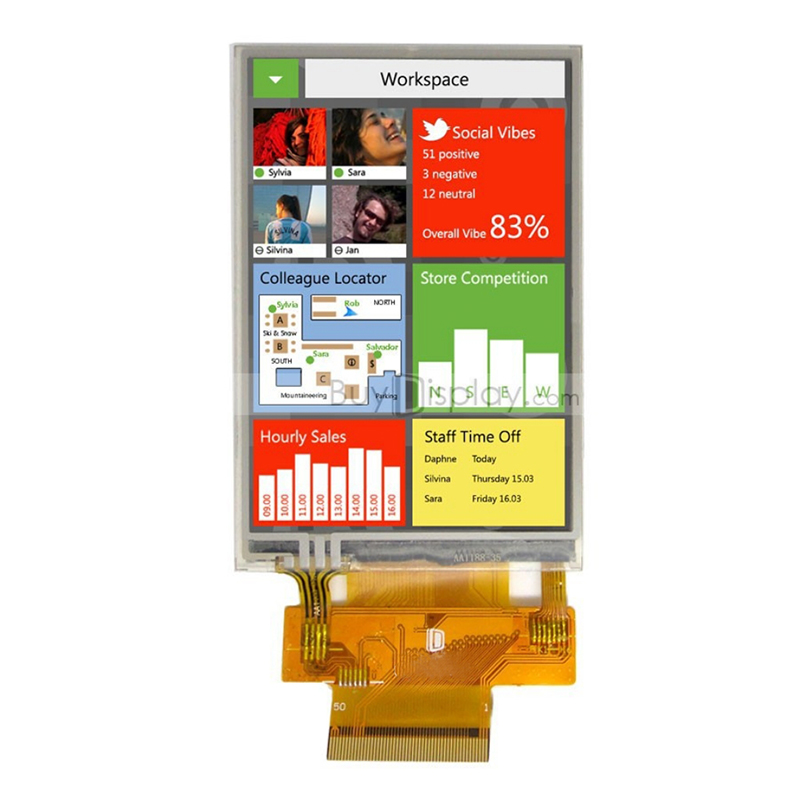

This product is a mini TFT display with a resolution of 320*480, which can be rotated to horizontal screen, with optional MCU interface and SPI interface. It is widely used in medical centrifuges, smart routers, communication equipment, smart home appliances, handheld instruments, etc.
EASTERN DISPLAY ─ Global display solution expert
✅ Trusted choice of multinational customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions
✅ Strict environmental standards
All products are RoHS/REACH certified.
✅ Precise adaptation capability
Provide 2.0"-15.6" full-size coverage, with optional resolutions of 240×320 to 1920×1080.
✅ Provide customized services:
The following customized services can be provided to customers:
1. Customized backlight brightness.
2. Optional cover thickness, shape and silk screen.
3. AR/AG/AF treatment of tempered cover.
4. OCA/OCR full lamination service
5. Customized shell structure.
6. RTP/CTP optional.
7. IP65 protection level optional
| Manufacturer | Eastern Display |
| Product model | EDT0350BLT-46 |
| Resolution | 320*480 |
| Interface | MCU interface/SPI interface |
| Driver chip | ILI9488 |
| Connection method | FPC |
| Display type | 262k colour tft display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED Backlight |
| Backlight brightness | 300cd/m2 |
| Operating temperature | -20-70℃ |
| Storage temperature | -30-80℃ |
| Cover | Provide customized services such as AF/AG/AR. |
