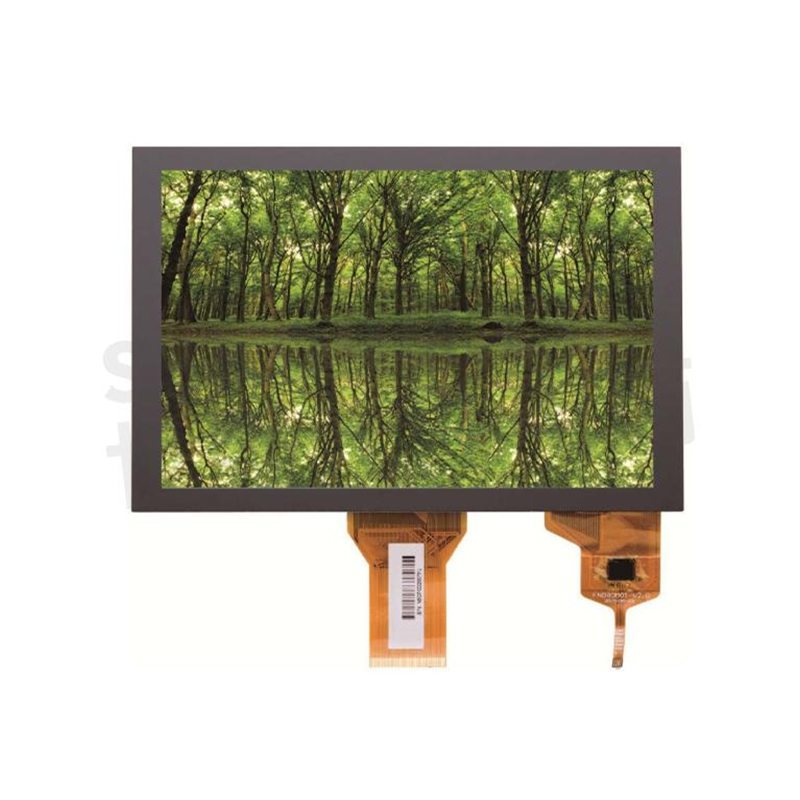

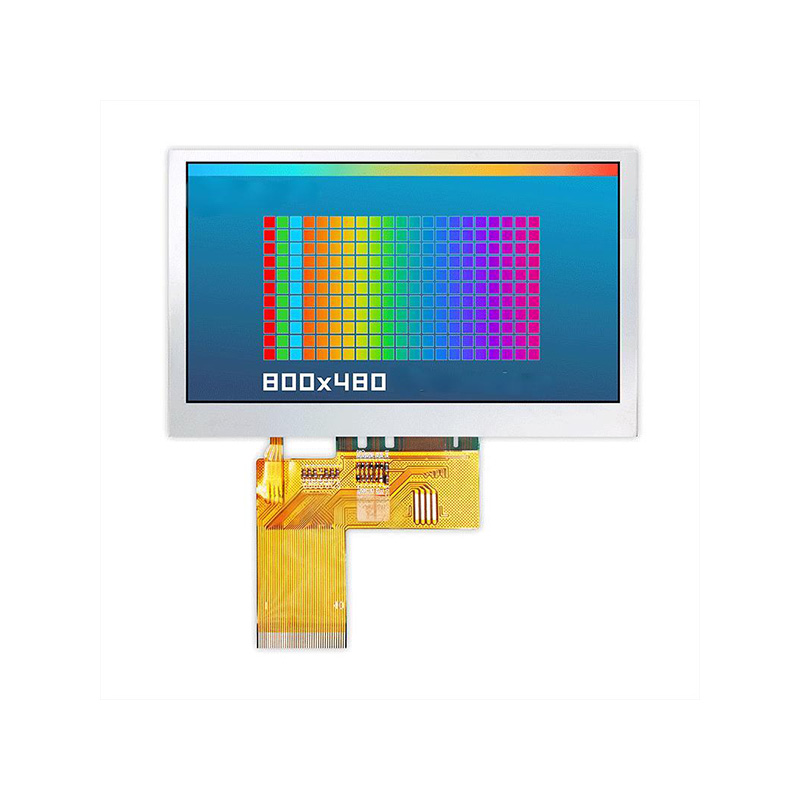

This compact TFT screen features an 800×480 resolution with an RGB interface and IPS full-view display. Powered by LED backlighting (800cd/m²), it delivers crystal-clear visibility even in harsh light conditions. Capable of operating across-30℃ to 80℃ temperature ranges, the device excels in complex electromagnetic environments while meeting stringent operational requirements. Widely used in flow meters, analyzers, VOC detectors, balances, ion counters, and other precision instruments.
EASTERN DISPLAY ─ Global display solutions expert
✅ Trust of multinational customers
We serve customers in China, Germany, the United States, Poland and other 20+ countries, and provide customers with more than 1000 customized TFT display solutions
✅ Strict environmental standards
All products are certified by RoHS/REACH.
✅ Precision adaptation capability
Provides full size coverage of 2.0 "to 15.6" with resolution options from 240x320 to 1920x1080.
✅ Provide customized services:
We can provide customers with the following customized services:
1，Customized backlight brightness.
2，Plate thickness, shape and screen printing are optional.
3，Steel cover plate AR/AG/AF treatment.
4，OCA/OCR full fit service
5，Customized shell structure.
6，RTP/CTP is optional.
7，IP65 protection class is optional.
| manufacturer | Eastern Display |
| product model | EDT043HSLNX-26 |
| resolution ratio | 800*480 |
| joggle | RGB |
| Driver chips | |
| attended mode | FPC |
| display type | 16.7M color TFT display |
| angle of view | Free |
| working voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 800cd/m2 |
| working temperature | -30-80℃ |
| storage temperature | -30-85℃ |
| blind flange | Provide customized services such as AF/AG/AR. |
COG segment LCD (Chip-on-Glass Segment Liquid Crystal Display) is a liquid crystal display technology that directly binds the driver chip (IC) to a glass substrate. It has the characteristics of high integration, light weight, low power consumption and low cost.
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: STN LCD type is widely used in industrial instruments, industria...
This product is a 19264 LCD dot matrix display that can display graphics with 192 columns x 64 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background with high contrast and wide viewing angle. The module contains a driver chip and adopts a COB production process. It is connected to the main control MCU through an 8-bit parallel LCD interface and is used to display various images and texts.
Fast response optical valve LCD can quickly change the light transmission state after receiving the signal, the response speed can reach 0.1 milliseconds (100 times faster than human blink); the product is thin and light, can achieve a thickness of 1.2 mm; the connection can be made into pins or FPC; can block infrared, ultraviolet.
Product description: FSTN LCD is widely used in industrial instruments, industrial co...
This product is a 12232 LCD dot matrix display that can display graphics with 122 columns x 32 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
LCD applied to the Rangefinder is the LCD display screen for the lens, which is characterized by small size, high contrast, shock resistance, durability and high environmental adaptability. High display accuracy requirements, to meet the requirements of magnification detection, magnification of 50 times after the display of smooth edges for the burr. The size of the product is small, and special fixtures and equipments are needed for bonding polarizer or chip and FPC crimping.

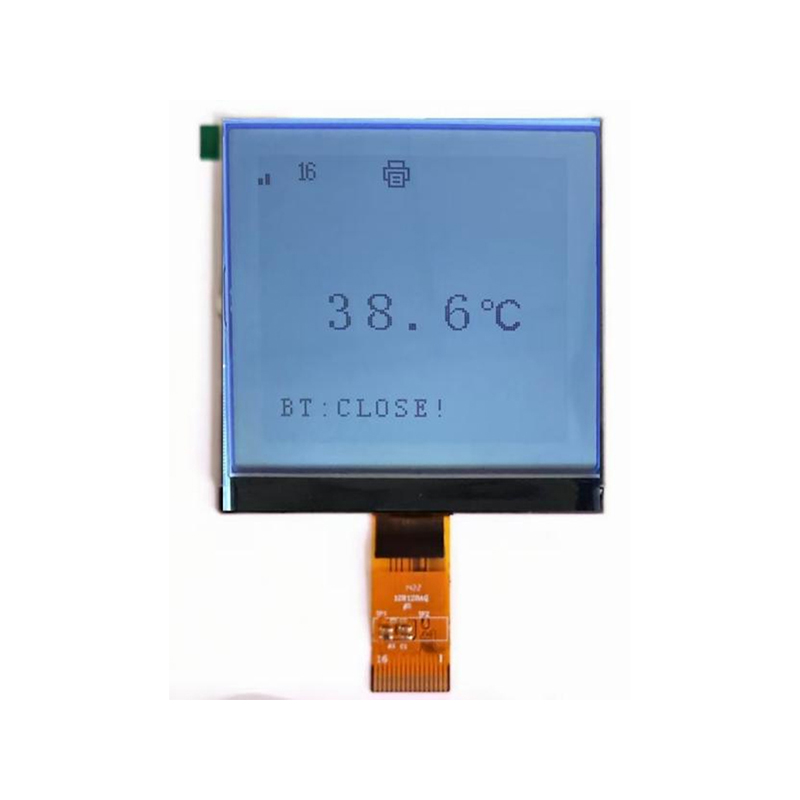

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.

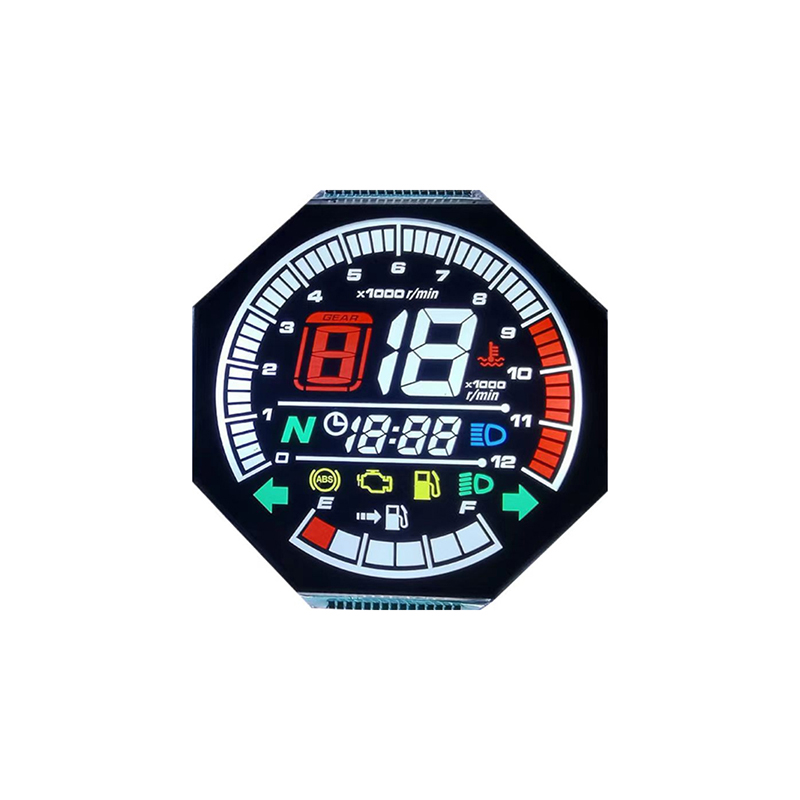

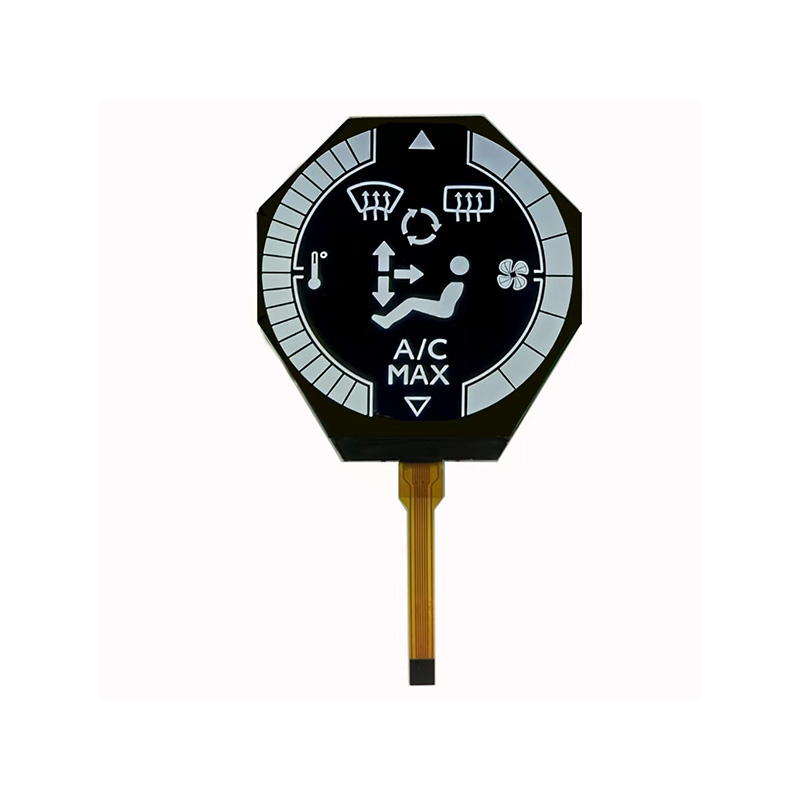

Color film LCD is a color film combined with a fully transparent LCD to present color display content. For fixed display content, it can present the effect of a TFT color screen, and can be customized in special shapes. The price is much lower than that of a TFT color screen, the power consumption is low, and the high and low temperature performance is better than TFT. Color film LCD is usually in negative display mode and is used in combination with a backlight.
Product description: HTN LCD types are widely used in industrial instruments, industr...
FPC LCD stands for Flexible Printed Circuit LCD. FPC is also called flexible printed circuit board, soft board, or flexible circuit board. It can be used for LCD glass lead output connection without driver chip, or COG LCD connection. No welding is required, easy to install, and the product is lightweight.
Data loggers are widely used in industrial control, environmental monitoring, medical equipment, vehicle systems and other fields for recording various physical quantities (e.g., temperature, pressure, flow, voltage, current, etc.) for a long time and in a stable manner. When choosing a display solution for them, segment code LCD is a very common and highly advantageous choice. This product is a customized segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC. this type of LCD module has a wide range of operating temperatures, thin and lightweight structure, simple to use, good display effect, stable performance and so on.
Product description: 2 inch tft display is a mini tft display, which adopts full-view...

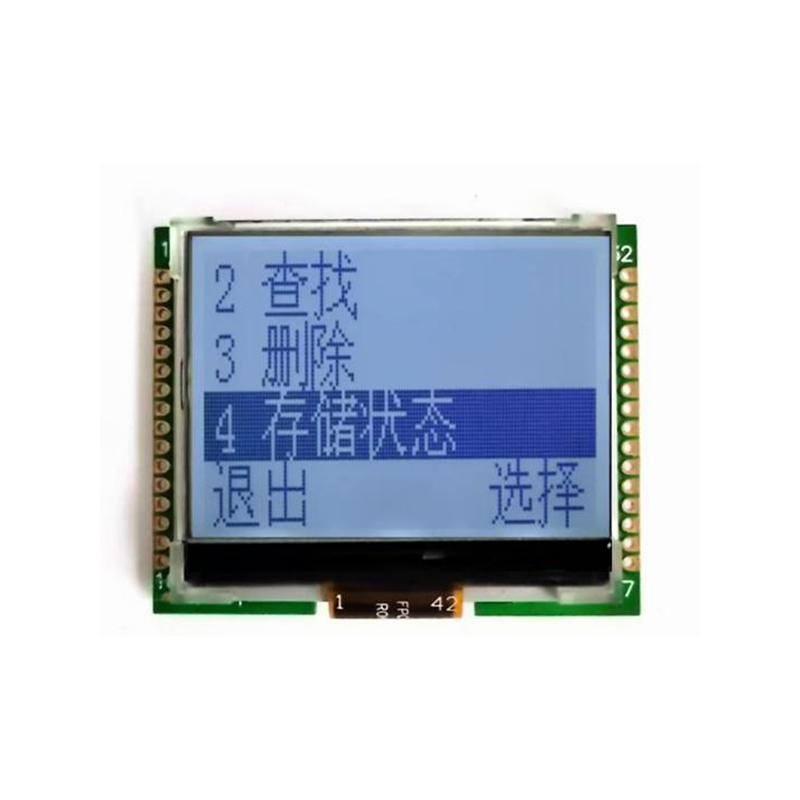

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
