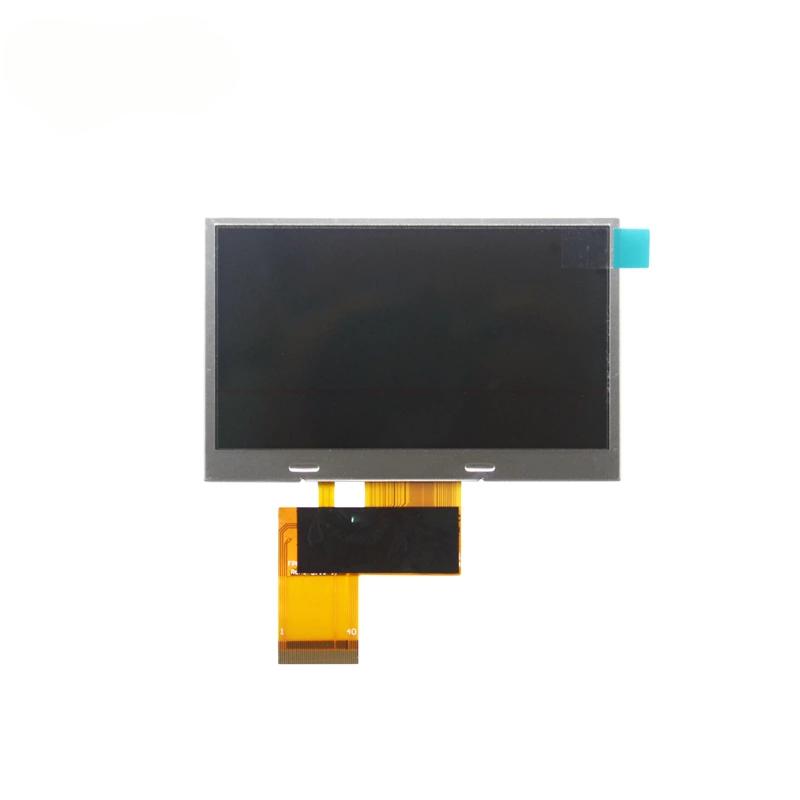

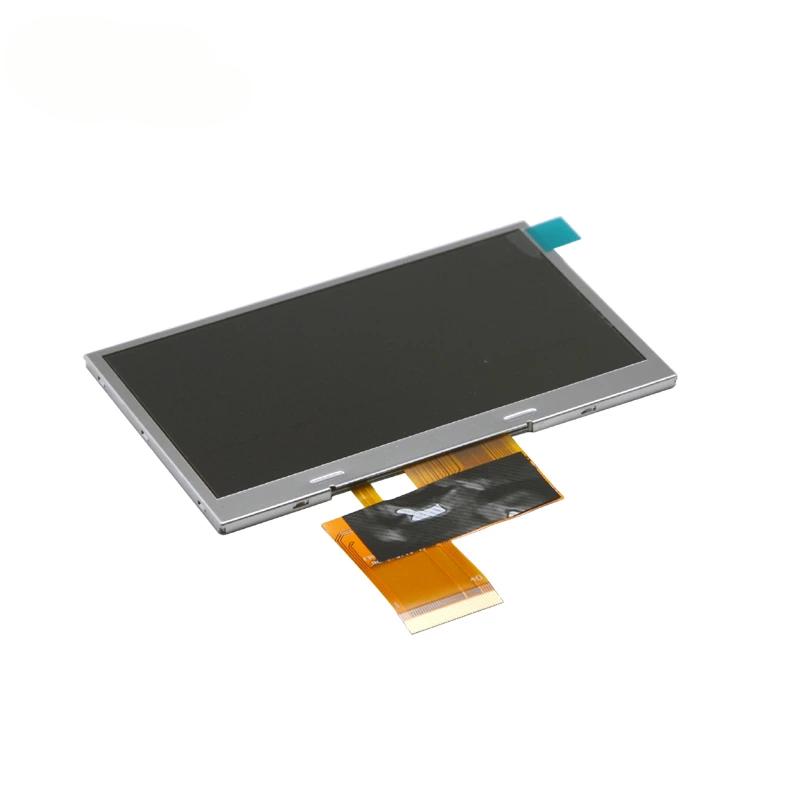

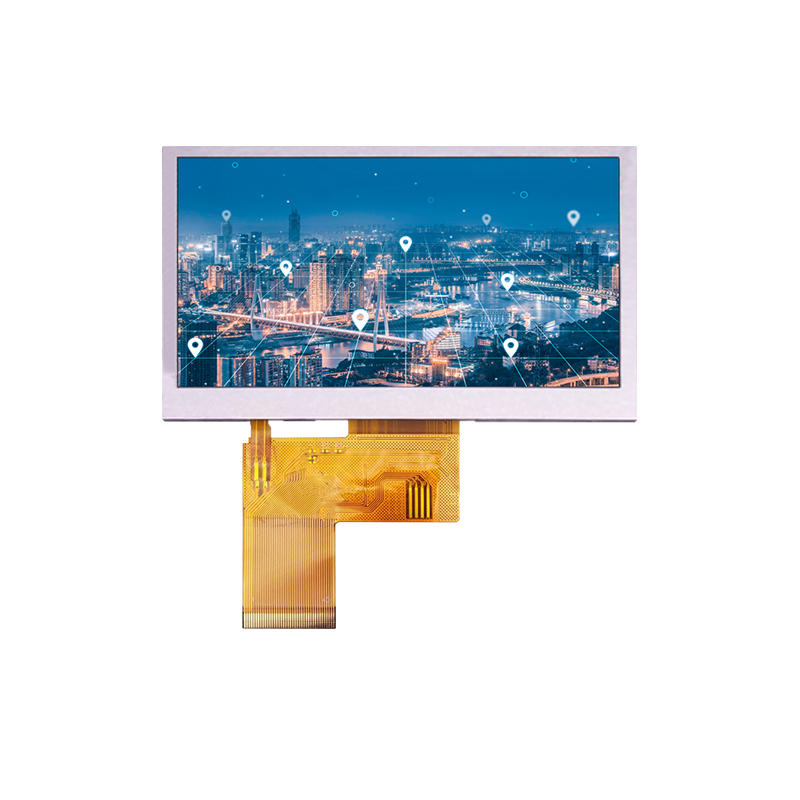

This product is a 4.3-inch TFT display specially designed for automotive instrument clusters. All materials used are automotive-grade, enabling stable operation in a wide-temperature environment from -30°C to 85°C.
The screen features a high brightness of 1000 cd/m² and supports an RGB interface, ensuring clear visibility even under direct strong light. Its full-viewing-angle characteristic guarantees that drivers can accurately read key driving information from any angle. It is widely used in applications such as automotive instrument panels, engineering machinery controllers, and integrated instrument systems.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
✅ Trusted by Multinational Clients
We serve clients across 20+ countries including China, Germany, the USA, and Poland, having delivered 1,000+ customized TFT display solutions.
✅ Stringent Environmental Standards
All products comply with RoHS/REACH certifications.
✅ Precise Adaptation Capability
We offer a full-size range from 2.0" to 15.6", with resolutions selectable from 240×320 up to 1920×1080.
✅ Customization Services Available
We provide tailored solutions including:
1,Backlight brightness
2,Cover glass thickness and shape customization
3,Cover glass treatments: AR/AG/AF coating & tempering
4,OCA full lamination
5,TFT metal enclosures
6,Optional RTP/CTP (Resistive/Capacitive Touch Panel)
7,Optional IP65 protection rating
| Manufacturer | Eastern Display |
| Product model | EDT043DLN-36 |
| Resolution | 480*272 |
| Interface | RGB interface |
| Driver chip | SC7283 |
| Connection | FPC |
| Display type | 16.7M Color TFT Display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-85℃ |
| Cover | Customized services such as AF/AG/AR |
| Lifetime | 50000H |
