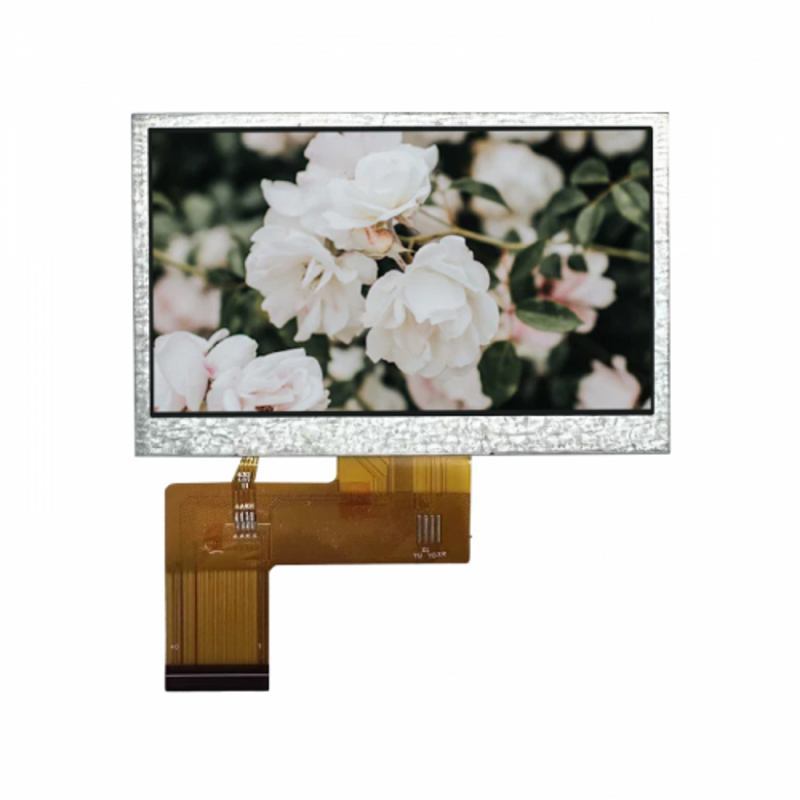

Product description: This product is a mini TFT display with a resolution of 480*272, RGB interface, 1000cd/m²LED backlight, which can maintain clear visibility in strong light environments, supports wide operating temperature of -30℃~85℃, is compatible with complex electromagnetic environments, meets the stringent requirements of the automotive industry, and is widely used in automotive front-end instruments such as heavy trucks, light trucks, buses, and new energy passenger cars. EASTERN DISPLAY ─ Global display solution expert ✅ Trusted choice of multinational customers Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing custo...
This product is a mini TFT display with a resolution of 480*272, RGB interface, 1000cd/m²LED backlight, which can maintain clear visibility in strong light environments, supports wide operating temperature of -30℃~85℃, is compatible with complex electromagnetic environments, meets the stringent requirements of the automotive industry, and is widely used in automotive front-end instruments such as heavy trucks, light trucks, buses, and new energy passenger cars.
EASTERN DISPLAY ─ Global display solution expert
✅ Trusted choice of multinational customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions
✅ Strict environmental standards
All products are RoHS/REACH certified.
✅ Precise adaptation capability
Provide 2.0"-15.6" full-size coverage, with optional resolutions of 240×320 to 1920×1080.
✅ Provide customized services:
The following customized services can be provided to customers:
1. Customized backlight brightness.
2. Optional cover thickness, shape and silk screen.
3. AR/AG/AF treatment of tempered cover.
4. OCA/OCR full lamination service
5. Customized shell structure.
6. RTP/CTP optional.
7. IP65 protection level optional.
| Manufacturer | Eastern Display |
| Product model | EDT043DLN-36 |
| Resolution | 480*272 |
| Interface | RGB interface |
| Driver chip | SC7283 |
| Connection method | FPC |
| Display type | 16.7M color tft lcd display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-85℃ |
| Cover | Provide customized services such as AF/AG/AR. |
