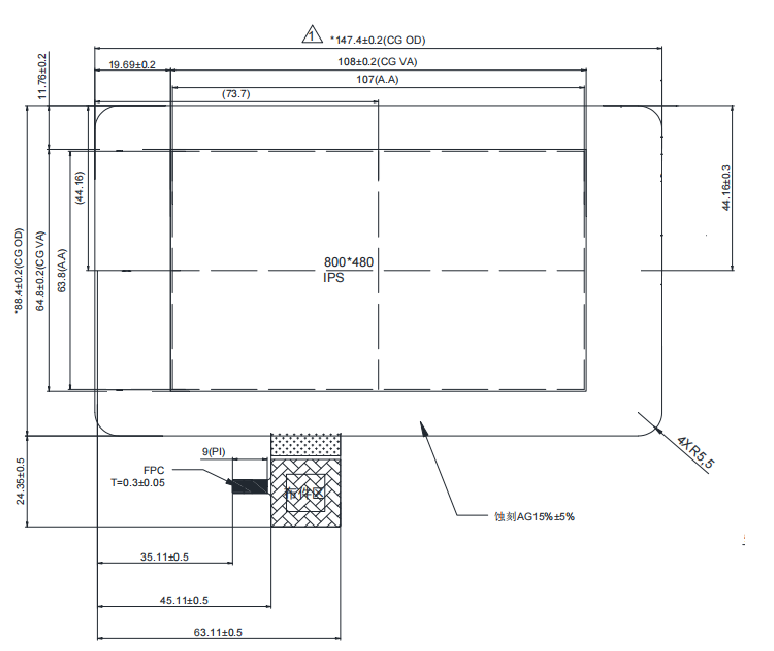

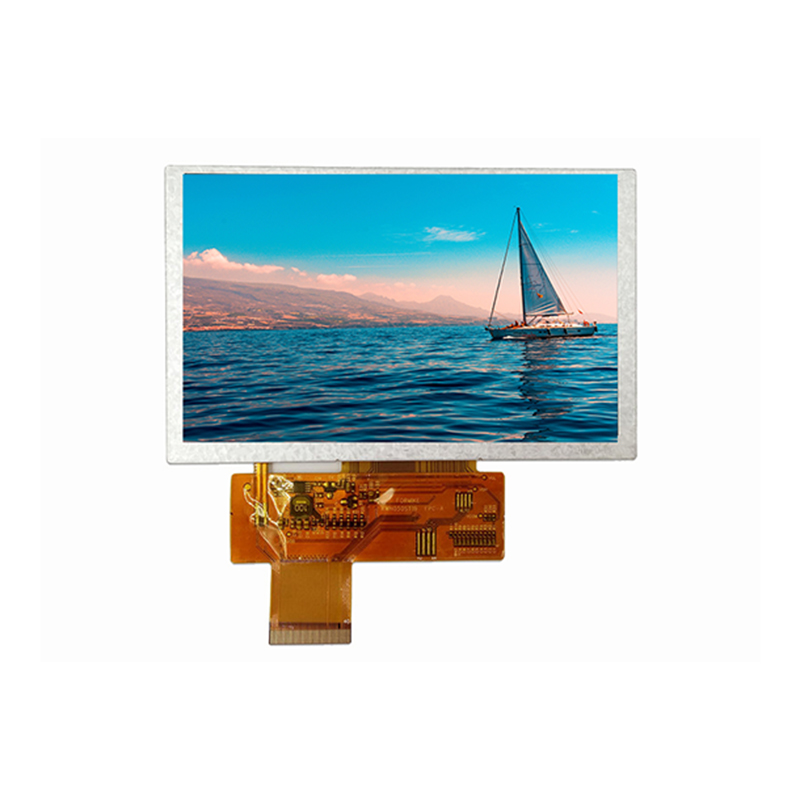

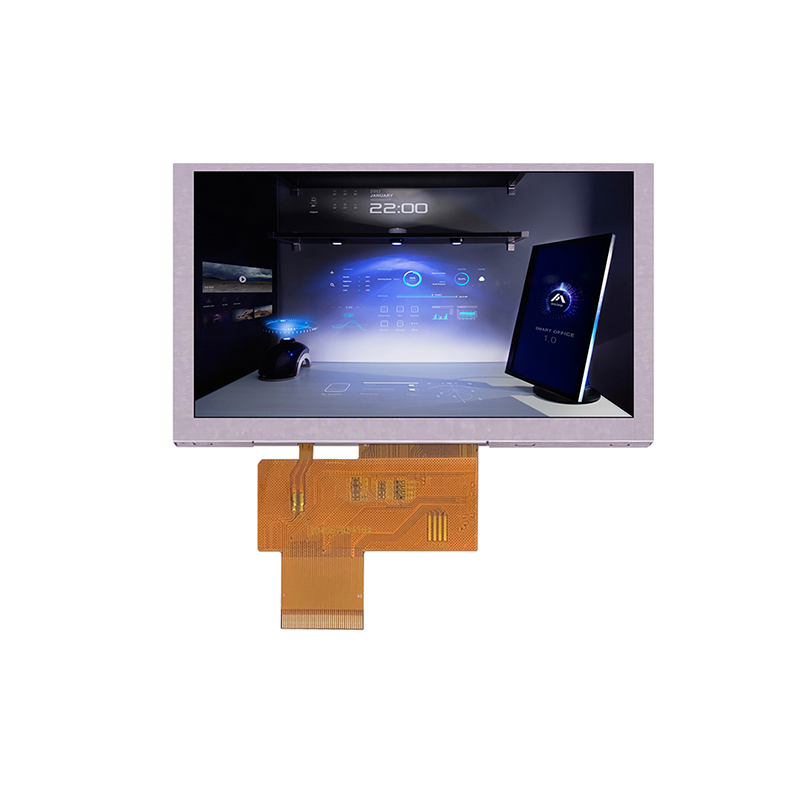

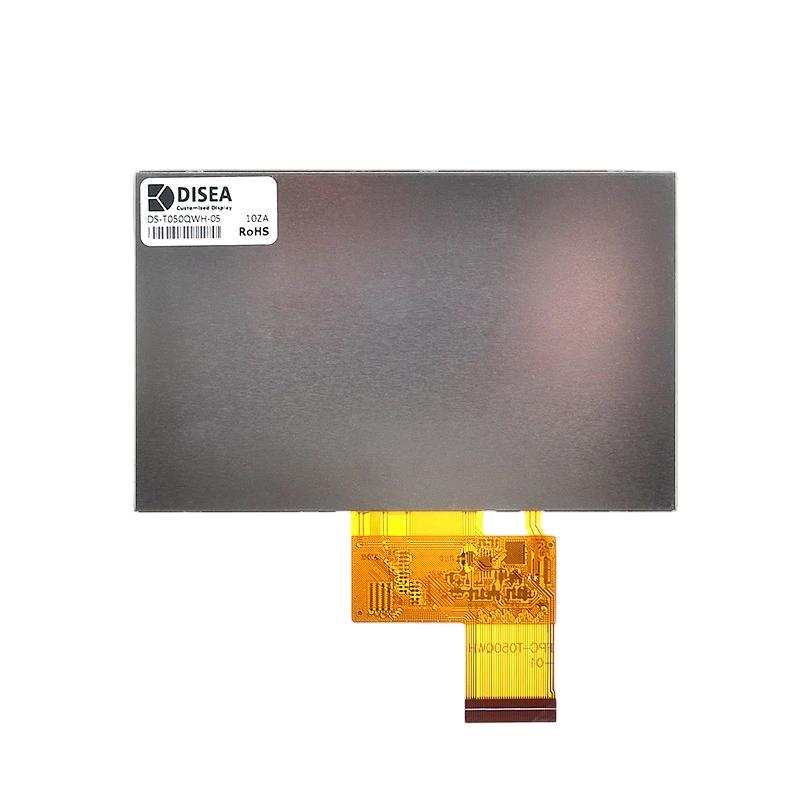

This product is a 5-inch TFT display specifically designed for automotive instrument clusters. It features an 800×480 resolution with an RGB interface and incorporates IPS technology, achieving a brightness of up to 1000 cd/m² to ensure clear visibility even under strong light conditions. With an operating temperature range of -30°C to 85°C and excellent electromagnetic compatibility, it meets the stringent reliability and stability requirements of the automotive industry. This display is suitable for a wide range of pre-installed instrument systems in heavy-duty trucks, light trucks, buses, and new energy passenger vehicles.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
✅ Trusted by Multinational Clients
We serve clients across 20+ countries including China, Germany, the USA, and Poland, having delivered 1,000+ customized TFT display solutions.
✅ Stringent Environmental Standards
All products comply with RoHS/REACH certifications.
✅ Precise Adaptation Capability
We offer a full-size range from 2.0" to 15.6", with resolutions selectable from 240×320 up to 1920×1080.
✅ Customization Services Available
We provide tailored solutions including:
1,Backlight brightness
2,Cover glass thickness and shape customization
3,Cover glass treatments: AR/AG/AF coating & tempering
4,OCA full lamination
5,TFT metal enclosures
6,Optional RTP/CTP (Resistive/Capacitive Touch Panel)
7,Optional IP65 protection rating
| Manufacturer | Eastern Display |
| Product model | EDT050BLM-113 |
| Resolution | 800*480 |
| Interface | RGB interface |
| Connection method | FPC |
| Display type | 16.7M color TFT-LCD |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-85℃ |
| Cover | Provide customized services such as AF/AG/AR。 |
