Product description: 7-inch tft display supports wide operating temperature of -20℃~70℃, is compatible with complex electromagnetic environment and anti-vibration, meets the demanding use conditions of washing machines, and is widely used in washing machines, smart range hoods, smart refrigerators, medical freezers, coffee machines and other scenarios, with multiple resolutions available: 800*480, 1024*600, 1280*800. EASTERN DISPLAY ─ Global Display Solution Expert ✅ Trusted choice of multinational customers Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions ✅ Strict environmenta...

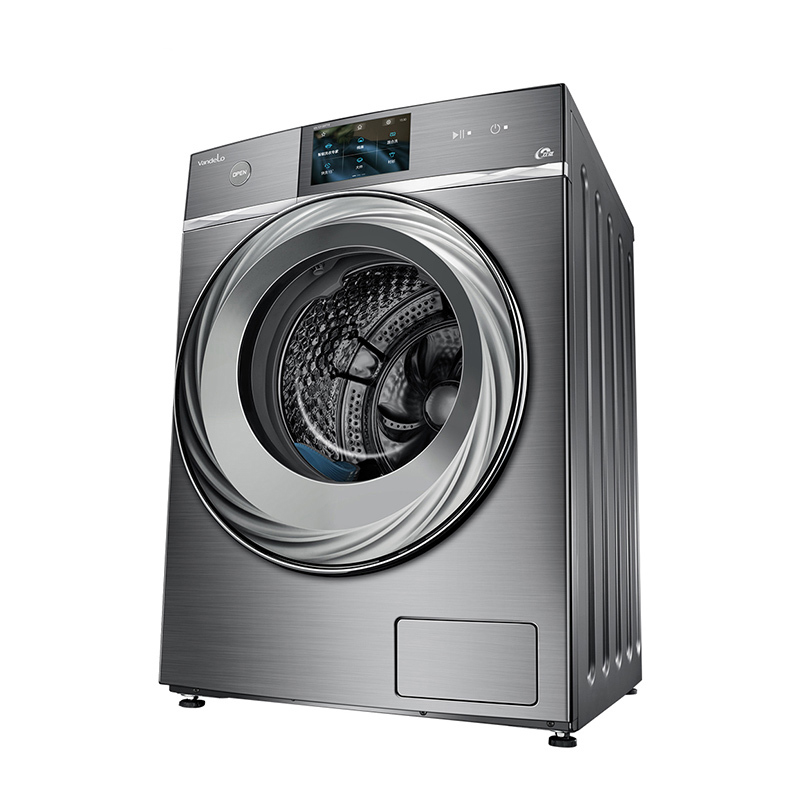

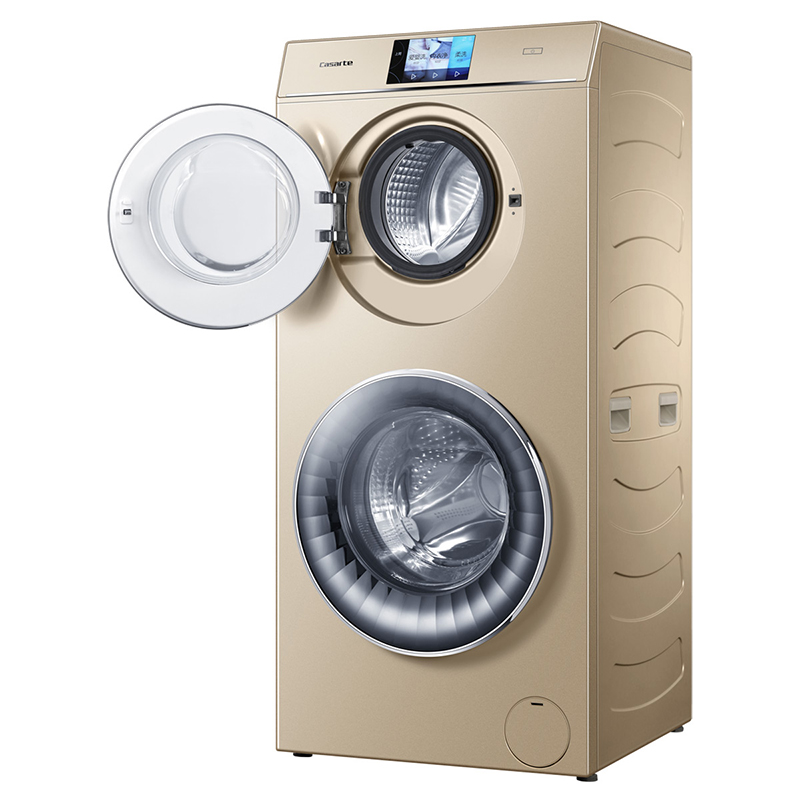

7-inch tft display supports wide operating temperature of -20℃~70℃, is compatible with complex electromagnetic environment and anti-vibration, meets the demanding use conditions of washing machines, and is widely used in washing machines, smart range hoods, smart refrigerators, medical freezers, coffee machines and other scenarios, with multiple resolutions available: 800*480, 1024*600, 1280*800.
EASTERN DISPLAY ─ Global Display Solution Expert
✅ Trusted choice of multinational customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions
✅ Strict environmental standards
All products are RoHS/REACH certified.
✅ Precise adaptation capability
Provides full-size coverage from 2.0"-15.6", with optional resolutions from 240×320 to 1920×1080.
✅ Provide customized services:
The following customized services can be provided to customers:
1. Customized backlight brightness
2. Cover thickness, shape and silk screen are optional.
3. Tempered cover AR/AG/AF treatment.
4. OCA full lamination
5. Customized shell structure.
6. RTP/CTP are optional.
7. IP65 protection level is optional.
| Manufacturer | EASTERN DISPLAY |
| Resolution | 800*480、1024*600、1280*800 |
| Interface | RGB interface、LVDS interface |
| Connection method | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED |
| Backlight brightness | 600cd/m2(customizable) |
| Operating temperature | -20-70℃ |
| Storage temperature | -30-80℃ |
| Cover | Provide AF/AG/AR and other customized services. |
| Touch | Provide customized services for capacitive touch screen/resistive touch screen |
| Keywords:custom tft display/spi tft display/mini tft display/tft display touch screen/Customized TFT/ips tft display/i2c tft display/cheap tft display. | |
