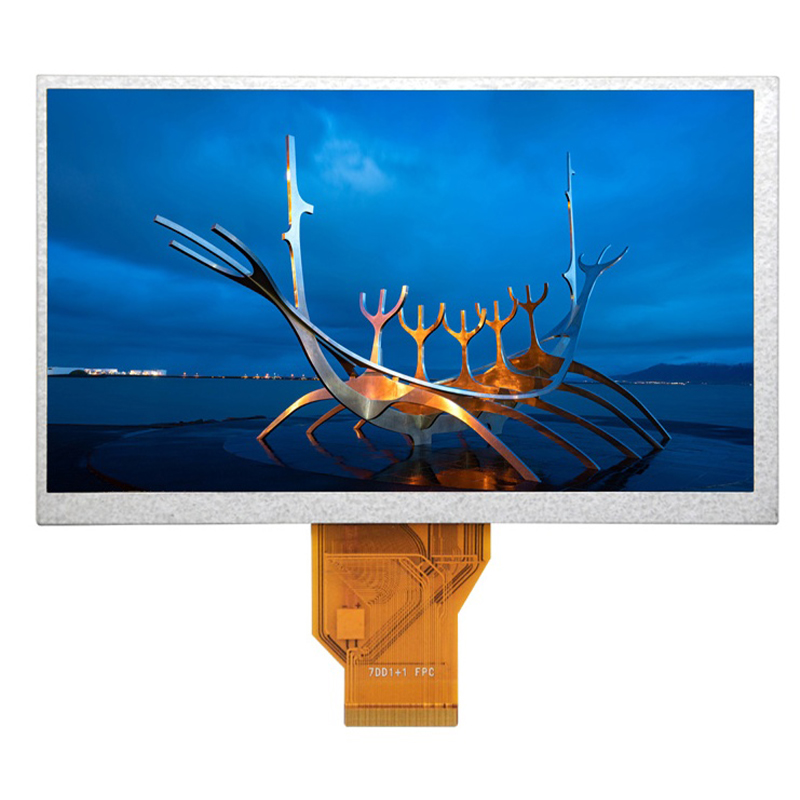

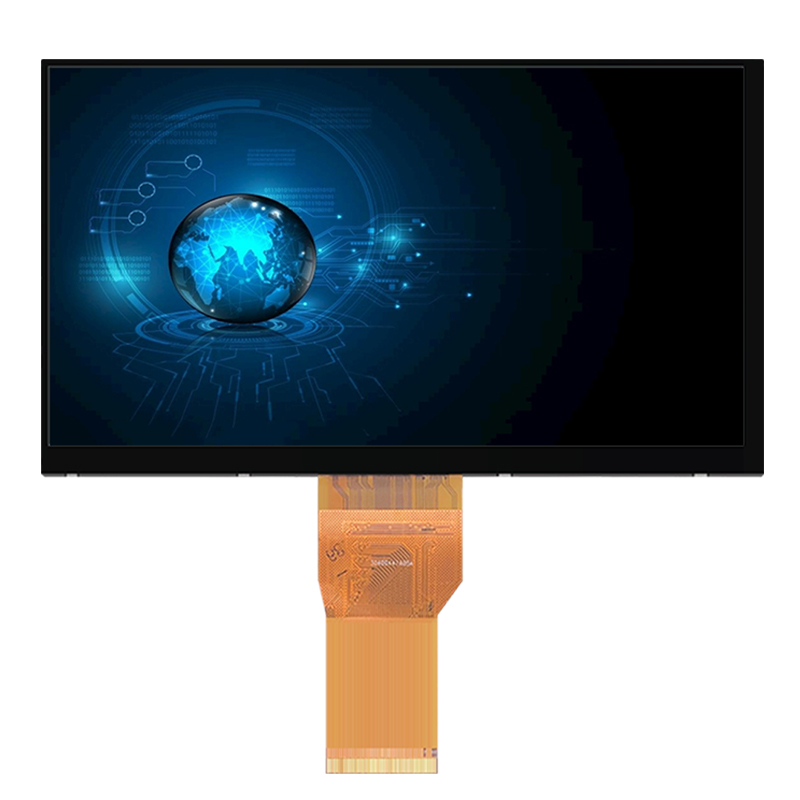

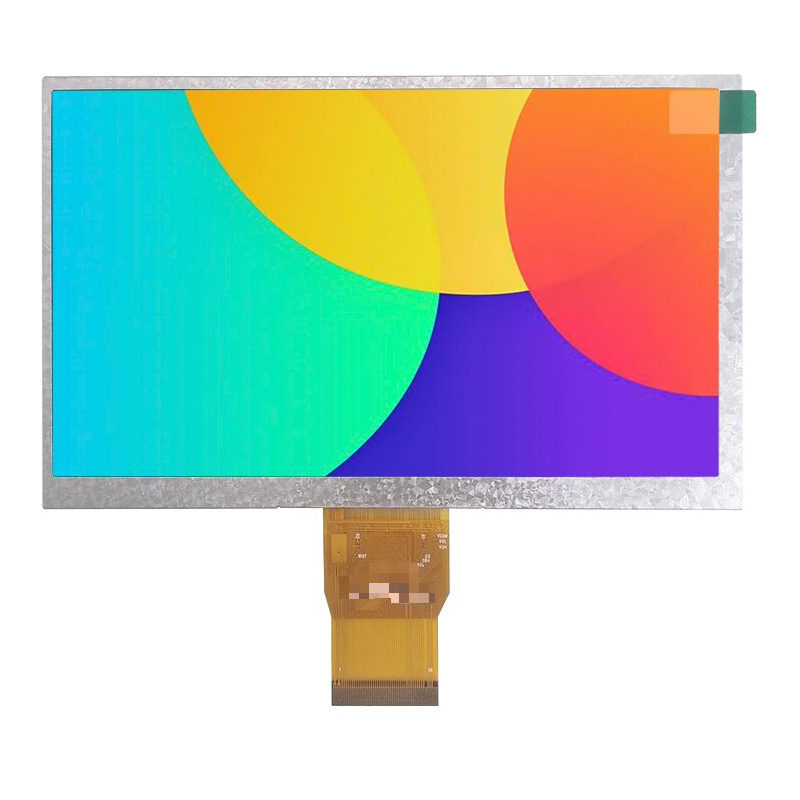

Product description: 7 inch tft display uses automotive-grade LCD and backlight materials, supports -30℃~85℃ wide temperature operation, is compatible with complex electromagnetic environments, meets the stringent requirements of the automotive industry, and is widely used in front-mounted instruments such as heavy trucks, light trucks, buses, and new energy passenger cars. 7 inches has multiple resolutions: 800*480, 1024*600, 1280*800. EASTERN DISPLAY ─ Global display solution expert✅ Trusted choice of multinational customersServing customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions✅ Strict...
7 inch tft display uses automotive-grade LCD and backlight materials, supports -30℃~85℃ wide temperature operation, is compatible with complex electromagnetic environments, meets the stringent requirements of the automotive industry, and is widely used in front-mounted instruments such as heavy trucks, light trucks, buses, and new energy passenger cars. 7 inches has multiple resolutions: 800*480, 1024*600, 1280*800.
EASTERN DISPLAY ─ Global display solution expert
✅ Trusted choice of multinational customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions
✅ Strict environmental standards
All products are RoHS/REACH certified.
✅ Precise adaptation capability
Provide 2.0"-15.6" full-size coverage, with optional resolutions of 240×320 to 1920×1080.
✅ Provide customized services:
The following customized services can be provided to customers:
1. Customized backlight brightness.
2. Optional cover thickness, shape and silk screen.
3. AR/AG/AF treatment of tempered cover.
4. OCA/OCR full lamination service
5. Customized shell structure.
6. RTP/CTP optional.
7. IP65 protection level optional.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDT070IWLON-398 |
| Resolution | 800*480 |
| Interface | 24 bit RGB interface |
| Driver chip | ILI6137+ILI5960 |
| Connection method | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | 6”o clock |
| Operating voltage | 3.3V |
| Backlight type | LED |
| Backlight brightness | 400cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-85℃ |
| Cover | Provide customized services such as AF/AG/AR. |
| Touch | Provide customized services for capacitive touch screen/resistive touch screen |
