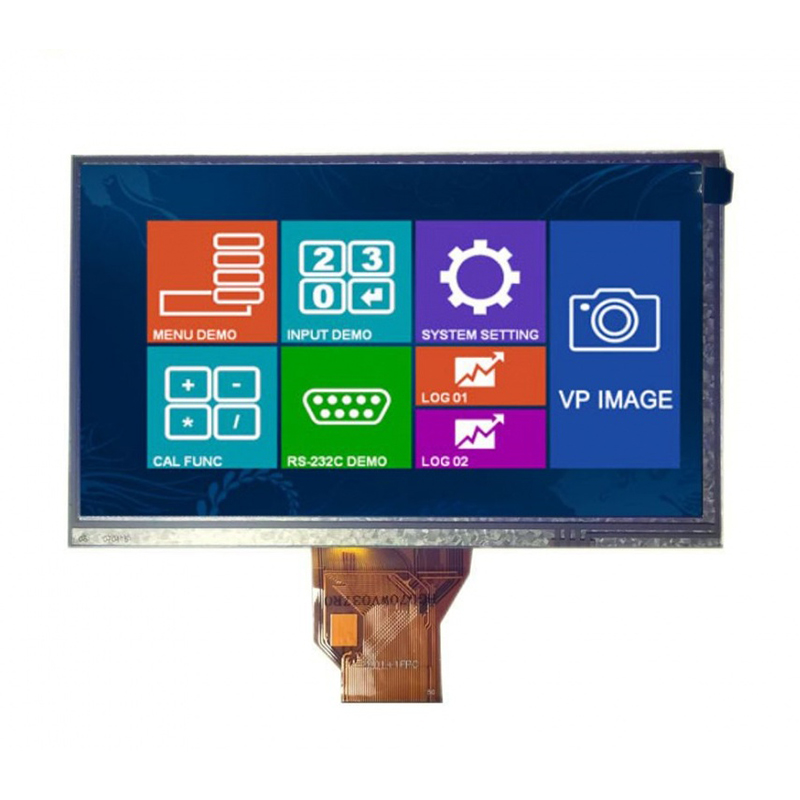

Product description: 7-inch TFT display uses automotive-grade LCD and backlight materials, RGB interface, 1000cd/m² LED backlight, and can maintain clear visibility in strong light environment. It supports wide operating temperature of -30℃~85℃, is compatible with complex electromagnetic environment, and meets the demanding requirements of the automotive industry. It is widely used in front-mounted instrument panels for heavy trucks, light trucks, buses, new energy passenger cars, etc. 7-inch has multiple resolutions: 800*480, 1024*600, 1280*800. EASTERN DISPLAY ─ Global display solution expert ✅ Trusted choice of multinational customers Serving customers in 20+ countries includin...
7-inch TFT display uses automotive-grade LCD and backlight materials, RGB interface, 1000cd/m² LED backlight, and can maintain clear visibility in strong light environment. It supports wide operating temperature of -30℃~85℃, is compatible with complex electromagnetic environment, and meets the demanding requirements of the automotive industry. It is widely used in front-mounted instrument panels for heavy trucks, light trucks, buses, new energy passenger cars, etc. 7-inch has multiple resolutions: 800*480, 1024*600, 1280*800.
EASTERN DISPLAY ─ Global display solution expert
✅ Trusted choice of multinational customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions
✅ Strict environmental standards
All products are RoHS/REACH certified.
✅ Precise adaptation capability
Provide 2.0"-15.6" full-size coverage, with optional resolutions of 240×320 to 1920×1080.
✅ Provide customized services:
The following customized services can be provided to customers:
1. Customized backlight brightness.
2. Optional cover thickness, shape and silk screen.
3. AR/AG/AF treatment of tempered cover.
4. OCA/OCR full lamination service
5. Customized shell structure.
6. RTP/CTP optional.
7. IP65 protection level optional.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDT070HSANX-364 |
| Resolution | 1024*600 |
| Interface | 24 bit RGB interface |
| Driver chip | ILI6150+ILI5120 |
| Connection method | FPC |
| Display type | 16.7M color TFT display |
| Viewing angle | Full-viewing angle IPS TFT Display |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -30-85°C |
| Storage temperature | -40-90°C |
| Cover | Provide customized services such as AF/AG/AR. |
| Touch | Provide customized services for capacitive touch screen/resistive touch screen |
