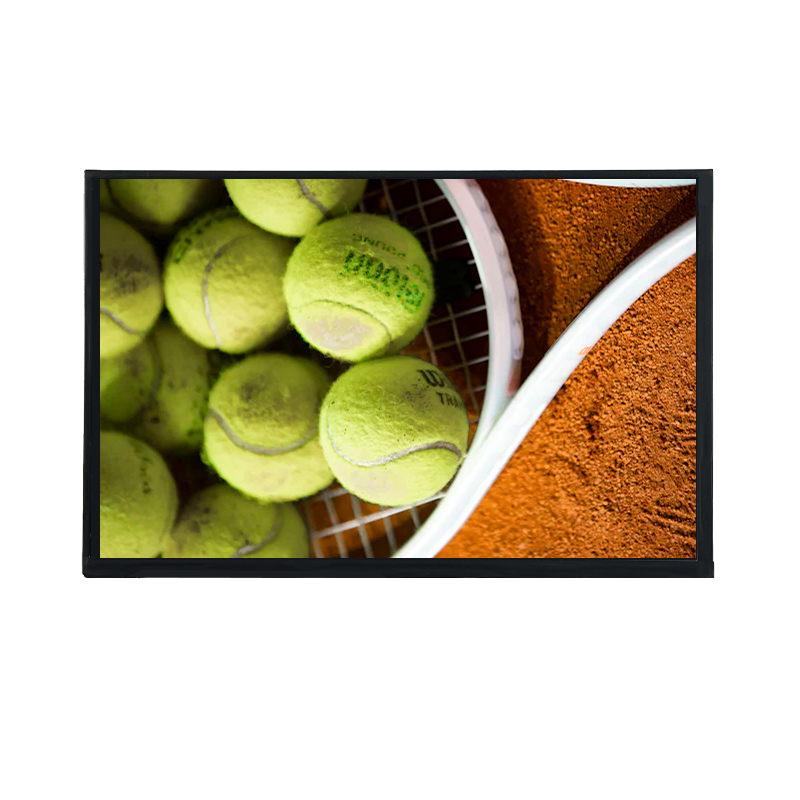

Product description: This industrial-grade TFT display screen, with a resolution of 1280×760, IPS TFT display, is equipped with LVDS interface and 1000cd/m²LED backlight, and remains clearly visible in strong light environments. It supports wide operating temperatures of -40℃~85℃, is compatible with complex electromagnetic environments, and is suitable for harsh scenarios such as smart electric vehicle instruments, medical equipment control panels, industrial weighing terminals and analytical instruments, and has a long-life colour TFT display. EASTERN DISPLAY ─ Global display solution expert ✅ Trusted choice of multinational customers Serving customers in 20+ countries including ...
This industrial-grade TFT display screen, with a resolution of 1280×760, IPS TFT display, is equipped with LVDS interface and 1000cd/m²LED backlight, and remains clearly visible in strong light environments. It supports wide operating temperatures of -40℃~85℃, is compatible with complex electromagnetic environments, and is suitable for harsh scenarios such as smart electric vehicle instruments, medical equipment control panels, industrial weighing terminals and analytical instruments, and has a long-life colour TFT display.
EASTERN DISPLAY ─ Global display solution expert
✅ Trusted choice of multinational customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, etc., providing customers with 1000+ custom tft display solutions
✅ Strict environmental standards
All products are RoHS/REACH certified.
✅ Precise adaptation capability
Provide 2.0"-15.6" full-size coverage, with optional resolutions of 240×320 to 1920×1080.
✅ Provide customized services:
The following customized services can be provided to customers:
1. Customized backlight brightness.
2. Optional cover thickness, shape and silk screen.
3. AR/AG/AF treatment of tempered cover.
4. OCA/OCR full lamination service
5. Customized shell structure.
6. RTP/CTP optional.
7. IP65 protection level optional
| Manufacturer | Eastern Display |
| Product model | EDT080DLN-39 |
| Resolution | 1280*760 |
| Interface | LVDS |
| Driver chip | HX8290+HX8695 |
| Connection method | FPC |
| Display type | 16.7M color TFT-LCD |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 1000cd/m2 |
| Operating temperature | -40-85℃ |
| Storage temperature | -40-95℃ |
| Cover | Provide customized services such as AF/AG/AR。 |
Product description: This product is an industrial TFT display with a resolution of 8...
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: 1.54 inch flexible oled display, resolution 128*64, parallel or ...
Product description: TFT LCD display screens are widely used in various commercial ve...
Product description: Full-view VA LCD segment screen is an upgraded process of ordina...
Segment LCD products are widely used in medical instruments such as blood glucose meters, blood p...
This product is an LCD 20×4 character dot matrix display module designed for displaying ASCII characters, featuring 4 rows with 20 characters per line. The screen utilizes an STN yellow-green mode LED backlit LCD, displaying yellow-green background with black characters, offering high contrast and a wide viewing angle. The module incorporates the ST7066 universal character driver chip, adopts COB production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, ensuring ease of use.
Product description: HTN segment LCD is an improved product of TN segment LCD, with a...
The COG LCD product is widely used in differential pressure flowmeters, positive displacement flowmeters, variable area flowmeters (rotameters), turbine flowmeters, electromagnetic flowmeters, vortex flowmeters, ultrasonic flowmeters, mass flowmeters, volumetric flowmeters, and more. Its dot matrix display can present information such as instantaneous flow rate, total accumulated flow, operational status indicators, engineering units, conductivity/empty pipe alarms, frequency/signal strength, temperature and density, speed of sound, and time of flight difference, in multiple languages as well as digitally. It ensures the accurate and reliable display of measurement data from the instrumentation.
FPC LCD stands for Flexible Printed Circuit LCD. FPC is also called flexible printed circuit board, soft board, or flexible circuit board. It can be used for LCD glass lead output connection without driver chip, or COG LCD connection. No welding is required, easy to install, and the product is lightweight.
This product is a high-definition instrument TFT screen with a resolution of 1280480, LVDS interface, and IPS full-viewing angle screen. It features LED backlight at 800 cd/m², ensuring clear visibility even in strong light environments. It supports operation in a wide temperature range of -30°C to 85°C. With capacitive touch and a tempered cover glass, it meets the demanding requirements of automotive applications. It is widely used in new energy vehicle instrument clusters, robot display screens, industrial instruments, etc.
Segment LCD are widely used. For some product application scenarios, it is necessary to enhance display recognition and improve aesthetic appeal. By employing screen printing or the application of colored films onto the LCD surface, a monochrome LCD can achieve multi-color effects under low-cost conditions.
FSTN is widely used in industrial instruments, industrial control equipment and communication equ...
FSTN LCD enhances viewing angle width and improves background color uniformity (compared to STN LCD) through the compensation film process. FSTN is suitable for multiplex dynamic driving and can support up to 320-multiplex dot matrix products, making it ideal for complex graphic displays.
LCD segment display products are widely used in medical instruments such as blood glucose meters,...
