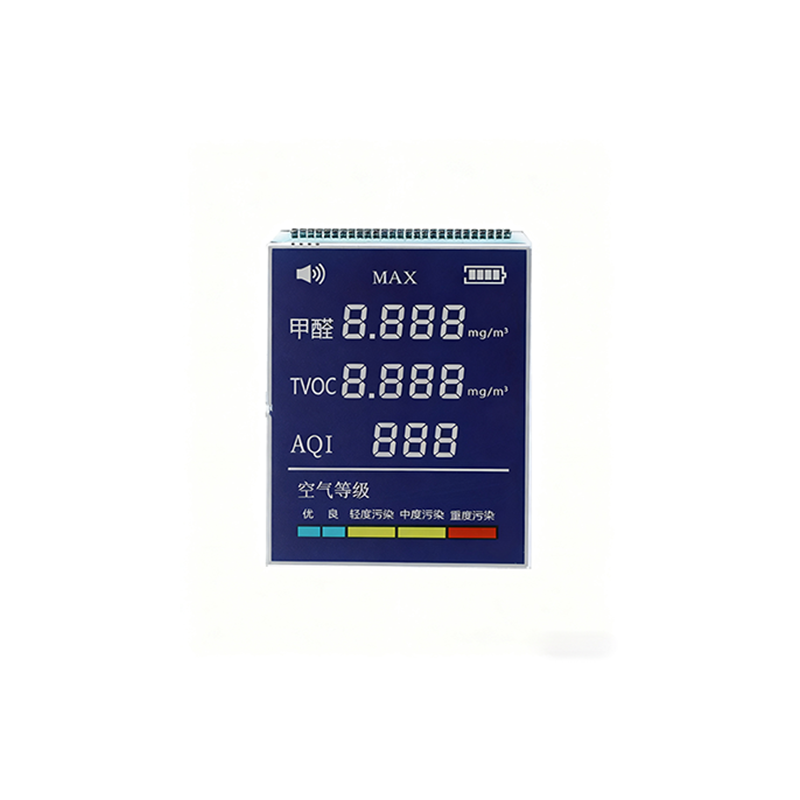

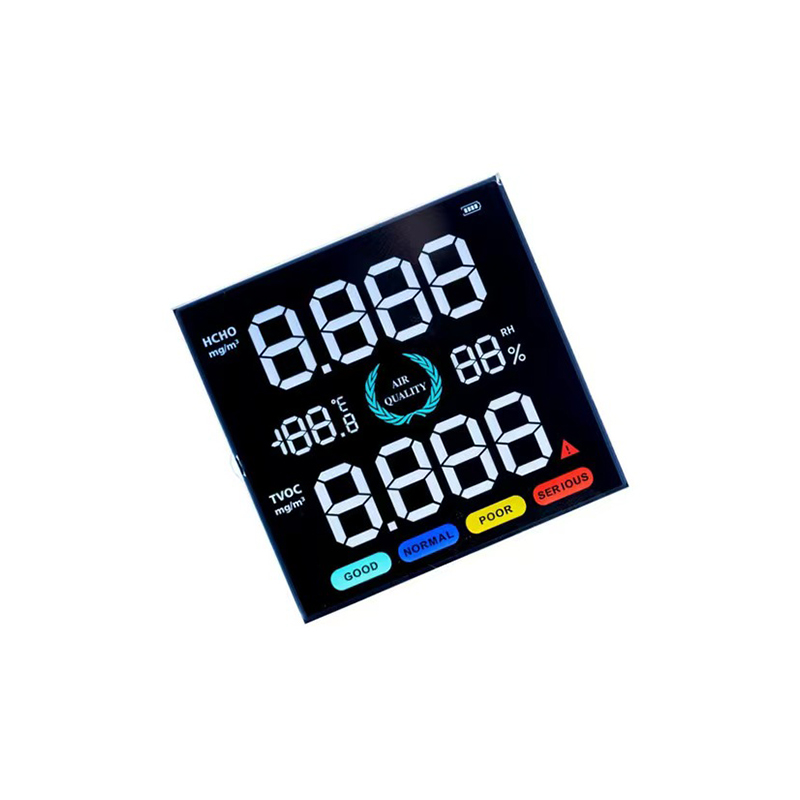

Backlit LCD segment display: LCD screens in environments with varying brightness levels typically require backlighting. Additionally, LCD products with screen printing and color film effects generally need backlighting support to achieve the desired screen printing results. Both backlighting and LCD screens can be customized for irregular shapes.
LCD Backlit Display Modules: LCD screens used in environments with fluctuating ambient lighting require backlighting. The brightness and coloration of backlighting can be customized. Negative-Dot Products, VA, and Semi-Translucent Mode LCDs typically need backlight integration. Backlit products generally offer higher contrast ratios and sharper resolution, delivering superior viewing experience. Screen-printed or color-coated products depend on backlighting to achieve optimal visual performance. For frame-mounted LCD modules, backlight units can be directly placed beneath the display, adhered to the bottom surface, or integrated into pre-engineered backlight structures. Backlit LCDs consume slightly more power due to backlight operation. Common mounting methods include thermal adhesive tape, zebra stripe bonding, metal foot connections, and flexible printed circuit (FPC) interfaces.
EASTERN DISPLAY can provide touch LCD, which can be made into internal integration and surface touch film; it can also provide COG products with integrated chips. All products comply with ROHS and REACH standards.
| Manufacturer | EASTERN DISPLAY |
| Connection method | FPC/ metal pins Custom |
| Product model | TN /HTN/STN/VA Custom |
| Viewing angle direction | Customizable/Can be viewed in full perspective |
| Operating voltage | 2.7V-5V Custom |
| Viewing angle range | 120-170° |
| Special shape | Custom |
| Number of drive paths | Custom |
| Translucent type | Custom |
| Backlight type/color | Custom |
| Operating temperature | -40--90℃ |
| Storage temperature | -45--90℃ |
| Visible under strong light | Custom |
| Screen printing / color film | Custom |
| Service life | 100,000 hours |
| Keywords: TN LCD/HTN LCD/STN LCD/VA LCD/wide temperature range/Custom segment display/high contrast LCD/compact LCD/high-contrast LCD/small LCD display/LCD glass/Segment LCD/Transparent LCD/Arduino LCD/Hydroshift LCD | |
The 128×64 dot matrix LCD module is one of the most commonly used monochrome display products. Its display types include STN positive display, STN negative display, FSTN positive display, and FSTN negative display. It is paired with white backlight or other monochrome backlights, offering various display modes such as gray background with blue/black characters, yellow-green background with blue/black characters, and blue background with white characters. The product features high contrast and a wide viewing angle. The module contains a driver chip and connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface. It is simple to use, offers excellent display quality, and provides stable performance. It can display graphics and multiple lines of text, making it widely used in various arcade game machines.
This product is a 320240 LCD dot matrix display that can display graphics with 320 columns x 240 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Product description: Super-large segment screens usually refer to LCD segment screens...
This compact TFT screen features an 800×480 resolution with an RGB interface and IPS full-view display. Powered by LED backlighting (800cd/m²), it delivers crystal-clear visibility even in harsh light conditions. Capable of operating across-30℃ to 80℃ temperature ranges, the device excels in complex electromagnetic environments while meeting stringent operational requirements. Widely used in flow meters, analyzers, VOC detectors, balances, ion counters, and other precision instruments.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: FSTN LCD is widely used in industrial instruments, industrial co...
Product description: VA LCD products have high contrast, wide viewing angle, color an...
Product description: The light source of the translucent LCD segment code LCD screen ...
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through SPI interface/I2C interface/Parallel LCD interface to display various images and texts. The product comes with a resistive LCD touch screen.
VA LCD products are widely used in industrial alarm instruments such as multi-channel alarm meters, single-channel digital display alarm meters, status/process indicators, and dedicated gas detection alarm meters. The LCD screens digitally display real-time measurement values (temperature, pressure, etc.), alarm setpoints, analog displays (percentage), channel numbers, alarm status indications, gas concentration values (e.g., %LEL), and provide precise display of single-point parameters and threshold alarms. This enables the informational representation of instrument functions for monitoring production process parameters and ensuring personal and property safety.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses an STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and uses a COG production process. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU via the SPI interface and is used to display various images and texts.
Product description: Negative Display LCD is a special liquid crystal display technol...
Product description: 1.54 inch flexible oled display, resolution 128*64, parallel or ...
An i2c OLED display with a resolution of 128*32, I2C interface, ultra-low power consumption, ultra-high contrast and viewing Angle, and a wide operating temperature range of-40 to 70 degrees Celsius.
Product description: Liquid Crystal Light Valve is a technical device that uses the c...
Color film LCD is a color film combined with a fully transparent LCD to present color display content. For fixed display content, it can present the effect of a TFT color screen, and can be customized in special shapes. The price is much lower than that of a TFT color screen, the power consumption is low, and the high and low temperature performance is better than TFT. Color film LCD is usually in negative display mode and is used in combination with a backlight.
