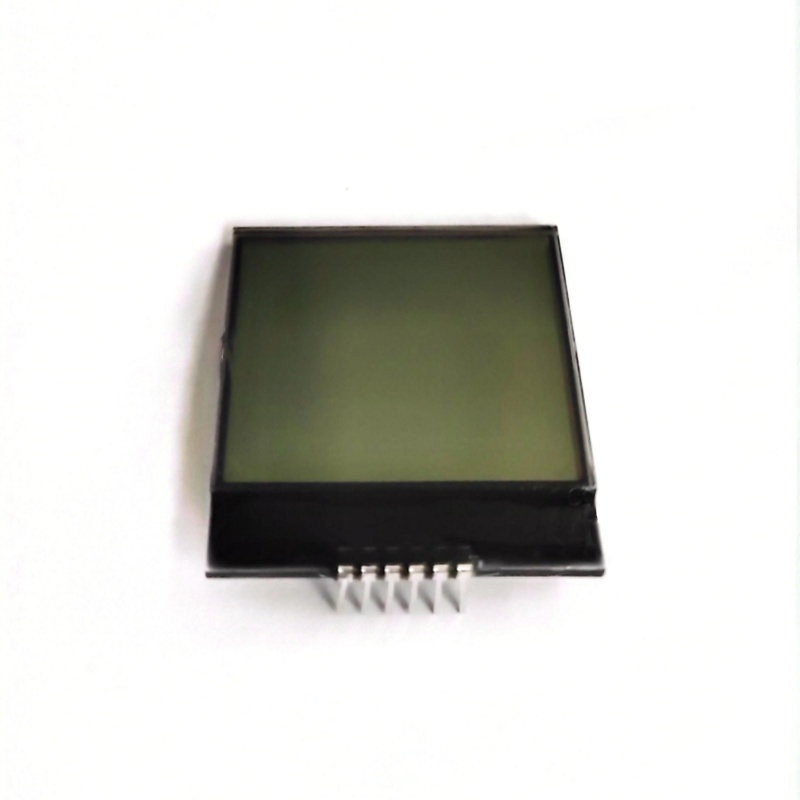

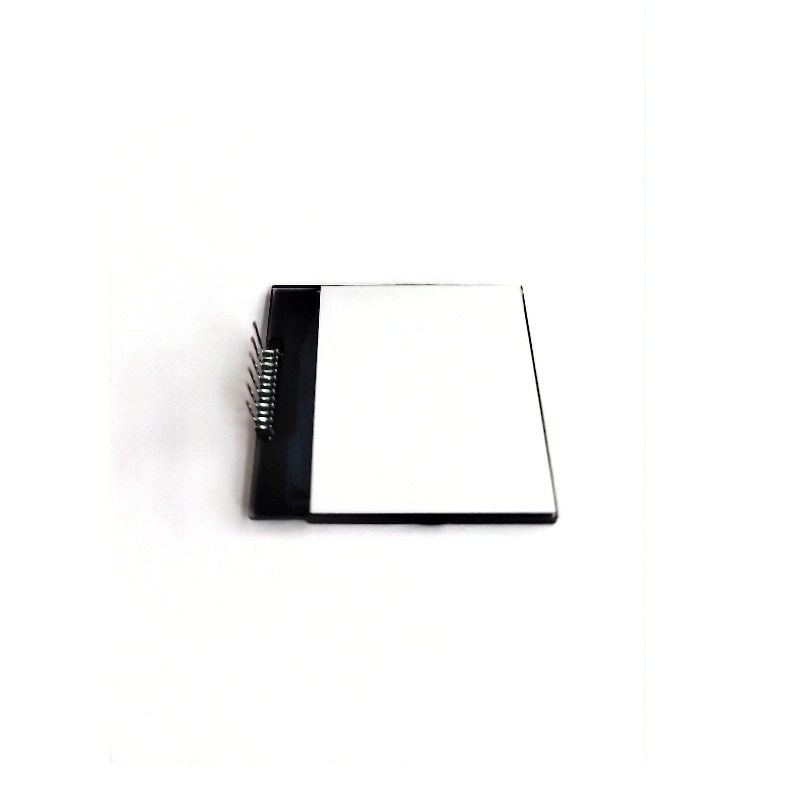

This product is a custom segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC.This type of LCD module has a wide range of operating temperatures, low power consumption, thin and light structure, good display effect, stable performance and other characteristics.
This product is a customized segment code COG module, its display is TN LCD screen, reflective mode, displaying black characters on gray background. The module adopts COG process, integrated driver chip, driving road from static to 1/4DUTY, connected to the main control MCU through the serial interface, the connection method is FPC or metal pin, thin and light structure, low current consumption, easy to use, cost-effective. This kind of display module can be customized service, LCD screen type can be selected TN, HTN, STN, FSTN, VA, etc., the display content can be seven-segment code numbers and some graphic identifiers, any customized graphics for home appliances, medical equipment, instrumentation and other industries to provide a diverse and personalized display interface, widely used in automotive, industrial control, instrumentation, smart home, home appliances, elevators and other fields.
| Manufacturer | EASTERN DISPLAY |
| Product Model | Customized |
| Display Content | Segment LCD |
| Display Color | Gray background，black display |
| Interface | SPI LCD |
| Driver Chip Model | LCD controller ML1001 |
| Manufacturing Process | COG LCD Module |
| Connection Method | PIN |
| Display Type | TN LCD，Positive，Reflective |
| Viewing Angle | 6 O'clock |
| Working Voltage | 3V |
| Backlight Type | No LED backlit |
| Backlight Color | No LCD backlight |
| Operating Temperature | -40-80℃ |
| Storage Temperature | -40-80℃ |
