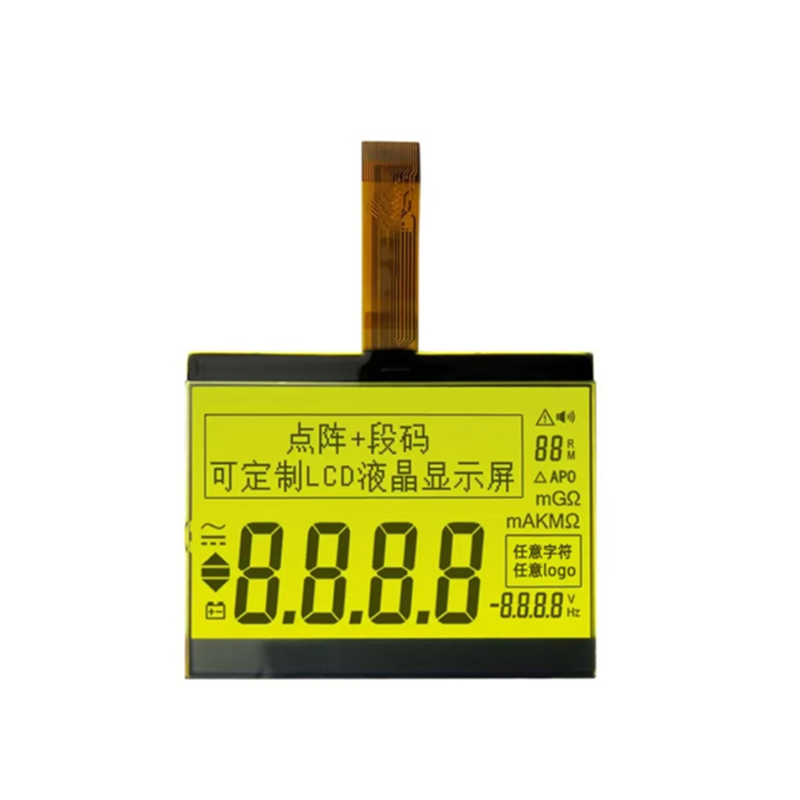

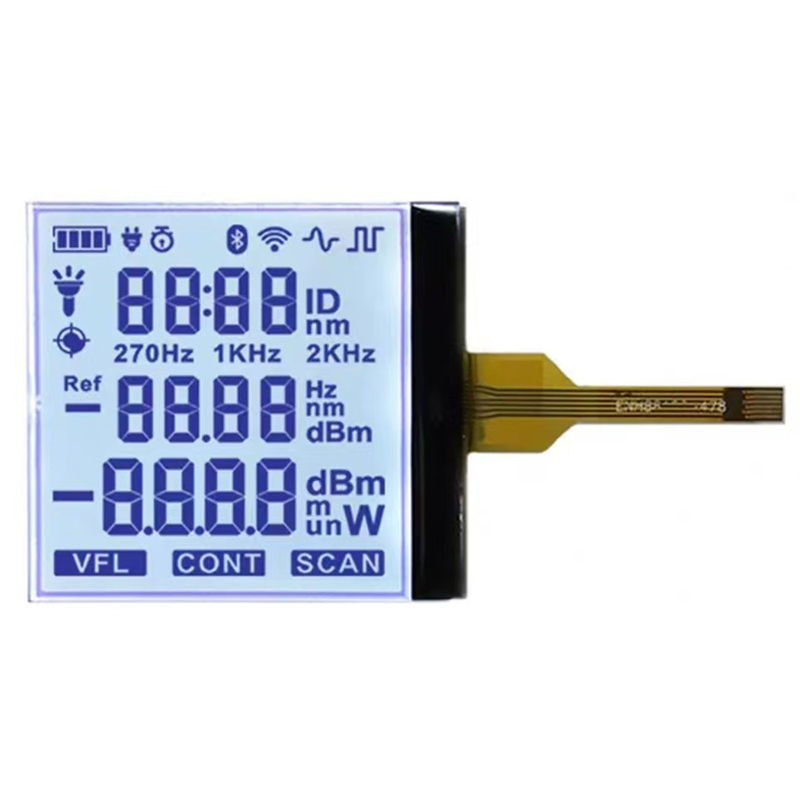

COG segment LCD (Chip-on-Glass Segment Liquid Crystal Display) is a liquid crystal display technology that directly binds the driver chip (IC) to a glass substrate. It has the characteristics of high integration, light weight, low power consumption and low cost.
COGSegment display uses anisotropic conductive adhesive (ACF) to encapsulate the driver IC on the liquid crystal glass, and interconnect the IC conductive bumps with the ITO (indium tin oxide) conductive pads on the glass, thereby simplifying the module structure and reducing the thickness. Its core structure includes components such as liquid crystal glass, ITO circuit, electromagnetic shielding film and waterproof sealing ring. Some high-end models will also integrate LCD driver chips to improve response speed. COG binds IC to glass, while COB (Chip-on-Board) encapsulates IC on PCB. The former is lighter and thinner but has higher maintenance costs. The power connection of the product can be pins, conductive adhesive strips, FPC, and the shape of the pins can be customized, which can be used as a touch screen. The product material standards meet ROSH REACH requirements.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 20-120 Customized |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Segment LCD /Negative/Positive Customized |
| Viewing angle direction | Customized |
| Operating voltage | 2.5V-5V |
| Viewing angle range | 120° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customized |
| Display color | Customized |
| Transmittance type | Transmissive/ Reflection /Transflective Customized |
| Operating temperature | -40-90℃ |
| Storage temperature | -40-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
| Keywords：STN LCD/LCD display screen/LCD 16x2/LCD display 16x2/i2c LCD display/ips lcd/Dot matrix display/LCD dot matrix display/mini LCD screen/LCD1602/r LCD/LCD 12864/LCD backlight | |
Product description: VA LCD type is widely used in industrial instruments, industrial...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Product description: mini oled display module, resolution 64*32, I2C interface, ultra...
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the I2C interface and is used to display various images and texts.
Product description: Antistatic LCD is a liquid crystal display with antistatic funct...
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
This product is a 320240 LCD dot matrix display that can display graphics with 320 columns x 240 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Segment LCD products are widely used in medical instruments such as blood glucose meters, blood p...
Diffusion film LCD converts point light source or line light source (such as LED or CCFL) into uniform surface light source to ensure the brightness and color uniformity of LCD display. The light source of LCD motherboard with diffusion film can directly use LED lamp beads to reduce the cost of backlight source, and can also effectively cover the dots or other optical defects on the light guide plate, so that the brightness of LCD display is more uniform.
Product description: The light source of the translucent LCD segment code LCD screen ...
Product description: HTN LCD products have high contrast, wide viewing angle, clear d...
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
This product is a 128128 LCD dot matrix display that can display graphics with 128 columns x 128 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses an STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and uses a COG production process. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU via the SPI interface and is used to display various images and texts.
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: TN LCD, HTN LCD, STN LCD, FSTN LCD, VA LCD, compared with other ...
