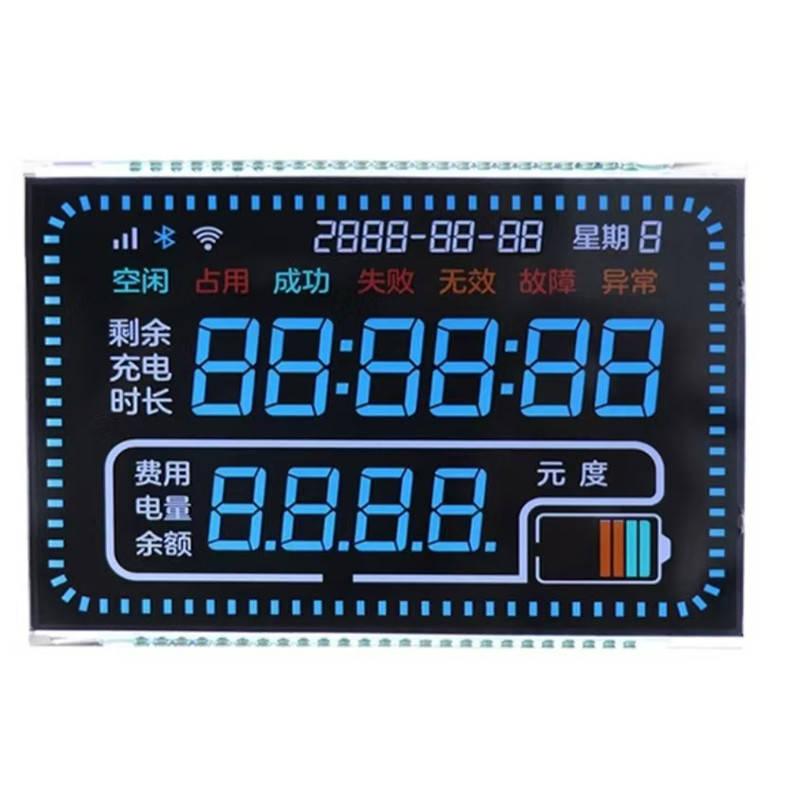

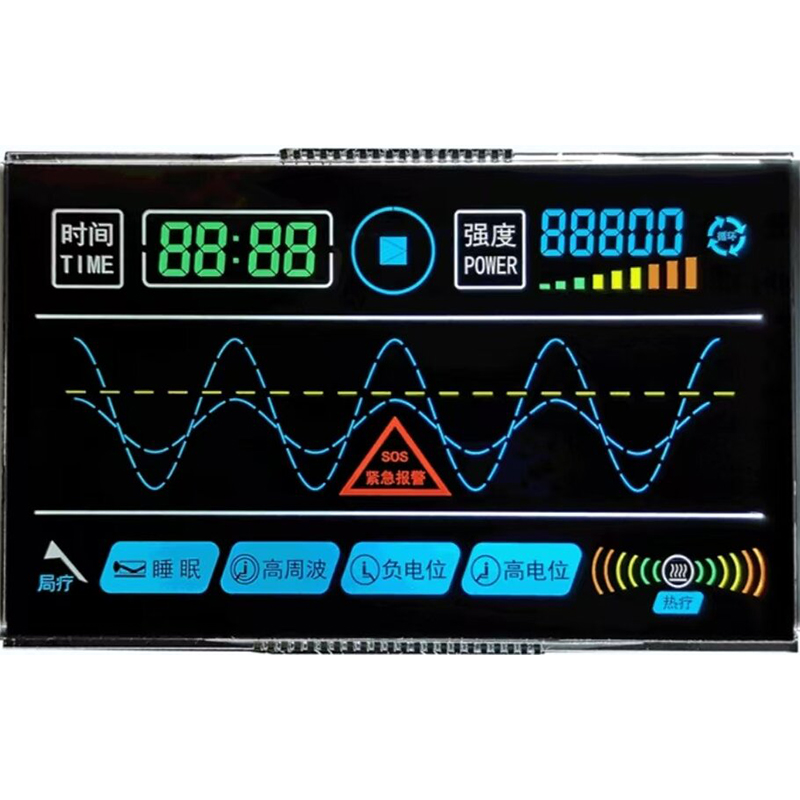

Color film LCD is a color film combined with a fully transparent LCD to present color display content. For fixed display content, it can present the effect of a TFT color screen, and can be customized in special shapes. The price is much lower than that of a TFT color screen, the power consumption is low, and the high and low temperature performance is better than TFT. Color film LCD is usually in negative display mode and is used in combination with a backlight.
Color film LCD segment code screen can display color effects, present the display effect of TFT, and can also be customized in special shapes. Compared with TFT, it has low cost, low power consumption, and wide high and low temperature range. It can also be used in conjunction with TFT. It is widely used in vehicle instruments, medical equipment, laboratory equipment, and home appliances.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 20-120 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Segment LCD /Negative |
| Viewing angle direction | 6 0’ CLOCK Customization |
| Operating voltage | 2.5V-5V Customization |
| Viewing angle range | 20-150°Customization |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customization |
| Display color | Customization |
| Transmittance type | Transmissive |
| Operating temperature | -40-90℃ |
| Storage temperature | -40-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
