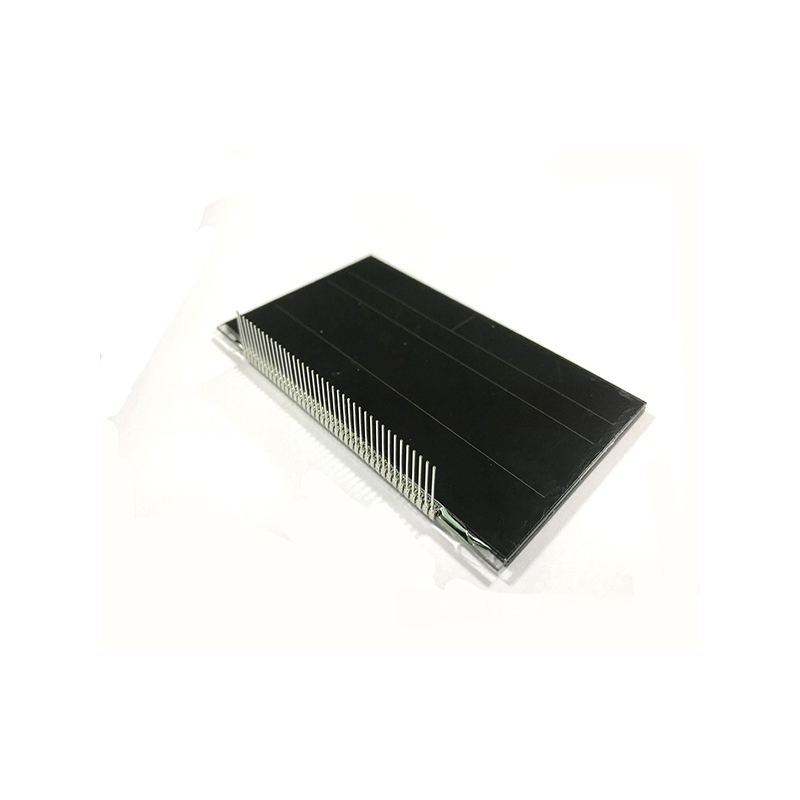

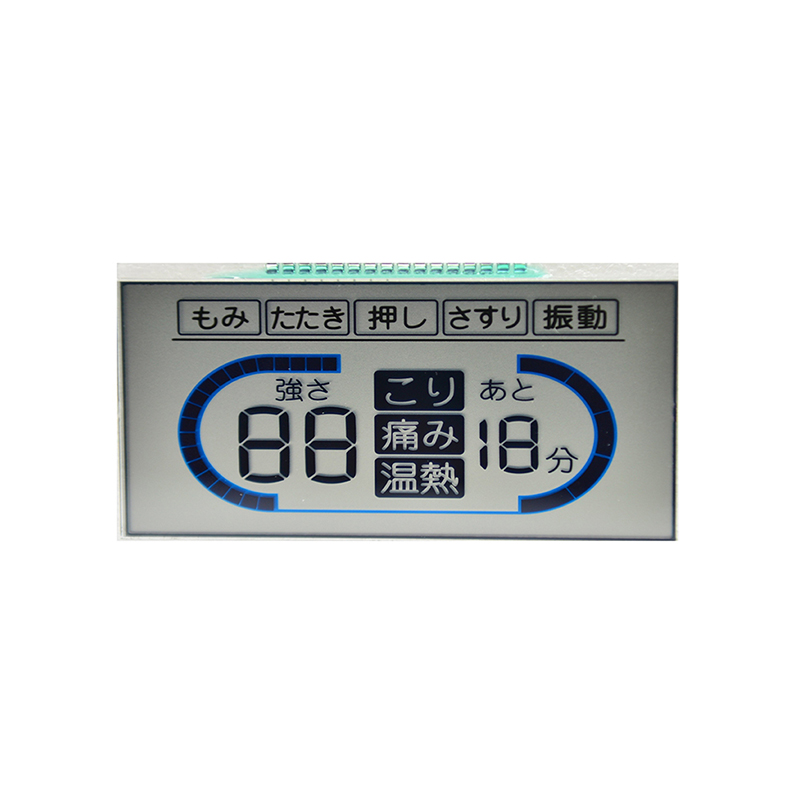

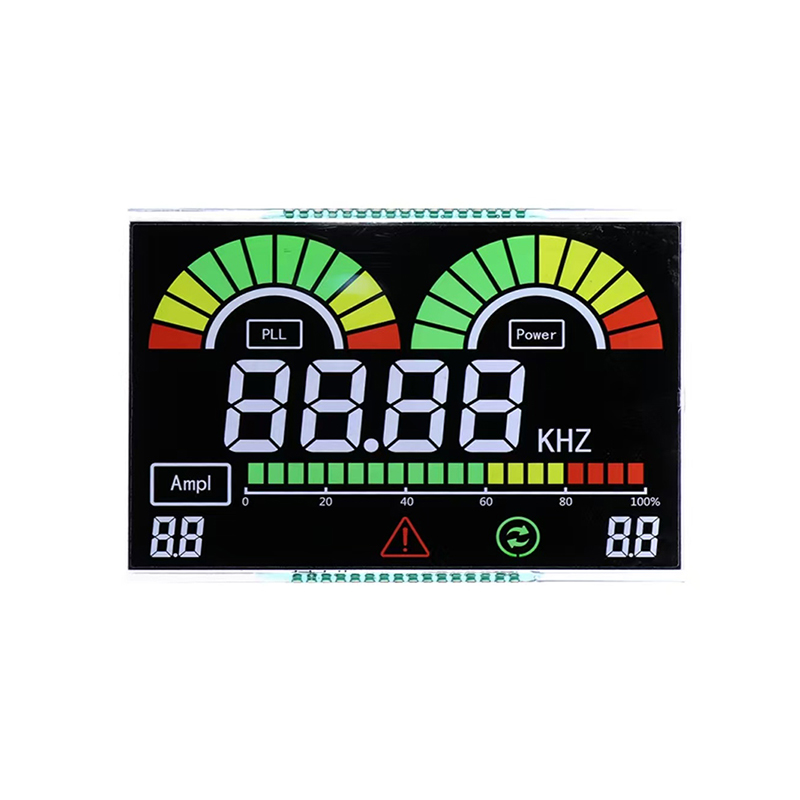

The Color Printing LCD Segment Display achieves monochrome, color, and gradient effects by applying ink to the surface of polarizers through screen printing or inkjet printing processes. It is widely used in industrial instruments, medical equipment, consumer electronics, and other fields.
The Color Printing LCD Segment Display is a process that transfers ink to the lower surface of an LCD screen through screen printing or inkjet printing technology to achieve specific patterns and color displays. Colors can be customized according to Pantone color numbers, and gradient effects can be realized. This technology enhances the aesthetic appeal and recognizability of products. By printing constant display content on the screen, power consumption can be reduced. The Color Printing LCD Segment Display is widely used in automotive products and medical devices. An LCD with color printing can deliver display effects similar to TFT screens and can also be used in combination with TFT displays. The other performance features of Color Printing LCDs are entirely consistent with standard LCD screens and can pass high-intensity environmental tests. They also meet the parameter requirements for industrial, medical, automotive, and home appliance applications. All products comply with the RoHS 2.0 directive and REACH regulations.
| Manufacturer | Eastern Display |
| Display mode | VA /TN/HTN |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -30℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100000 H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Color display effect |
Key Words: Silk screen LCD / LCD/VA LCD/TN LCD /display screen/ Special-shaped LCD/mini LCD screen/LCD glass/Low cost LCD/Color Segment LCD
