Product description: Compared with TN LCD, HTN LCD, STN LCD, and FSTN LCD, VA LCD has the advantages of high contrast LCD, good wide temperature characteristics, and wide viewing angle. Compared with LED segment display, it has the characteristics of rich display content and fine display content. It is widely used in automotive instruments, engineering machinery and other fields. With multi-color silk screen printing and color gradient effects, it can achieve the same display effect as TFT LCD screen. It can also customize special-shaped LCDs for customers, such as round LCD display. It has simple driving circuits, can realize Serial LCD or Parallel LCD driving, stable performance,...
Compared with TN LCD, HTN LCD, STN LCD, and FSTN LCD, VA LCD has the advantages of high contrast LCD, good wide temperature characteristics, and wide viewing angle. Compared with LED segment display, it has the characteristics of rich display content and fine display content. It is widely used in automotive instruments, engineering machinery and other fields. With multi-color silk screen printing and color gradient effects, it can achieve the same display effect as TFT LCD screen. It can also customize special-shaped LCDs for customers, such as round LCD display. It has simple driving circuits, can realize Serial LCD or Parallel LCD driving, stable performance, long life, low power LCD, low cost LCD and other characteristics.
EASTERN DISPLAY is a professional LCD Manufacturer with nearly 30 years of experience in designing and producing custom segment displays for automotive customers. Its products meet the requirements of automotive-grade LCD, Energy meter LCD, and Elevator LCD. The company has passed ISO90001 and IATF16949 certifications, and its products comply with EU ROHS and REACH standards. It is a strategic partner of commercial vehicles and passenger vehicles such as HAVAL, CHERY, LEAPMOTOR, GEELY, DFAC, Wuling Automobile, KING LONG, Yutong Bus, FAW, ZOOMLION-MAZ, and SANY.
| Manufacturer | EASTERN DISPLAY |
| LCD model | custom lcd segment display |
| LCD display mode | VA LCD |
| Driver chip | Serial LCD or Parallel LCD |
| Connection method | Flexible circuit board FPC or metal pin PIN |
| Viewing angle | 12 points |
| Operating voltage | 5.0V |
| Backlight type | High brightness LED backlight |
| Backlight color | White |
| Operating temperature | -40-85 degrees Celsius |
| Storage temperature | -40-90 degrees Celsius |
| Performance characteristics | Anti-glare, anti-vibration, multiple colors, long life, automotive grade LCD, ultra-wide temperature |
| ROHS | Comply with |
| REACH | Comply with |
| LCD characteristics | High responsiveness, high brightness, High contrast LCD, wide viewing angle, multiple colors, color screen LCD |

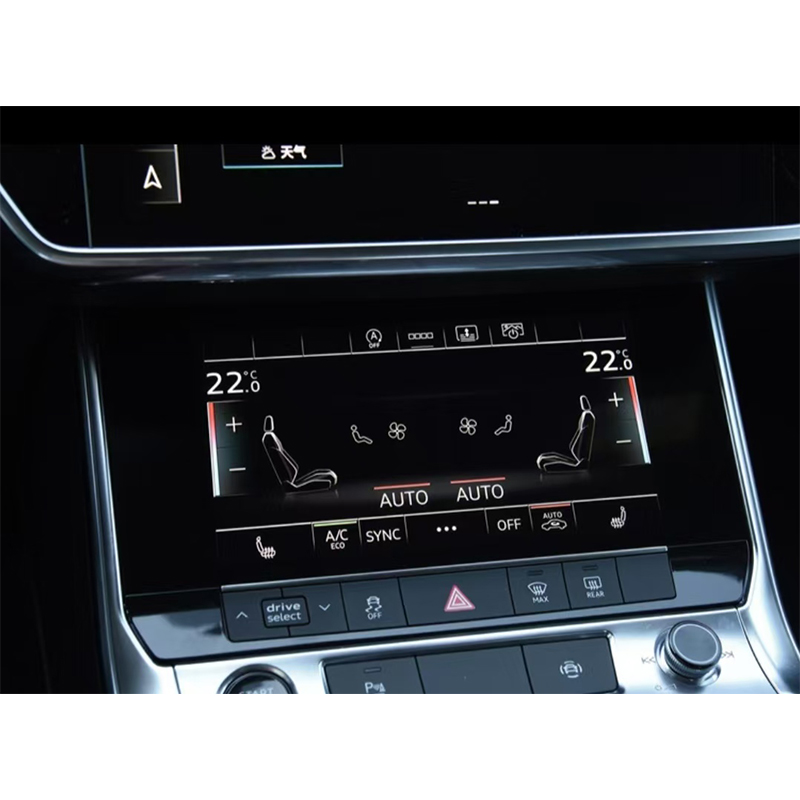

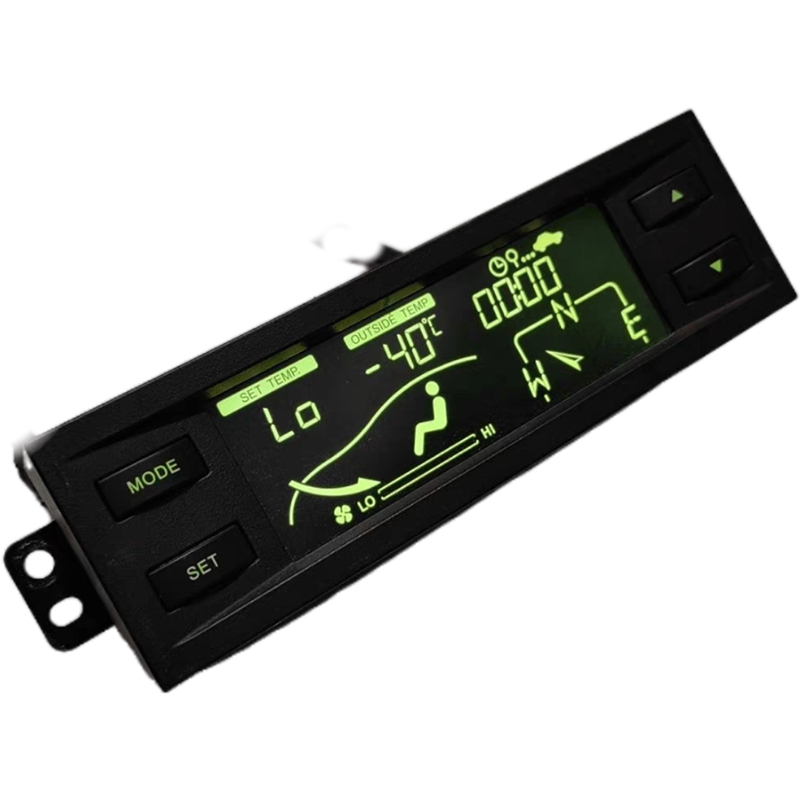

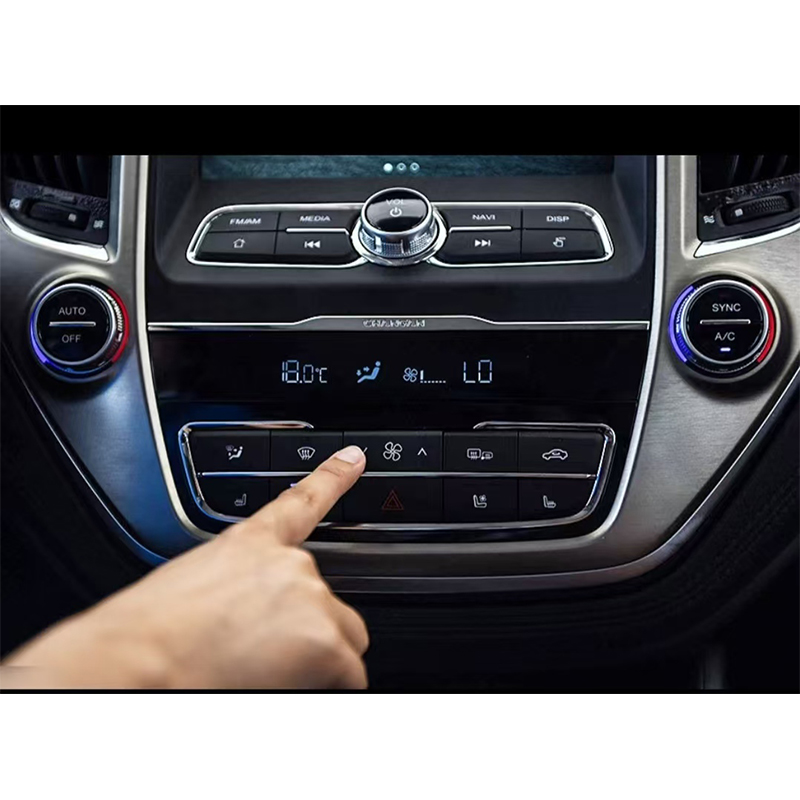

| Suitable application areas and scenarios | Car air conditioning controller |
| Keywords:digital segment display/small lcd/lcd panel price/lcd screen tester/lcd monitor tester/mechanical segment display/lcd led tester/test monitor lcd | |
DFSTN (Double-layer Super Twisted Nematic) LCD is a super twisted nematic display technology based on a double-layer compensation film. The product needs to be used in conjunction with a backlight, has the characteristics of high contrast, wide viewing angle, and is suitable for dynamic display. It is widely used in medical equipment, industrial equipment, consumer electronics and other fields.
