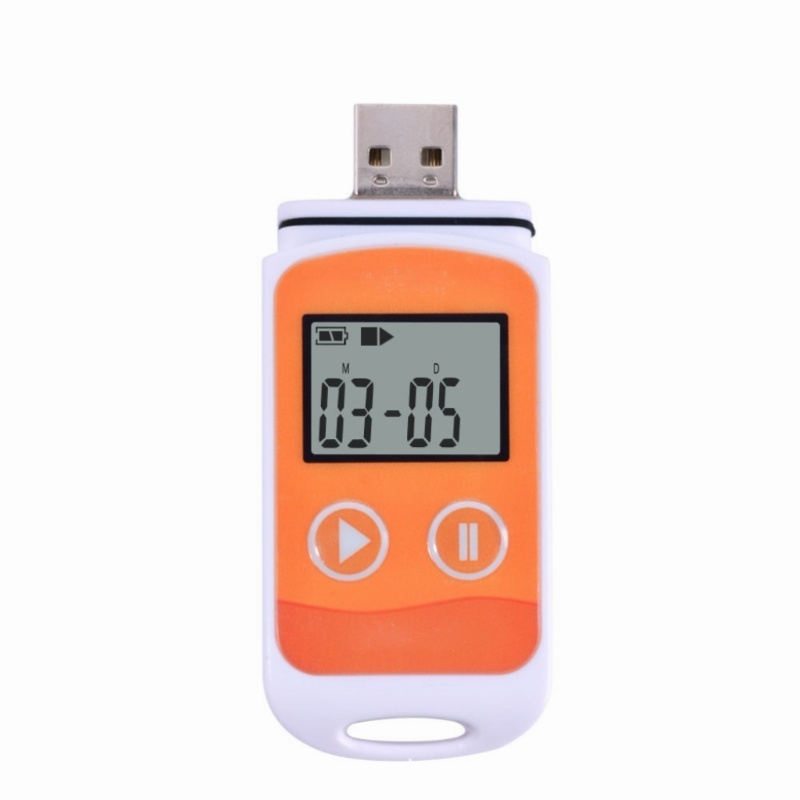

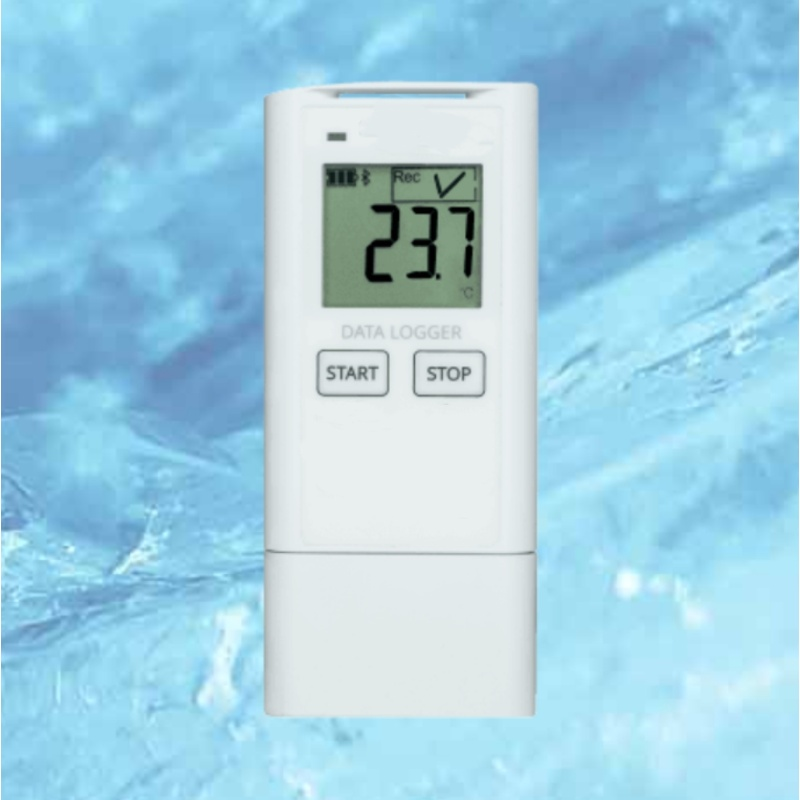

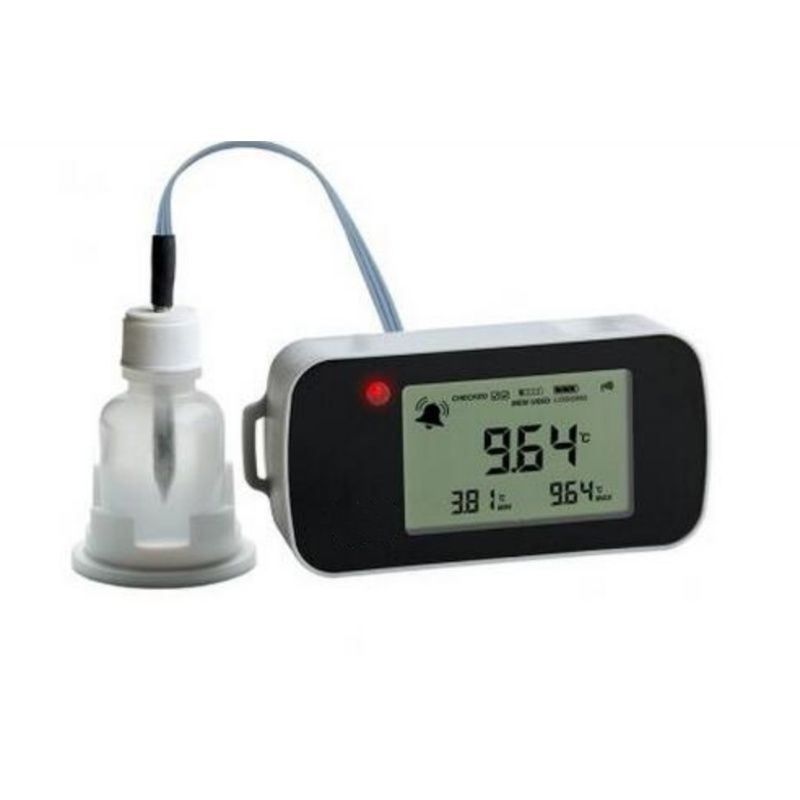

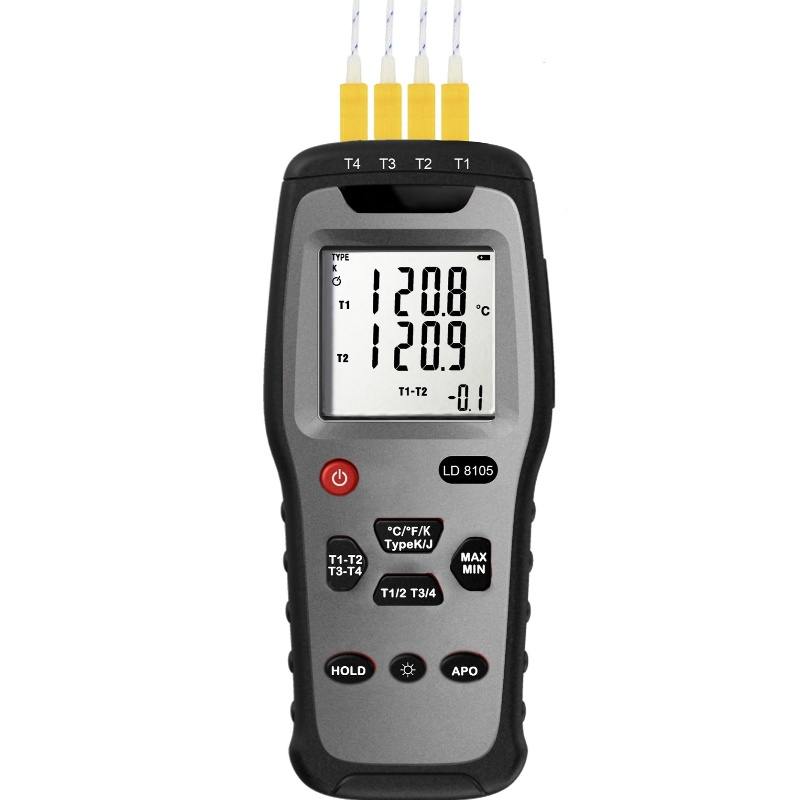

Data loggers are widely used in industrial control, environmental monitoring, medical equipment, vehicle systems and other fields for recording various physical quantities (e.g., temperature, pressure, flow, voltage, current, etc.) for a long time and in a stable manner. When choosing a display solution for them, segment code LCD is a very common and highly advantageous choice. This product is a customized segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC. this type of LCD module has a wide range of operating temperatures, thin and lightweight structure, simple to use, good display effect, stable performance and so on.
The data logger adopts COG segment code LCD display, which has special advantages.
EASTERN DISPLAY has supplied thousands of customized segment LCD displays to customers in Russia, Japan, China, Europe and other countries/regions, with an annual supply of more than 10 million pieces. We have accumulated a wealth of technical experience and are able to consistently and steadily provide our customers with high quality, low cost customized segment LCD displays.
| Manufacturer | EASTERN DISPLAY |
| Product Model | Customized |
| Display Content | Segment LCD |
| Display Color | Gray background，black display |
| Interface | SPI LCD |
| Driver Chip Model | LCD controller Customized |
| Manufacturing Process | COG LCD Module |
| Connection Method | PIN |
| Display Type | TN LCD，Positive，Reflective |
| Viewing Angle | 6 O'clock |
| Working Voltage | 3V |
| Backlight Type | No LED backlit |
| Backlight Color | No LCD backlight |
| Operating Temperature | -40-80℃ |
| Storage Temperature | -40-80℃ |
