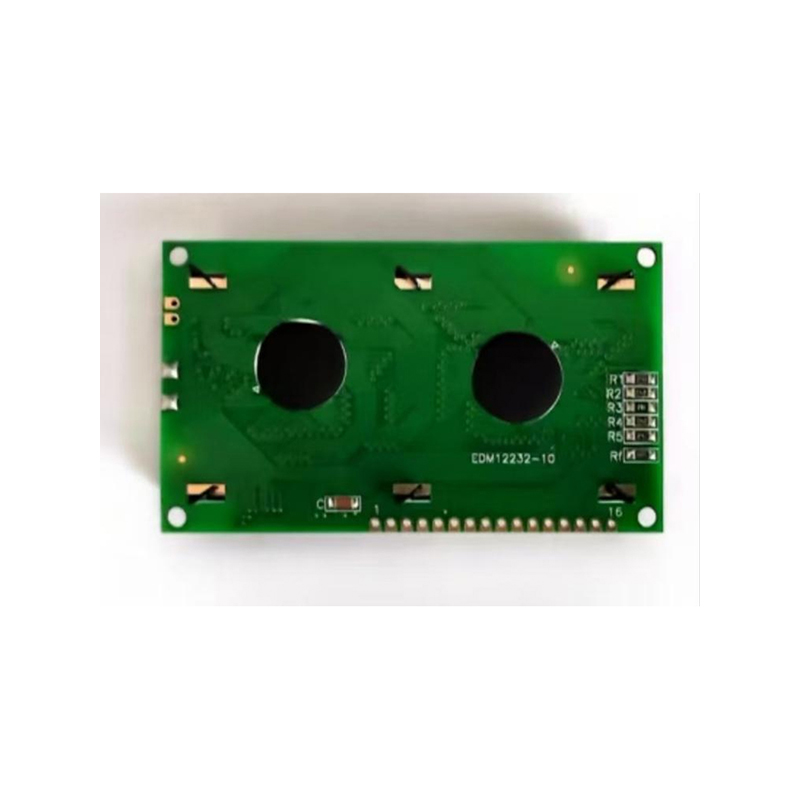

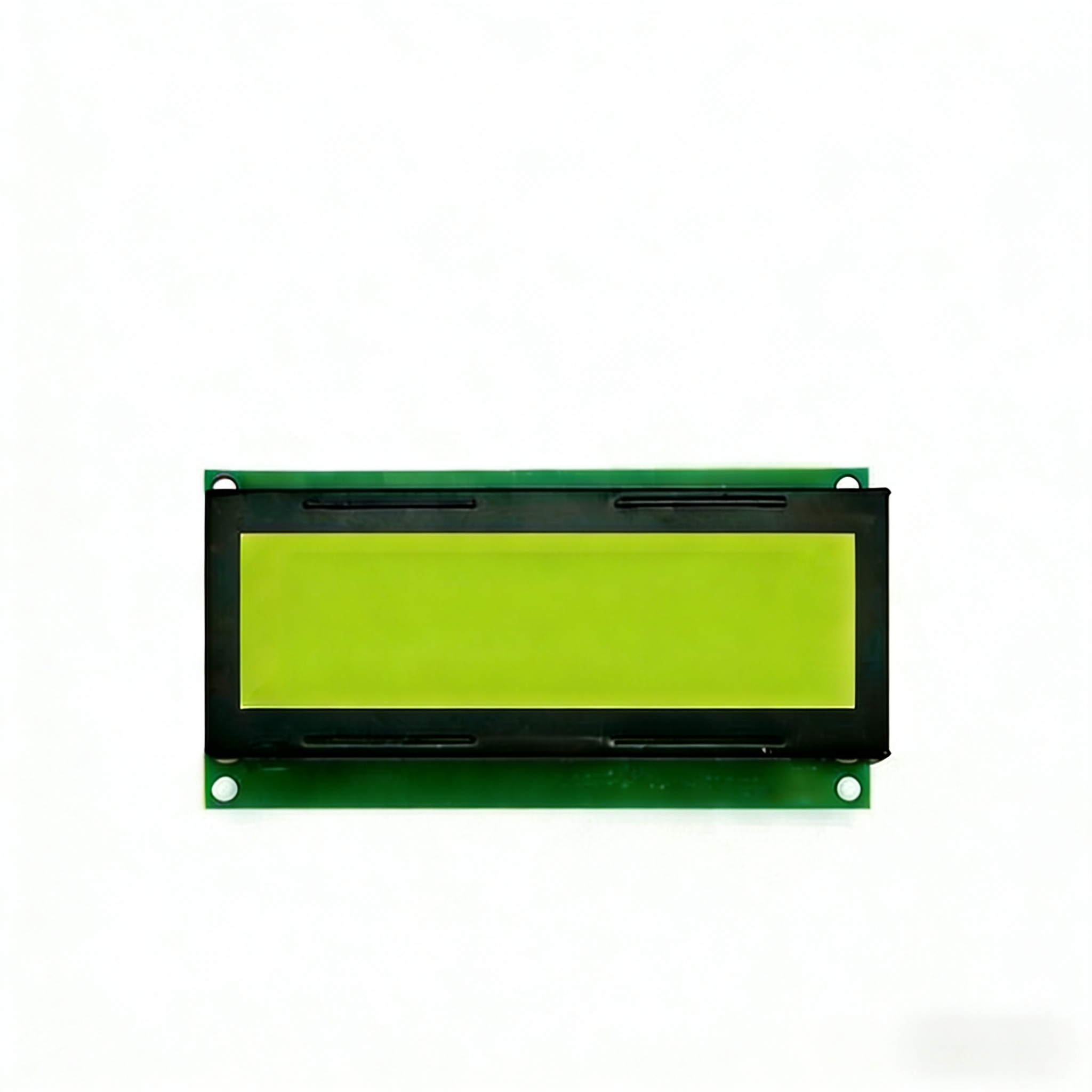

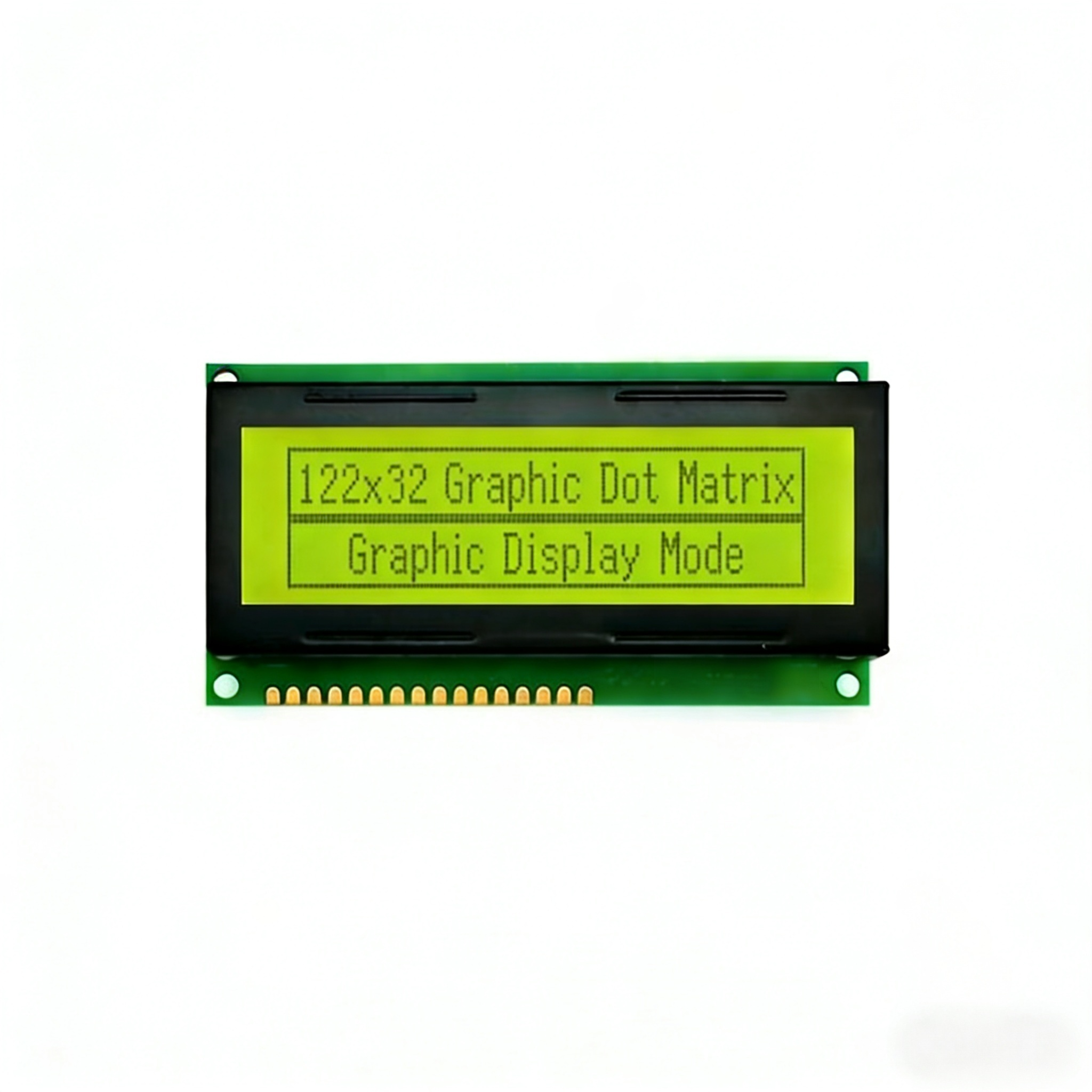

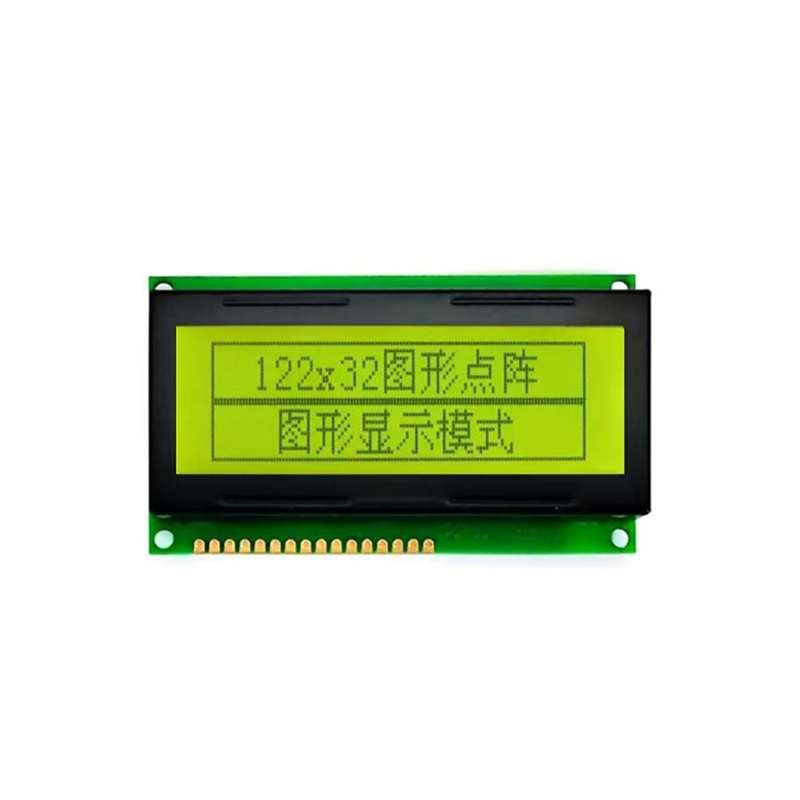

This product is a 12232 LCD dot matrix display capable of rendering graphics with a resolution of 122 columns × 32 rows. The display utilizes an STN yellow-green mode LED backlit LCD, featuring a yellow-green background with black characters, high contrast, and a wide viewing angle. The module incorporates a dedicated driver chip, employs COB (Chip-on-Board) production technology, and connects to the main control MCU via an 8-bit parallel LCD interface for displaying various images and text.
This product is a 12232 LCD, capable of rendering graphics with a resolution of 122 columns × 32 rows. The display utilizes an STN yellow-green mode LED backlit LCD, featuring a yellow-green background with black characters, achieving high contrast and a wide viewing angle. The module incorporates a dedicated driver chip, employs COB (Chip-on-Board) production technology, and connects to the main control MCU via an 8-bit parallel LCD interface for displaying various images and text. Such graphic dot matrix display modules are available in various resolutions, including 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, and 320×240. Customers can select different LCD backlight and glass screen combinations based on their product requirements.
| Manufacturer | Eastern Display |
| Product model | EDM12232-10 |
| Display content | 122x32dot matrix display |
| Background | Yellow-green |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD controller NJU6450 |
| Module type | COB LCD Module |
| Connection | Zebra |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | Yellow-green |
| Operating temperature | 0-50℃ |
| Storage temperature | -20-60℃ |
Keywords：Graphic dot matrix display/LED backlight LCD/Parallel LCD/COB LCD
module/STN LCD/LCD display module/LCD module
