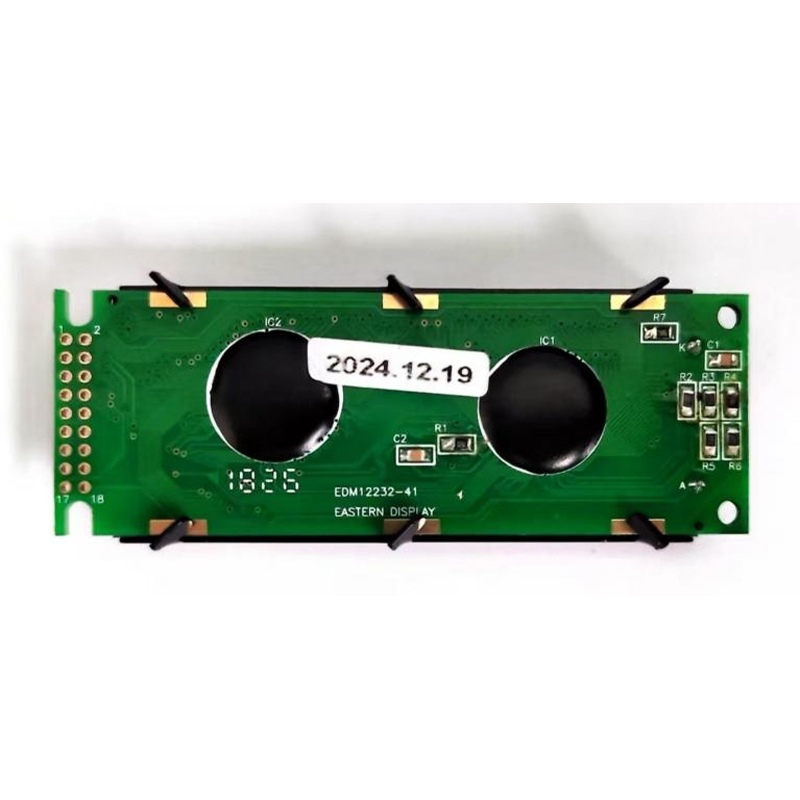

This product is a 12232 LCD dot matrix display that can display graphics with 122 columns x 32 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
This product is a 12232 LCD that can display graphics with 122 columns x 32 rows of pixels. The display screen uses STN yellow-green mode LED backlit LCD to display black text on a yellow-green background, achieving high contrast and wide viewing angle display. The module contains a dedicated driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM12232-10 |
| Display content | 122x32 dot matrix display |
| Display color | Yellow-green background，black dots |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD controller AIP31520 |
| Production process | COB LCD Module |
| Connection method | Zebra |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | Yellow-green LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses an STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and uses a COG production process. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU via the SPI interface and is used to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
This product is an LCD 16×2 character dot matrix display module, which is used for ASCII character display, with 2 lines and 16 characters each. The display screen uses STN yellow-green mode LED backlit LCD, which displays black characters on a yellow-green background, with high contrast and wide viewing angle. The module contains the ST7066 universal character driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface, which is easy to use.
