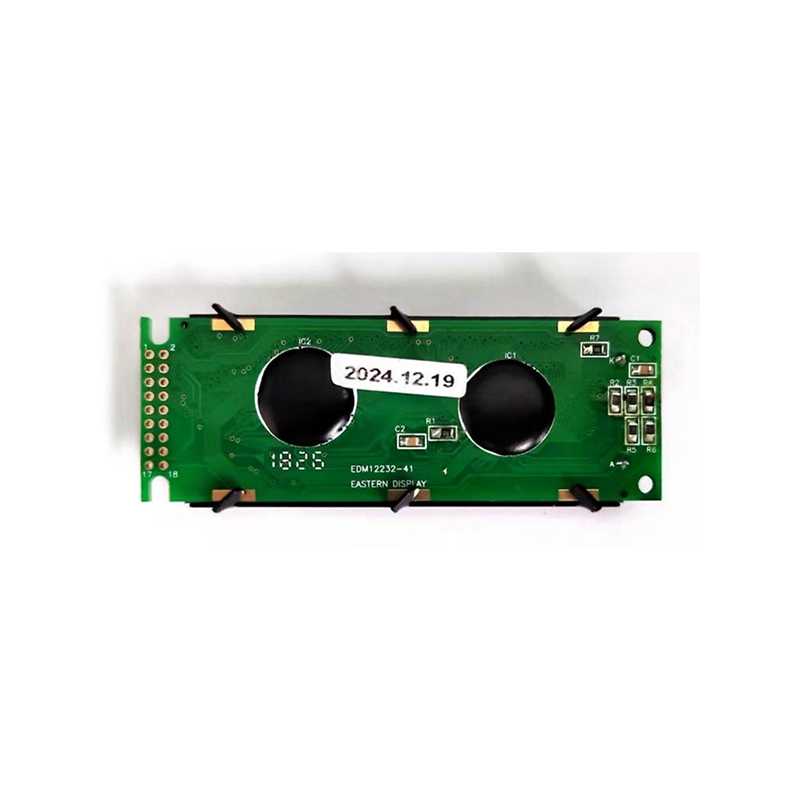

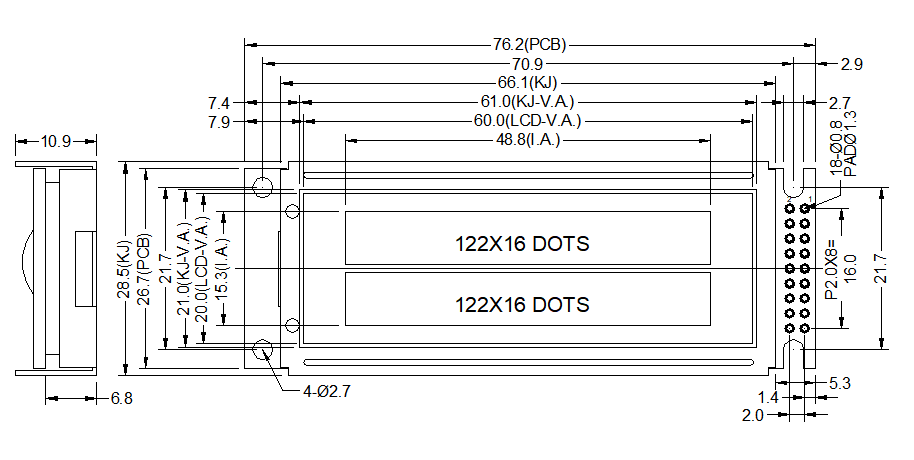

This product is a 12232 LCD dot matrix display capable of rendering graphics at a resolution of 122 columns × 32 rows. The screen employs an STN yellow-green mode LED-backlit LCD, which presents black characters on a yellow-green background, delivering high contrast and wide viewing angles. The module includes an integrated driver chip and is manufactured using COB (Chip-on-Board) technology. It connects to the main control MCU via an 8-bit parallel LCD interface, enabling the display of various images and text.
This product is a 12232 LCD display, capable of rendering graphics at a resolution of 122 columns × 32 rows. The screen utilizes an STN yellow-green mode LED-backlit LCD, displaying black characters on a yellow-green background to achieve high contrast and a wide viewing angle. The module incorporates a dedicated driver chip and is produced using COB (Chip-on-Board) manufacturing technology. It connects to the main control MCU through an 8-bit parallel LCD interface, allowing the display of various images and text. Such graphic dot matrix displays are available in resolutions such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, and 320×240. Customers can also select different LCD backlights and glass screen combinations based on product requirements.
| Manufacturer | Eastern Display |
| Product model | EDM12232-41 |
| Display content | 122x32dot matrix display |
| Background | Yellow-green |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD controller AIP31520 |
| Module type | COB LCD Module |
| Connection | Zebra |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | Yellow-green |
| Operating temperature | -20~70℃ |
| Storage temperature | -30-80℃ |
Keywords：Graphic dot matrix display/LED backlight LCD/Parallel LCD/COB LCD
module/STN LCD/LCD display module/LCD module
