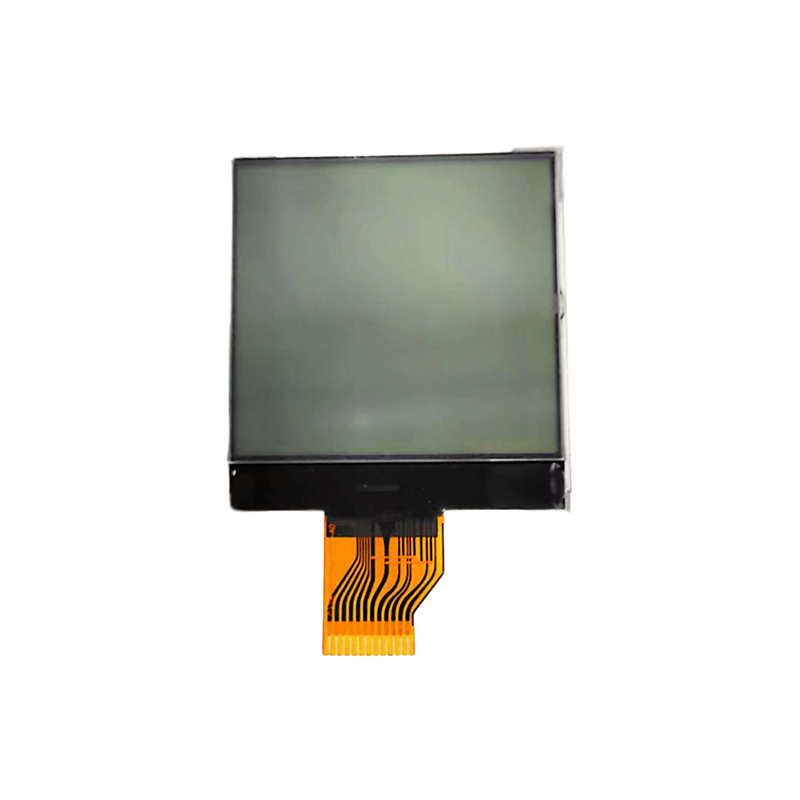

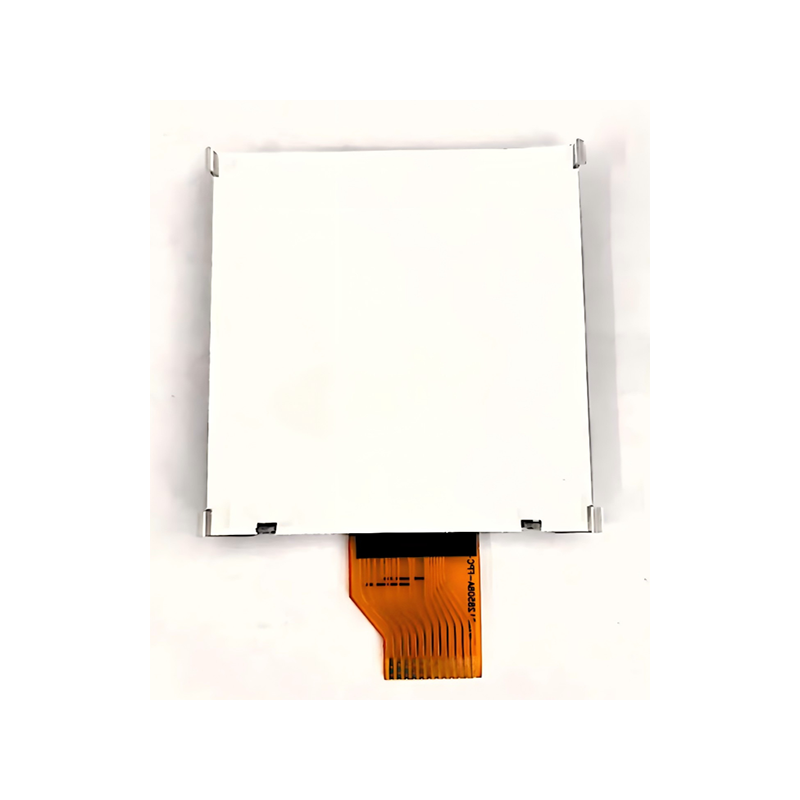

This 128128 LCD dot-matrix display features 128 columns x128 rows of pixels. Operating in FSTN mode with a white LED backlight, it delivers high contrast and wide viewing angles for blue-black text on a gray background. The module incorporates a driver chip manufactured using COG technology, ensuring lightweight design and low power consumption. Connected via an SPI interface LCD port to the main MCU, it enables versatile image and text display.
This product is a 128x128 LCD dot matrix display capable of displaying graphics with 128 columns x128 rows of pixels. The screen employs FSTN technology paired with white LED backlighting, delivering high contrast and wide viewing angles for blue-black text on a gray background. The module contains a driver chip manufactured using COG production technology, ensuring lightweight design with low power consumption and moderate cost. Connected via SPI interface to the main MCU, it supports displaying various simple images and text, making it widely applicable in industrial control equipment, medical devices, portable testing devices, consumer electronics, and smart home control panels. This graphic dot matrix display offers multiple resolution options including 128x64,128x128,160x160,160x32,160x80,192x64,240x64,240x128, and 320x240 modules. Customers can select different LCD backlight combinations and glass screen configurations according to their product requirements.
| manufacturer | EASTERN DISPLAY |
| product model | EDM128128-23 |
| Display content | 128x128 dot matrix display |
| display color | Gray background，black-blue dots |
| joggle | SPI interface LCD |
| Drive chip model | LCD controller UC1617SGAA |
| production engineering | COG LCD Module |
| attended mode | FPC |
| display type | FSTN LCD，Positive，Transflective |
| angle of view | 6 O'clock |
| working voltage | 3V |
| Backlight type | LED backlit |
| Backlight color | White LCD backlight |
| working temperature | -20~70℃ |
| storage temperature | -30~80℃ |
