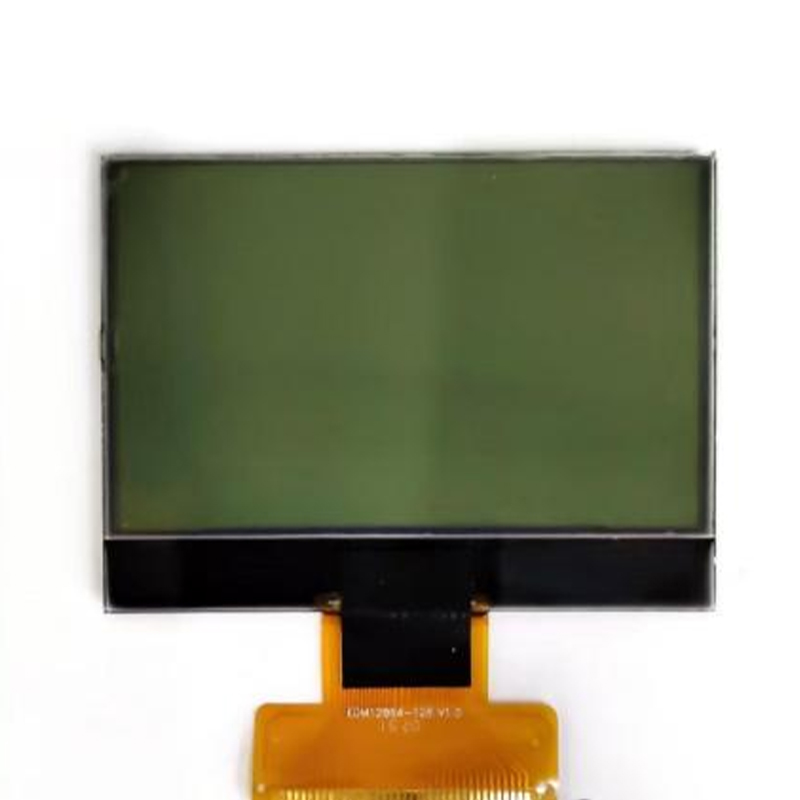

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light with low power consumption. It is connected to the main control MCU via SPI interface or 8-bit parallel LCD interface to display various images and texts. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM12864-128 |
| Display content | 128x64 dot matrix display |
| Display color | Gray background，black-blue dots |
| Interface | SPI interface/8-bit parallel LCD |
| Driver chip model | LCD controller ST7565P |
| Production process | COG LCD Module |
| Connection method | FPC |
| Display type | FSTN LCD，Positive,Transmissive |
| Viewing angle | 6 O'clock |
| Operating voltage | 3V |
| Backlight type | Without LED backlit |
| Backlight color | White LCD backlight |
| Operating temperature | -10~60℃ |
| Storage temperature | -20~70℃ |
Product description: 7-inch TFT display uses automotive-grade LCD and backlight mater...
Product description: Super-large segment screens usually refer to LCD segment screens...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
Product description: 2 inch tft display is a mini tft display, which adopts full-view...
Product description: Compared with TN LCD, HTN LCD, STN LCD, and FSTN LCD, VA LCD has...
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
Product description: HTN LCD products have high contrast, wide viewing angle, clear d...
Product description: HTN LCD types are widely used in industrial instruments, industr...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
Product description: STN LCD type is widely used in industrial instruments, industria...
Product description: This product is a mini TFT display with a resolution of 320*480,...
Product description: VA LCD products have high contrast, wide viewing angle, color an...
Product description: VA LCD products are widely used in industrial instruments, indus...

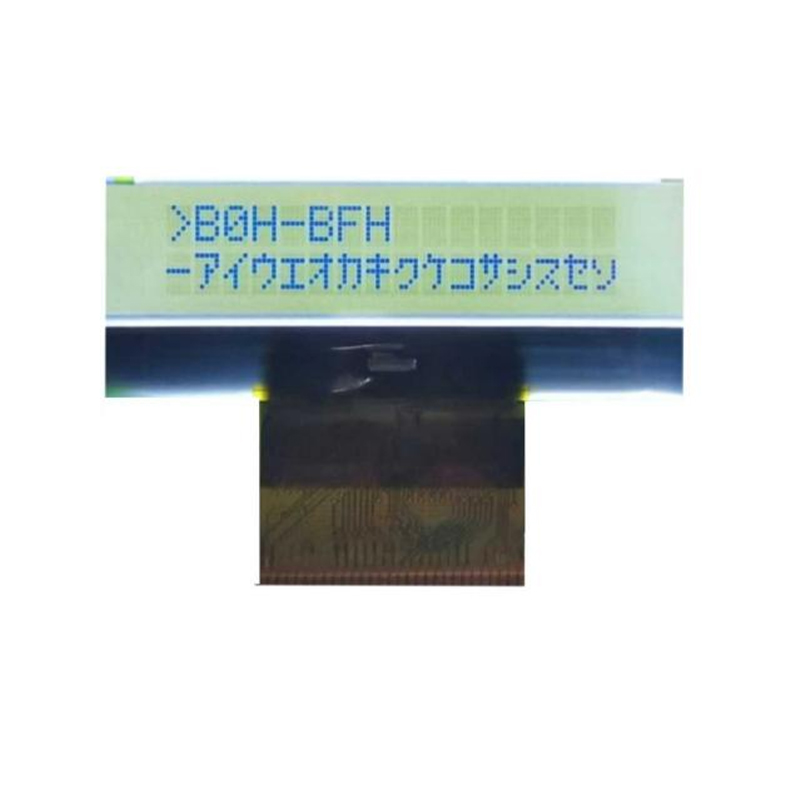

This product is an LCD 16×2 character dot matrix display module, which is used for ASCII character display, with 2 lines and 16 characters each. The display screen adopts FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a character driver chip, adopts COG production technology, is thin and light, and has low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface.

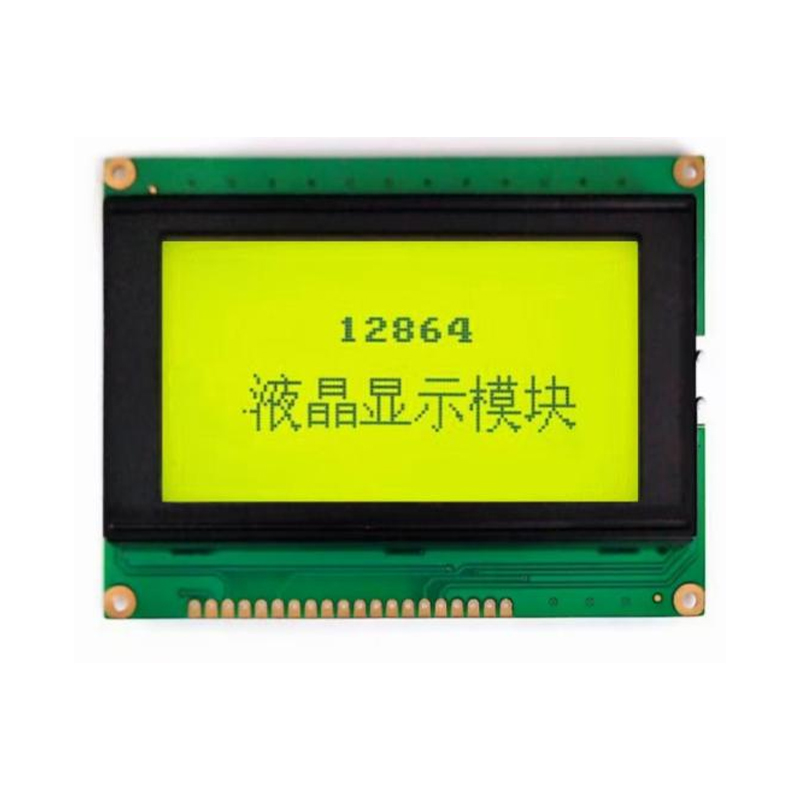

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
