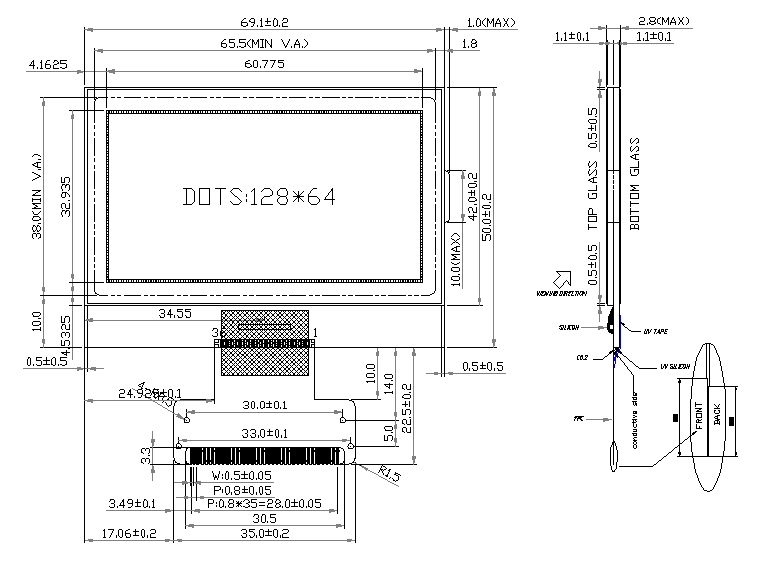

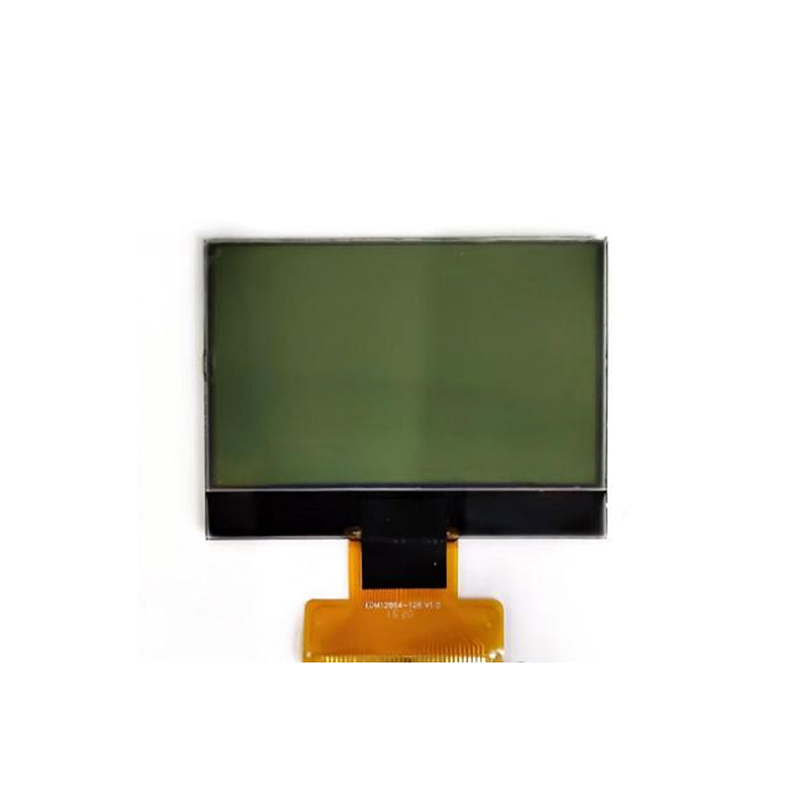

This product is a 12864 LCD dot matrix display capable of showing graphics with a resolution of 128 columns × 64 rows of pixels. The screen utilizes FSTN technology, featuring a gray background with blue-black characters, offering high contrast and a wide viewing angle. The module incorporates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design with low power consumption. It connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface, enabling the display of various images and text.
This product is a 12864 LCD dot matrix display capable of showing graphics with a resolution of 128 columns × 64 rows of pixels. The screen utilizes FSTN technology, featuring a gray background with blue-black characters, offering high contrast and a wide viewing angle. The module incorporates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design with low power consumption. It connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface, enabling the display of various images and text. For such graphic dot matrix displays, various resolutions are available, such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, and 320×240. Customers can select different types of LCD backlight and glass screen combinations based on their product requirements.
| Manufacturer | Eastern Display |
| Product model | EDM12864-128 |
| Display content | 128x64 dot matrix display |
| Background | Gray |
| Interface | SPI interface/8-bit parallel LCD |
| Driver chip model | LCD controller ST7565P |
| Module type | COG LCD Module |
| Connection | FPC |
| Display type | FSTN LCD，Positive，Transmissive |
| Viewing angle | 6 O'clock |
| Operating voltage | 3V |
| Backlight type | LED backlit required |
| Backlight color | White |
| Operating temperature | -10~60℃ |
| Storage temperature | -20-70℃ |
Keywords：Graphic dot matrix display/SPI interface LCD/Parallel LCD/COG LCD
module/FSTN LCD/LCD display module/LCD module
