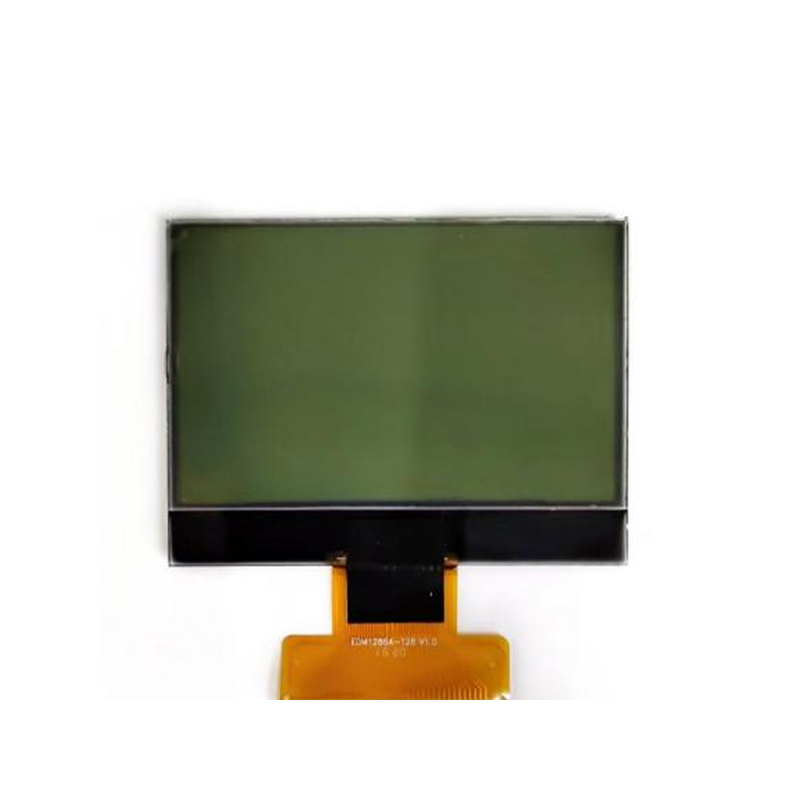

This product is a 12864 LCD dot matrix display capable of displaying graphics with a resolution of 128 columns × 64 rows. The screen adopts the FSTN mode, featuring a gray background with blue-black characters, high contrast, and a wide viewing angle. The module integrates a driver chip and utilizes COG production technology, making the product slim, lightweight, and low in power consumption. It connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface for displaying various images and text.
This product is a 12864 LCD dot matrix display capable of displaying graphics with a resolution of 128 columns × 64 rows. The screen adopts the FSTN mode, featuring a gray background with blue-black characters, high contrast, and a wide viewing angle. The module integrates a driver chip and utilizes COG production technology, making the product slim, lightweight, and low in power consumption. It connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface for displaying various images and text.
Such graphic dot matrix displays are available in various resolutions such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, and 320×240. Customers can select different types of backlight and LCD screen combinations according to their product requirements.
| Manufacturer | Eastern Display |
| Product model | EDM12864-129 |
| Display content | 128x64 dot matrix display |
| Background | Gray |
| Interface | SPI interface/8-bit parallel LCD |
| Driver chip model | LCD controller ST7565P |
| Module type | COG LCD Module |
| Connection | FPC |
| Display type | FSTN LCD，Positive，Transmissive |
| Viewing angle | 6 O'clock |
| Operating voltage | 3.3V |
| Backlight type | LED backlit required |
| Backlight color | White |
| Operating temperature | -20~70℃ |
| Storage temperature | -30-80℃ |
Keywords：custom segment display/LCD glass/LCD display/LCD display panel/Low power LCD/Energy meter LCD/Elevator LCD/Segment LCD
0.54-inch OLED display module is an ultra-compact, high-contrast solution designed for embedded systems and portable electronic devices. With a resolution of 96 x 32 pixels and an operating temperature range of -40 to 70°C, it enables clear information display within a minimal footprint. It is widely used in smart wearable devices, portable industrial instruments and meters, and controllers for small household appliances.
Segment LCDs are widely used in fishing equipment, serving as the human-machine interface (HMI) display for devices such as smart fishing reels, fish finders, remote controls for bait boats, fishing scales, and fishing tackle boxes. Segment LCDs feature low cost, low power consumption, and high reliability, making them highly suitable for displaying critical parameters like numbers and fixed symbols.
The 1.3‑inch OLED display features an ultra‑thin profile, high contrast ratio, and wide viewing angles. It adopts self‑emissive technology, requiring no backlight, which results in extremely low power consumption, and supports a wide temperature operation range from -40 ℃ to 70 ℃. The module is equipped with standard SPI/I2C interfaces, making it compatible with mainstream microcontrollers. It is widely used in applications such as smart wearable devices, industrial instrumentation, portable medical equipment, and smart home control panels.
Product description: LCD 12864 is widely used in industrial instruments, industrial c...
Product description: Segment LCD screen with built-in touch screen Touch LCD segment ...
LCDs for Medical Electronic Infusion Pumps An electronic infusion pump is a precision device widely used in the medical field. Its human-machine interface (HMI) typically utilizes Segment LCDs, Dot Matrix LCDs, or TFT LCDs. Among these, Segment LCDs are the most commonly used in infusion pumps. Segment LCDs offer advantages such as low cost, low power consumption, and high reliability, making them highly suitable for displaying critical parameters like flow rate and volume, which are often numerical values or fixed symbols.
LCD Display for Air Purifiers: Essential home air purifiers typically display real-time PM2.5 readings, formaldehyde (HCHO) levels, allergen concentrations, temperature/humidity readings or alerts, wind speed, operating modes, and emergency notifications. Some models feature touch-sensitive LCD interfaces. These devices usually come with backlighting for clear visibility in dim environments and are often equipped with color screen printing and tinted film for enhanced visual clarity.
Product Description: The rangefinder-specific LCD is a lens-compatible LCD display featuring a compact size, high contrast, shock resistance, durability, and excellent environmental adaptability. It requires high display accuracy to meet magnification inspection requirements, with edges remaining smooth and free of burrs even after 50x magnification. The product’s small size necessitates specialized fixtures and equipment for bonding polarizing films or chips, as well as FPC pressing.
This ultra-compact 0.49-inch Mini OLED display delivers clear, sharp, and high-contrast visuals, making it particularly suitable for space-constrained applications. Featuring wide viewing angles and low power consumption, it is widely used in portable wearable devices, smart accessories, and compact instrument displays. The module supports the I2C interface and offers stable, reliable performance.
Product description: This product is an industrial-grade TFT display with a resolutio...
FSTN is widely used in industrial instruments, industrial control equipment and communication equ...
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through SPI interface/I2C interface/Parallel LCD interface to display various images and texts. The product comes with a resistive LCD touch screen.
Product description: This product is a mini tft display with a resolution of 800*480,...
This product is a large-size dashboard TFT screen, featuring an IPS full-viewing-angle panel and LED backlight with 800 cd/m² brightness, ensuring clear visibility even in strong light environments. It supports a wide operating temperature range of -30℃ to 85℃. A capacitive touch panel and tempered cover glass can be laminated according to customer requirements. It offers clear display performance and meets the stringent demands of automotive application environments. It is widely used in new energy vehicle dashboards, robot displays, smart home appliances, and other fields.
VA LCD segment displays feature a black background with white characters, offering high contrast, a wide operating temperature range, broad viewing angles, and fast response times. They can be combined with color silk printing or color filter films to achieve TFT-like colorful display effects and can also be used in conjunction with TFT screens.
An I2C OLED display with a resolution of 128*64 and an I2C interface. Driver IC: SSD1309. The product features ultra-low power consumption, ultra-high contrast and viewing Angle, and an ultra-wide operating temperature range of-40 to 70 degrees Celsius.
