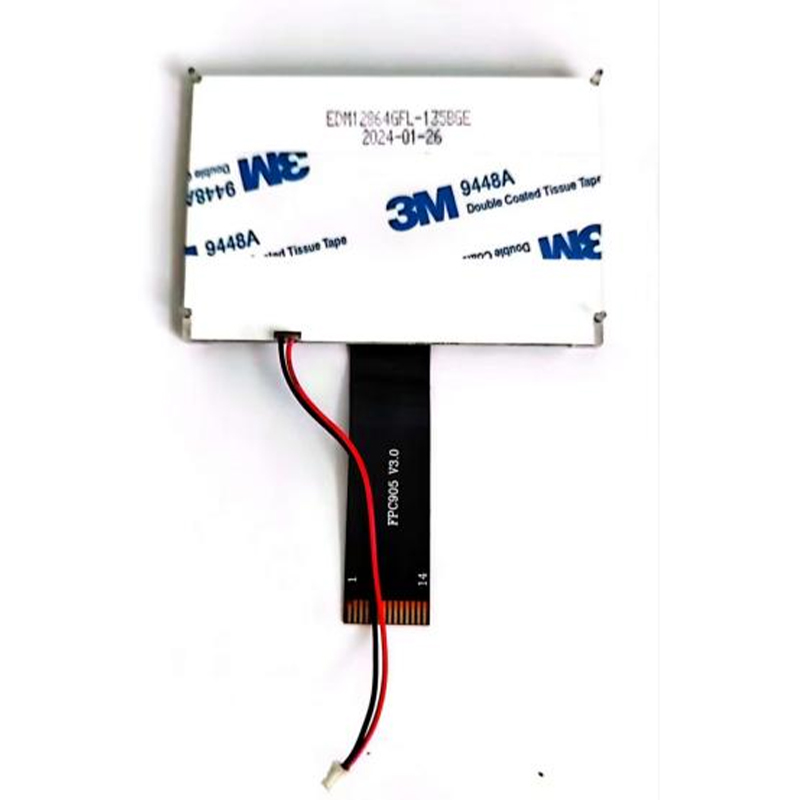

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light with low power consumption. It is connected to the main control MCU through the SPI interface to display various images and texts. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM12864-135 |
| Display content | 128x64 dot matrix display |
| Display color | Gray background，black-blue dots |
| Interface | SPI interface |
| Driver chip model | LCD controller ST7565R |
| Production process | COG LCD Module |
| Connection method | FPC |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 12 O'clock |
| Operating voltage | 3.3V |
| Backlight type | LED backlit |
| Backlight color | White LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
