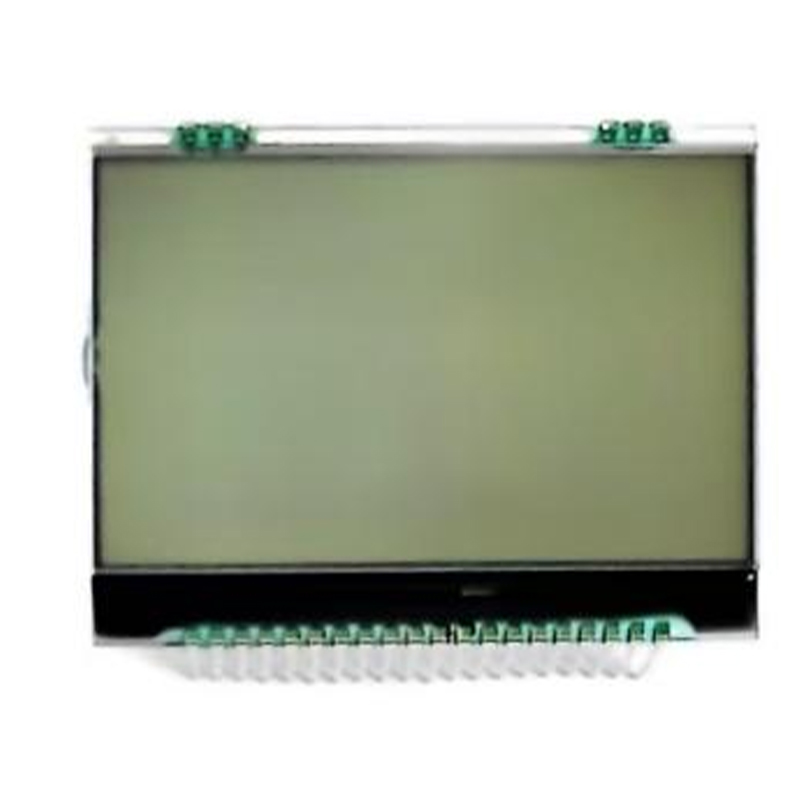

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light with low power consumption. It is connected to the main control MCU through the SPI interface to display various images and texts. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM12864-137 |
| Display content | 128x64 dot matrix display |
| Display color | Gray background，black-blue dots |
| Interface | SPI interface |
| Driver chip model | LCD controller ST7565R |
| Production process | COG LCD Module |
| Connection method | PIN |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 3.3V |
| Backlight type | Without LED backlit |
| Backlight color | White LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
Product description: 2.4 inch OLED display, resolution 128*64, parallel port or I2C i...
This product is a 320240 LCD dot matrix display that can display graphics with 320 columns x 240 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: 7-inch TFT display uses automotive-grade LCD and backlight mater...
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: Industrial OLED Display module, resolution 128*64, I2C interface...
FSTN LCD Film compensated STN has a wide viewing angle, suitable for multi-channel dynamic driving, more uniform background color than STN LCD, and suitable for displaying complex screens. It can achieve 320 channels, no crosstalk, and can be made into dot matrix.
Product description: HTN LCD products have high contrast, wide viewing angle, clear d...
Product description: Segment LCD is widely used in industrial instruments, industrial...
This product is an LCD 16×2 character dot matrix display module, which is used for ASCII character display, with 2 lines and 16 characters each. The display screen uses STN yellow-green mode LED backlit LCD, which displays black characters on a yellow-green background, with high contrast and wide viewing angle. The module contains the ST7066 universal character driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface, which is easy to use.
Color film LCD is a color film combined with a fully transparent LCD to present color display content. For fixed display content, it can present the effect of a TFT color screen, and can be customized in special shapes. The price is much lower than that of a TFT color screen, the power consumption is low, and the high and low temperature performance is better than TFT. Color film LCD is usually in negative display mode and is used in combination with a backlight.
Product description: 1.3 inch 128 * 64 oled display, 6800, 8080, 8-bit parallel port ...
This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the I2C interface and is used to display various images and texts.
Product description: This product is a mini TFT display with a resolution of 480*272,...
COG segment LCD (Chip-on-Glass Segment Liquid Crystal Display) is a liquid crystal display technology that directly binds the driver chip (IC) to a glass substrate. It has the characteristics of high integration, light weight, low power consumption and low cost.
This product is an LCD 16×2 character dot matrix display module, which is used for ASCII character display, with 2 lines and 16 characters each. The display screen adopts FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a character driver chip, adopts COG production technology, is thin and light, and has low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface.
