This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has low power consumption and a wide temperature range. It is connected to the main control MCU through the SPI interface to display various images and texts. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM12864-157 |
| Display content | 128x64 dot matrix display |
| Display color | Yellow-green background，black dots |
| Interface | SPI interface |
| Driver chip model | LCD controller ST7565R |
| Production process | COG LCD Module |
| Connection method | FPC |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 3.3V |
| Backlight type | LED backlit |
| Backlight color | Yellow-green LCD backlight |
| Operating temperature | -30~80℃ |
| Storage temperature | -40~85℃ |
Segment LCD products are widely used in medical instruments such as blood glucose meters, blood p...
Product description: This product is a mini tft display with a resolution of 800*480,...
Screen-printed LCD segment code LCD screens are designed with monochrome or color patterns through screen printing or inkjet printing, and are widely used in instrumentation, medical equipment, consumer electronics and other fields. Its wear resistance, customizability and environmental protection make it the preferred display solution for many industries
Product description: FSTN LCD is widely used in industrial instruments, industrial co...
Product description: VA LCD products have high contrast, can display multiple colors,...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Special-shaped pin LCD is a liquid crystal display screen with non-standard shapes or specially designed pins, usually used to meet specific assembly requirements or cope with special usage environments.
Product description: This product is an automotive instrument tft display, with a res...
Product description: 7-inch tft display supports wide operating temperature of -20℃~7...

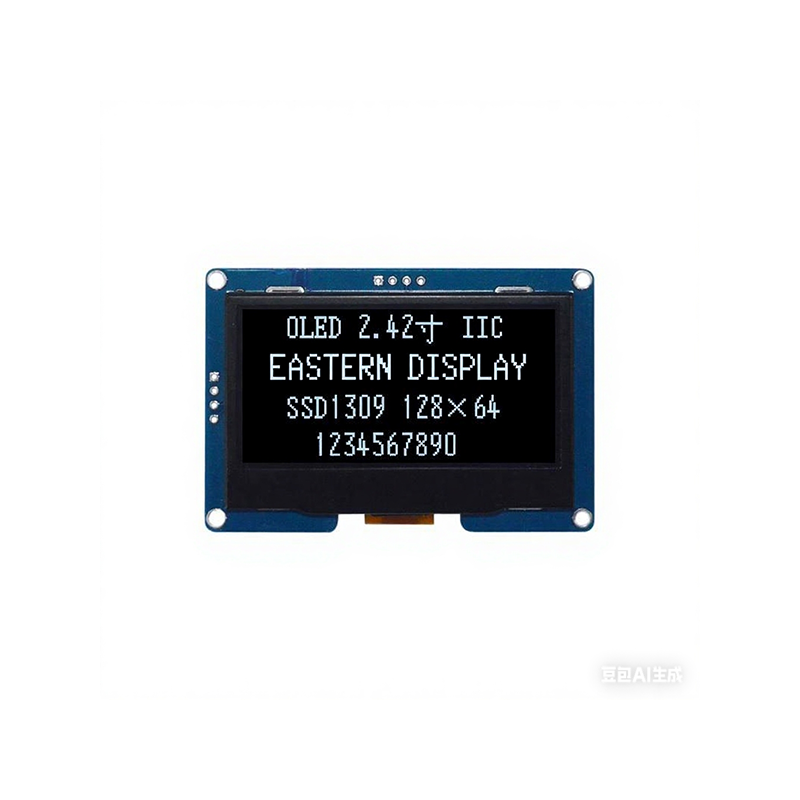

Product description: This product is a mini OLED display with a resolution of 128*64,...
