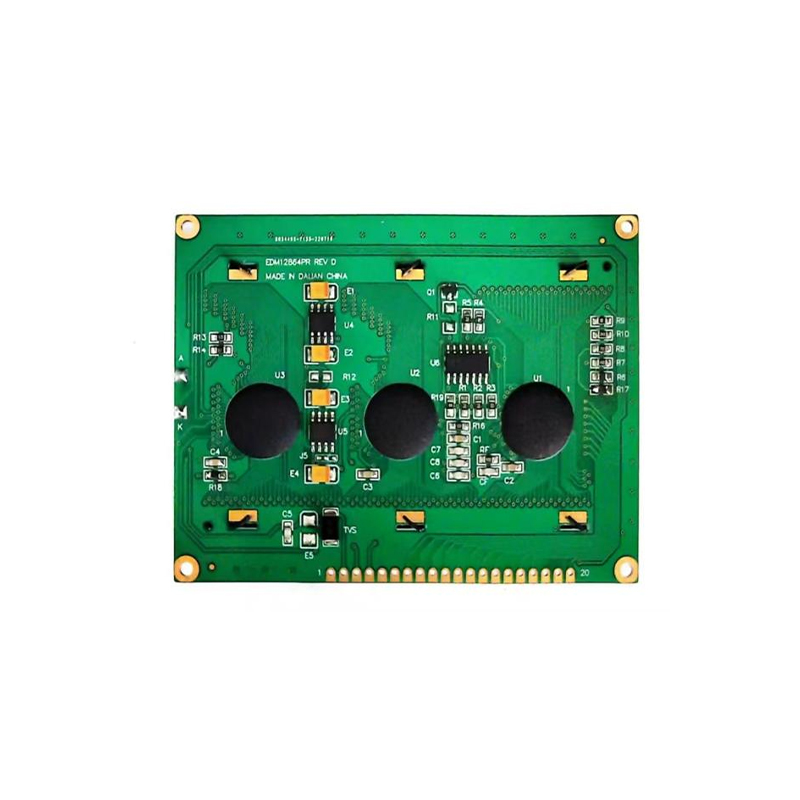

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
This product is a 12864 LCD, which can display graphics with 128 columns x 64 rows of pixels. The display screen uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, achieving high contrast and wide viewing angle display. The module contains a dedicated driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM12864PR-02 |
| Display content | 128x64 dot matrix display |
| Display color | Yellow-green background，black dots |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD controller SBN0064 |
| Production process | COB LCD Module |
| Connection method | Zebra |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | Yellow-green LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
