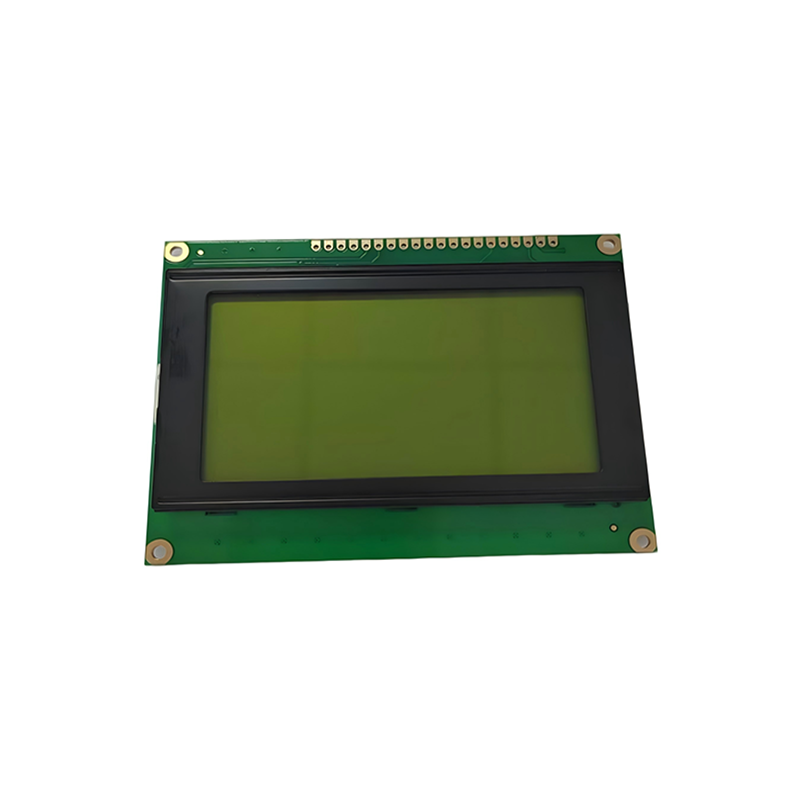

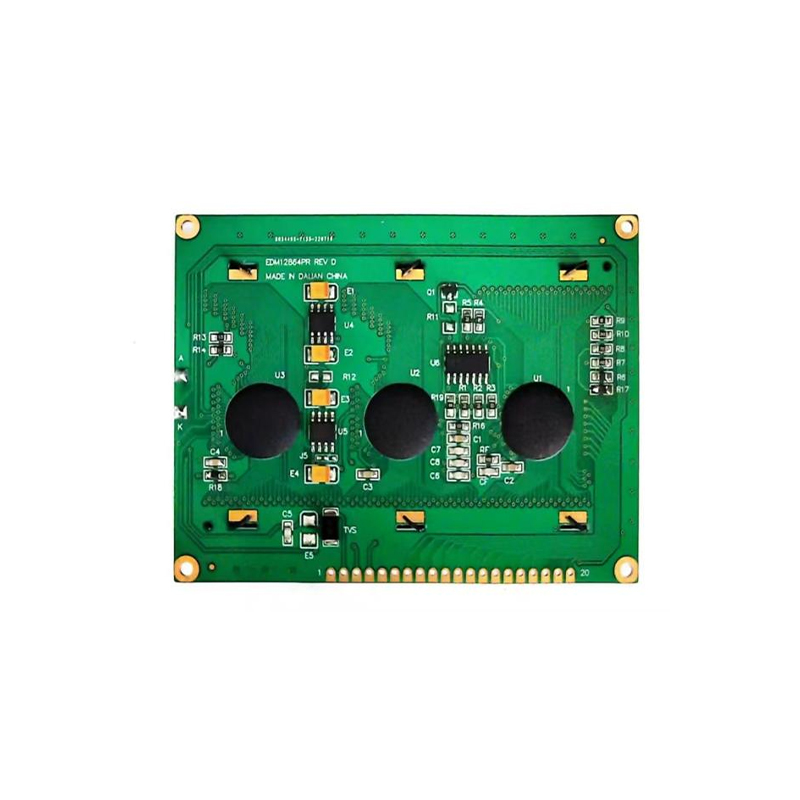

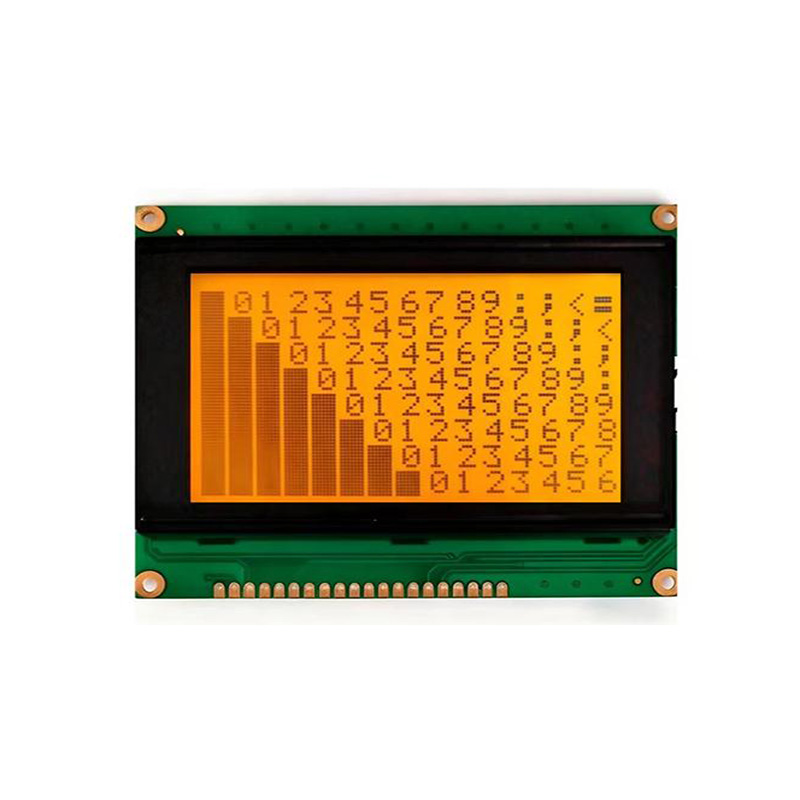

This product is a 12864 LCD dot matrix display capable of displaying graphics with a resolution of 128 columns x 64 rows of pixels. The display utilizes an STN mode with an amber LED backlit LCD, presenting amber background with black characters, achieving high contrast and a wide viewing angle. The module contains a dedicated driver chip, adopts COB production technology, and connects to the master MCU via an 8-bit parallel LCD interface for displaying various images and text. The internal compensation circuit ensures excellent display performance even under wide temperature conditions.
This product is a 12864 LCD, capable of displaying graphics with a resolution of 128 columns x 64 rows of pixels. The display utilizes STN with an amber LED backlit LCD, presenting amber background with black characters, achieving high contrast and wide viewing angle display. The module contains a dedicated driver chip, adopts COB production technology, and connects to the master MCU via an 8-bit parallel LCD interface for displaying various images and text. The internal compensation circuit ensures excellent display performance even under wide temperature conditions. These types of graphic dot matrix display modules are available in resolutions such as 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can select different LCD backlight colors and different mode glass screen combinations according to their product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM12864PR-03 |
| Display content | 128x64 dot matrix display |
| Display color | Amber background，black dots |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD controller AIP31108 |
| Production process | COB LCD Module |
| Connection method | Zebra |
| Display type | STN LCD，Positive，Transflective |
| View angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | Amber LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
| Keywords：Dot matrix display/LED backlight LCD/Parallel LCD/COB LCD module/STN LCD/LCD display module/LCD module/ | |
