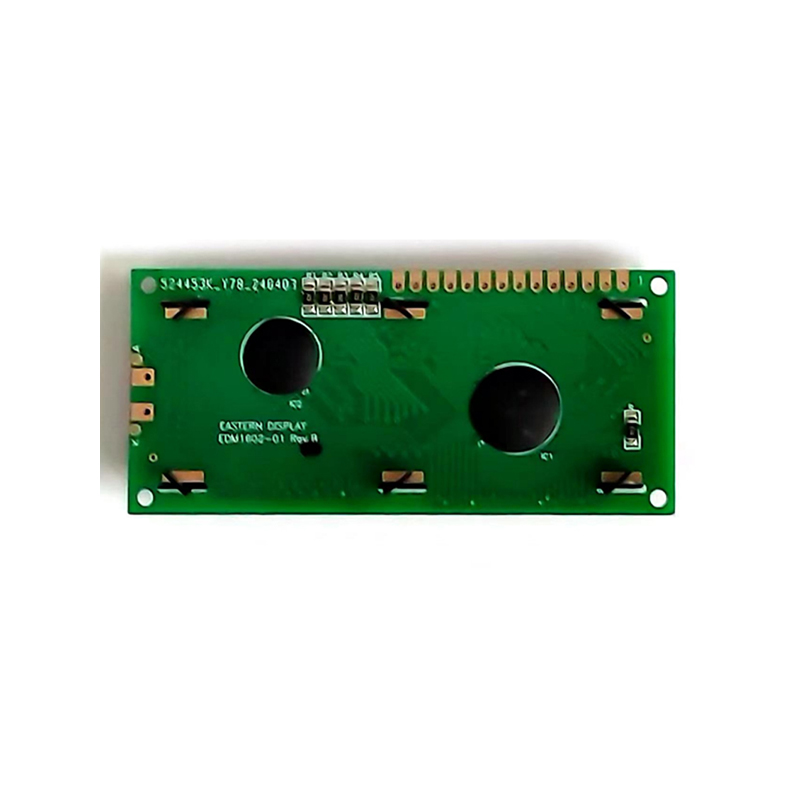

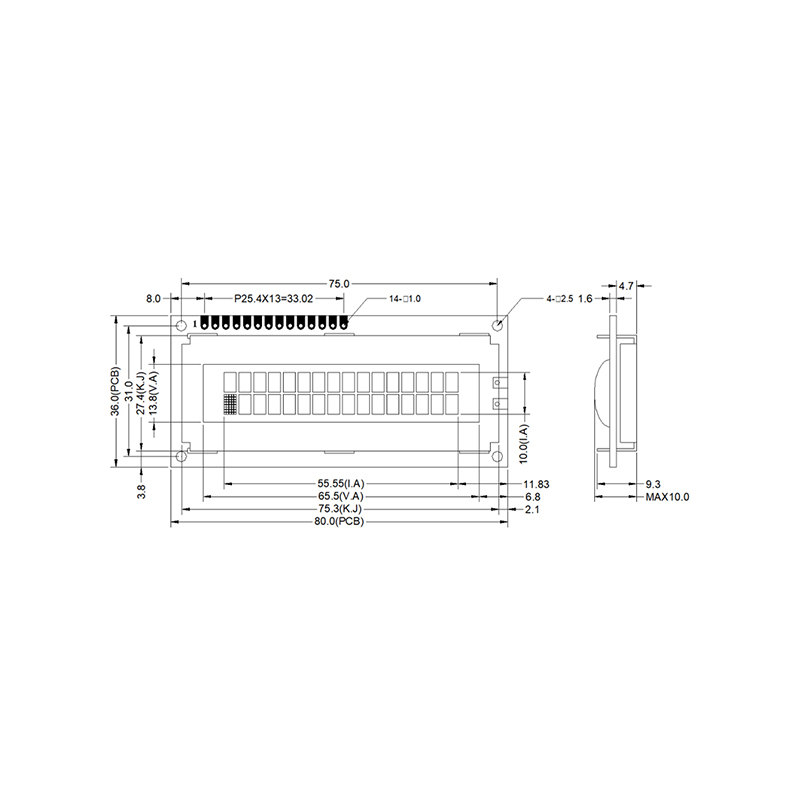

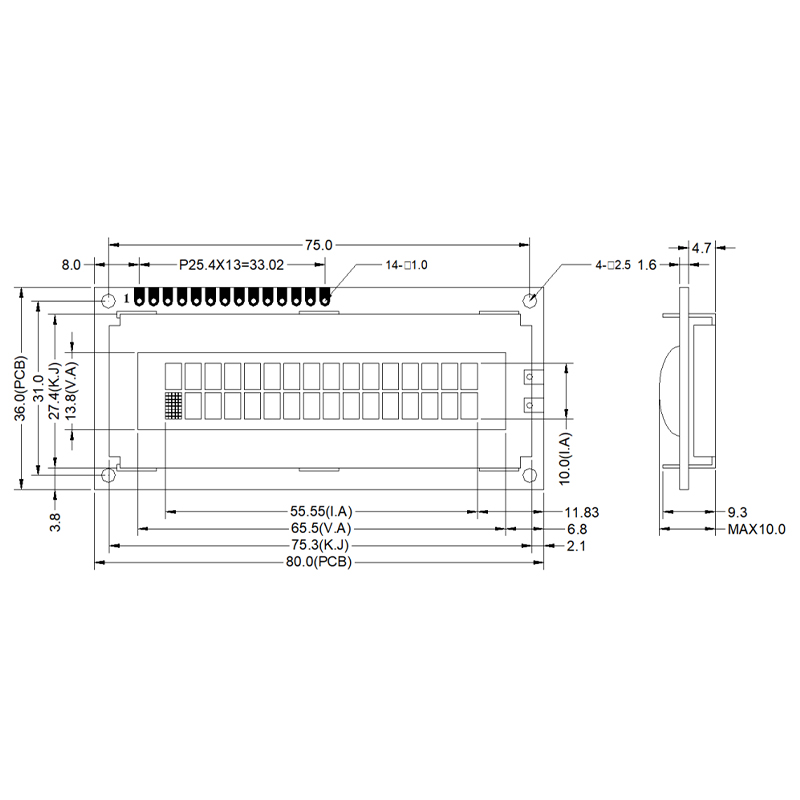

This product is an LCD 16×2 character dot matrix display module, designed for displaying ASCII characters, featuring 2 rows with 16 characters each. The display utilizes an STN yellow-green mode LED backlit LCD, showing yellow-green background with black characters, offering high contrast and a wide viewing angle. The module contains an ST7066 universal character driver chip, manufactured using the COB production process. It connects to the main control MCU via an 8-bit parallel LCD interface, ensuring convenient and easy use.
This product is an LCD 16x2 character dot matrix display module designed for displaying ASCII characters. It features high contrast and a wide viewing angle. The module integrates the universal ST7066 character driver chip, utilizes COB production technology, and connects to the main control MCU via an 8-bit parallel LCD interface for convenient operation.
Character LCD dot matrix displays like this can be customized in various configurations, including 8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2, and up to 40x4. Different language-specific character fonts, LCD panel types, and backlight options are also available for selection.
Thanks to its built-in font library, data transmission is simple and efficient, making this module widely used in instruments and devices that require the display of ASCII characters.
Keywords：Character dot matrix display/LED backlight LCD/Parallel LCD/COB LCD module/STN LCD//LCD display module/LCD module/
Monochrome LCD screens in biosafety cabinets and medical transport cabinets are designed to monitor equipment status, display operational parameters, and support user interaction while meeting the specific requirements of biosafety environments. VA segment displays feature high contrast, wide viewing angles, and a broad temperature range, featuring fixed color icons (e.g., fans, alarm symbols) and numerical parameters. 192×64 dot matrix screens with STN negative display mode offer high contrast and wide viewing angles, supporting simple graphics (e.g., airflow diagrams) and multi-line text. These monochrome LCD screens prioritize functionality, reliability, and cost control in biosafety cabinets, making them suitable for mid-to-low-end models or scenarios where color accuracy is not critical.
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
The 128×64 dot matrix LCD module is one of the most commonly used monochrome display products. Its display types include STN positive display, STN negative display, FSTN positive display, and FSTN negative display. It is paired with white backlight or other monochrome backlights, offering various display modes such as gray background with blue/black characters, yellow-green background with blue/black characters, and blue background with white characters. The product features high contrast and a wide viewing angle. The module contains a driver chip and connects to the main control MCU via an SPI interface or an 8-bit parallel LCD interface. It is simple to use, offers excellent display quality, and provides stable performance. It can display graphics and multiple lines of text, making it widely used in various arcade game machines.
Backlit LCD segment display: LCD screens in environments with varying brightness levels typically require backlighting. Additionally, LCD products with screen printing and color film effects generally need backlighting support to achieve the desired screen printing results. Both backlighting and LCD screens can be customized for irregular shapes.
Product description: HTN segment LCD is an improved product of TN segment LCD, with a...
Product description: 7-inch tft display uses automotive-grade LCD and backlight mater...
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN Negative mode LED backlit LCD, displays white text on a blue background, and has high contrast and wide viewing angle. The module contains a driver chip, uses COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
LCD Applications in Agriculture: Agricultural equipment and monitoring instruments. Given the complex and ever-changing environments, corresponding LCD products must demonstrate high reliability. Specific requirements include: ultra-wide temperature tolerance, UV resistance, vibration resistance, high humidity tolerance, strong light visibility, low power consumption, and long lifespan. The products should also meet low-power operation standards and adapt to battery or solar power supply conditions.
Product description: TN LCD is widely used in industrial instruments, industrial cont...
Product description: This product is a mini OLED display with a resolution of 128*64,...
This product is a custom segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC.This type of LCD module has a wide range of operating temperatures, low power consumption, thin and light structure, good display effect, stable performance and other characteristics.
Product description: TN LCD is widely used in industrial instruments, industrial cont...
This product is a high-definition instrument TFT screen with a resolution of 1280480, LVDS interface, and IPS full-viewing angle screen. It features LED backlight at 800 cd/m², ensuring clear visibility even in strong light environments. It supports operation in a wide temperature range of -30°C to 85°C. With capacitive touch and a tempered cover glass, it meets the demanding requirements of automotive applications. It is widely used in new energy vehicle instrument clusters, robot display screens, industrial instruments, etc.
VA LCD segment displays feature a black background with white characters, offering high contrast, a wide operating temperature range, broad viewing angles, and fast response times. They can be combined with color silk printing or color filter films to achieve TFT-like colorful display effects and can also be used in conjunction with TFT screens.
A round color OLED display with resolution of 128*115, SPI 4 interface, Driver IC: GC9107. The product has self-illumination, full view, no shadow in low temperature environment and other characteristics. It is widely used in smart wearable devices and smart home control terminals.
This product is an LCD 20×4 character dot matrix display module designed for displaying ASCII characters, featuring 4 rows with 20 characters per line. The screen utilizes an STN yellow-green mode LED backlit LCD, displaying yellow-green background with black characters, offering high contrast and a wide viewing angle. The module incorporates the ST7066 universal character driver chip, adopts COB production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, ensuring ease of use.
