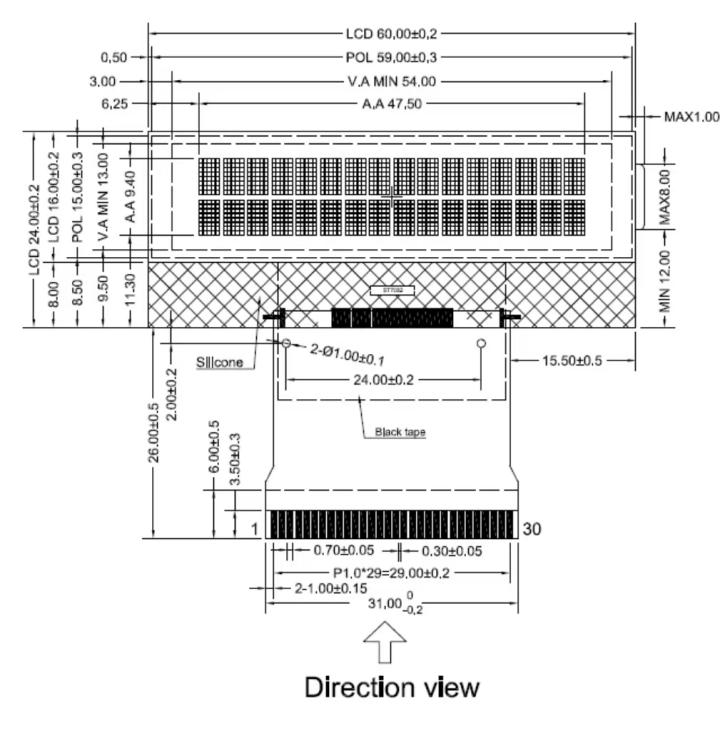

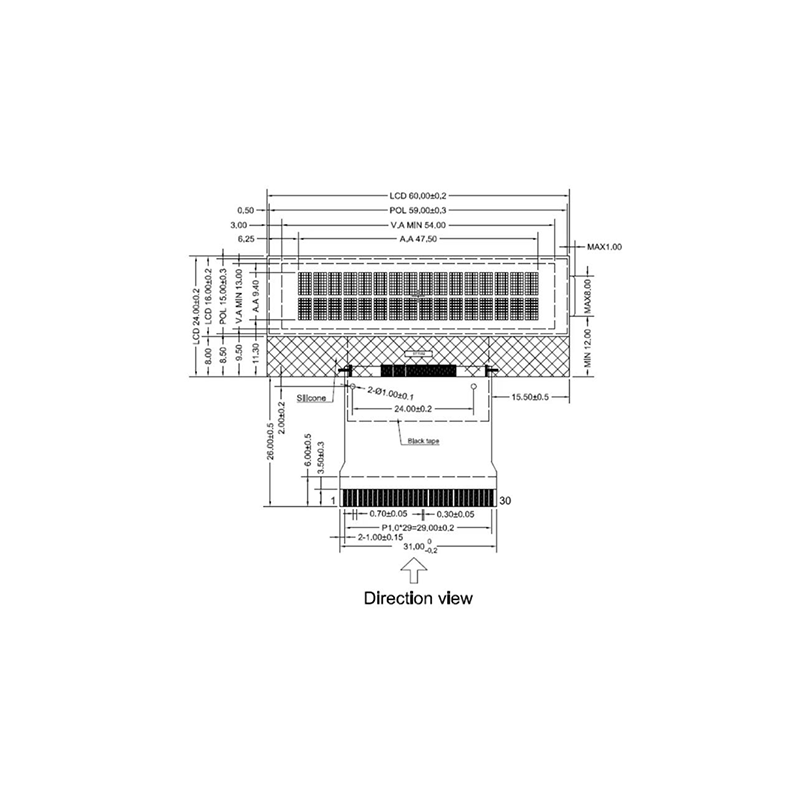

This product is an LCD 16×2 character dot matrix display module designed for ASCII character display, featuring 2 rows with 16 characters per row. The display utilizes an FSTN mode LED backlit LCD, showing blue-black characters on a gray background with high contrast and a wide viewing angle. The module includes a built-in character driver chip and is manufactured using COG technology, making it thin, lightweight, and energy-efficient. It connects to the main MCU via an SPI interface or an 8-bit parallel LCD interface.
This product is an LCD 16x2 character dot matrix display module designed for ASCII character display, featuring 2 rows with 16 characters per row. The display utilizes an FSTN mode LED backlit LCD, showing blue-black characters on a gray background with high contrast and a wide viewing angle. The module includes a built-in character driver chip and is manufactured using COG technology, making it thin, lightweight, and energy-efficient. It connects to the main MCU via an SPI interface or an 8-bit parallel LCD interface.
Character LCD dot matrix display products of this type can be customized in various configurations such as 8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2, and up to 40x4. Options for character dot matrices in different languages, as well as different types of LCD screens and backlights, are also available. With its built-in character library, data transmission is simple and efficient, making it widely used in instruments and devices that display only ASCII characters.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM1602-75 |
| Display content | 16x2 character dot matrix display |
| Background | Gray |
| Interface | SPI/8-bit parallel LCD |
| Driver chip model | LCD controller ST7032 |
| Module type | COG LCD Module |
| Connection | FPC |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 3.3V |

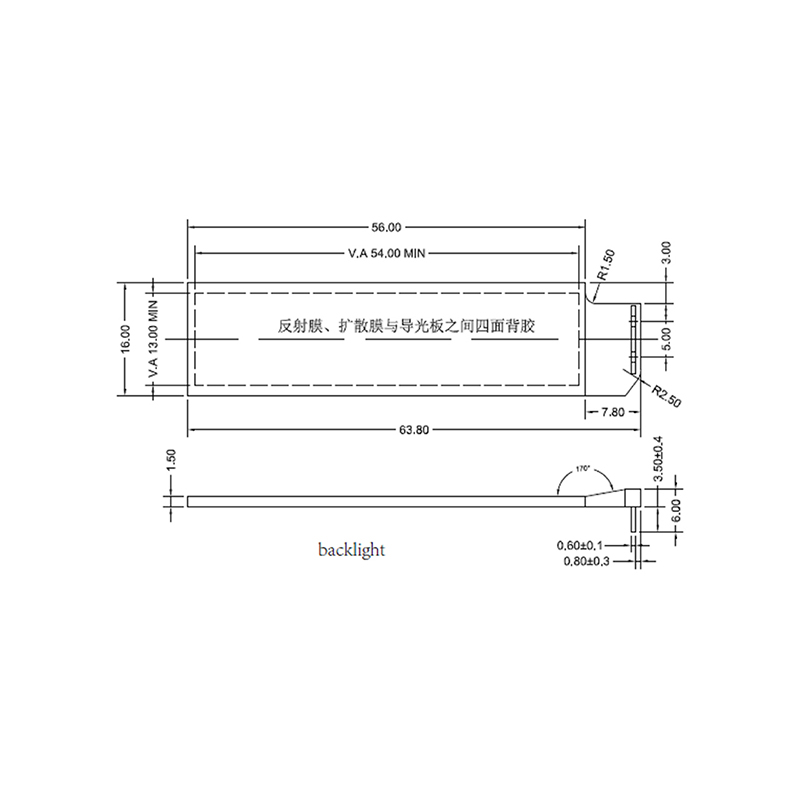

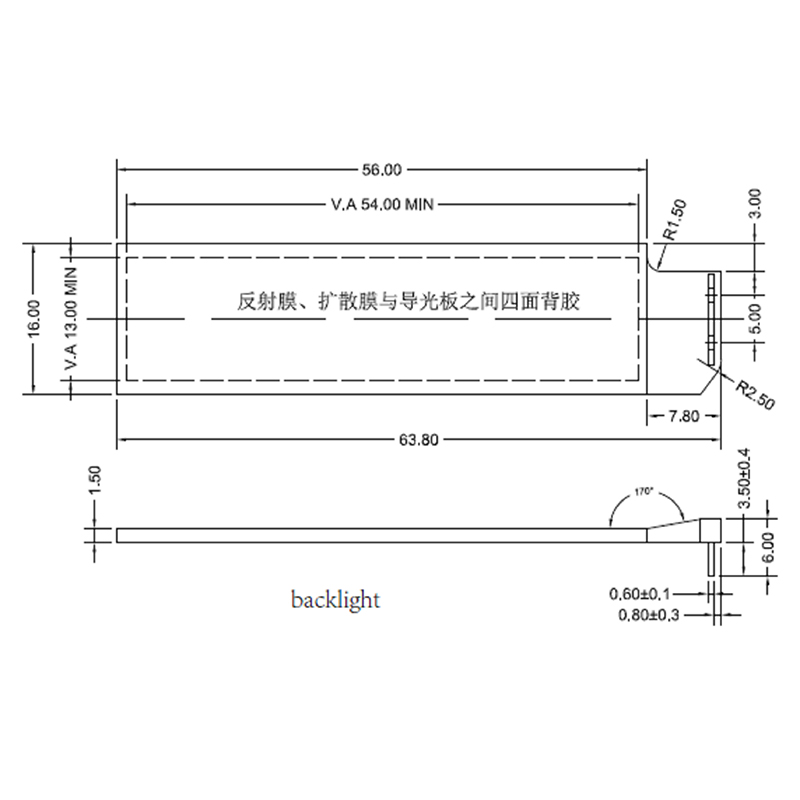

| Backlight type | LED backlit |
| Backlight color | White |
| Operating temperature | -20-70℃ |
| Storage temperature | -25-75℃ |
Keywords：Character dot matrix display/LED backlight LCD/COG LCD module/FSTN LCD//LCD display module/LCD module/
