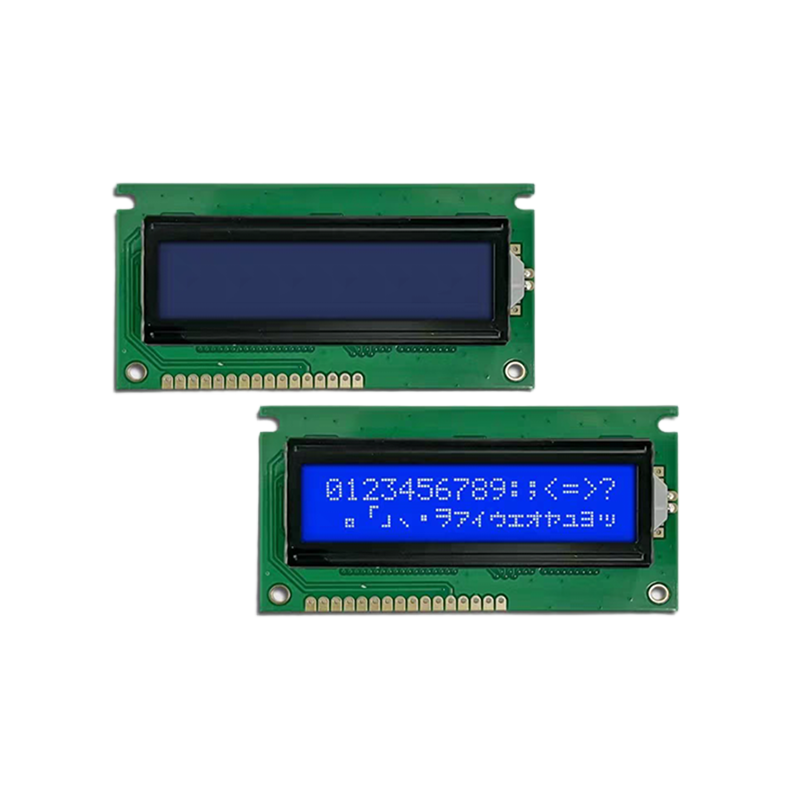

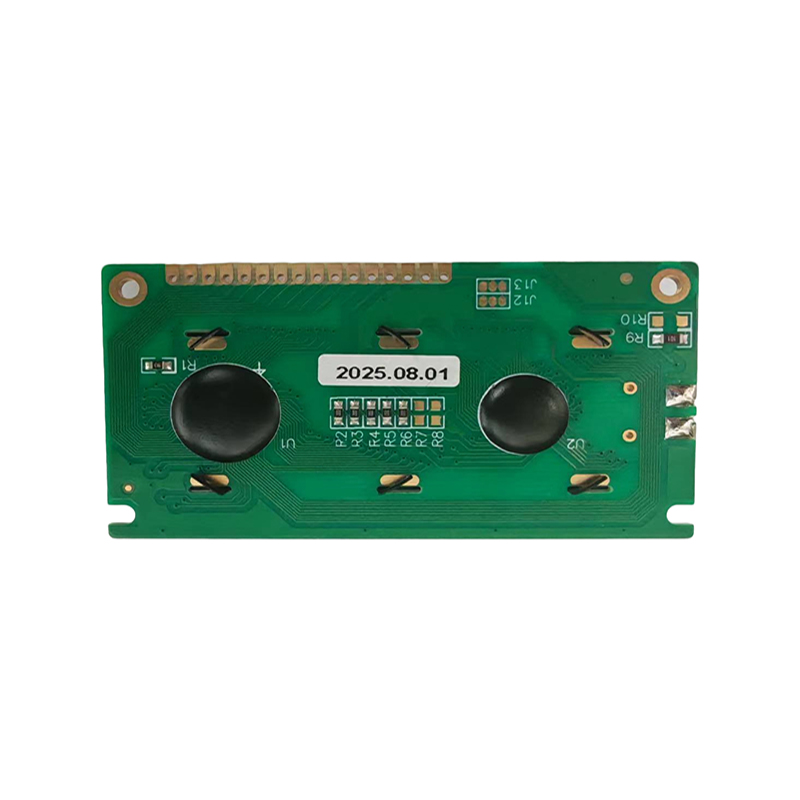

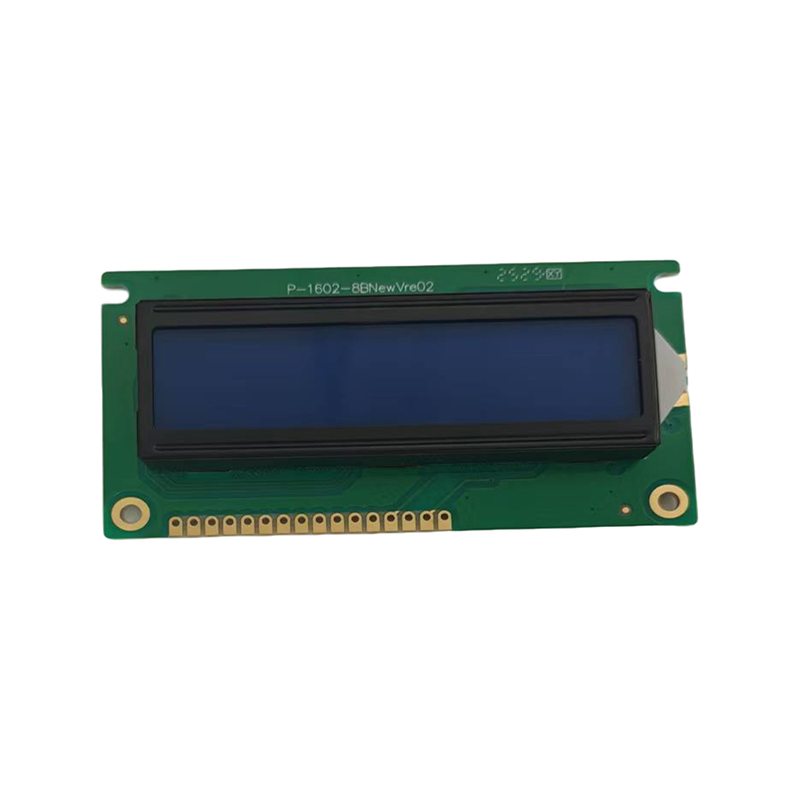

This product is an LCD 16×2 character dot matrix display module, designed for displaying ASCII characters, with a total of 2 rows and 16 characters per row. The display adopts an STN blue negative display mode, equipped with white LED backlight LCD, presenting blue background with white characters, high contrast ratio, and wide viewing angle. The module incorporates a universal character driver chip, utilizes COB (Chip-On-Board) production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, making it convenient to use.
This product is an LCD 16x2 character dot matrix display module, designed for displaying ASCII characters. The display adopts an STN blue negative display mode, equipped with white LED backlight LCD, offering high contrast ratio and wide viewing angle. The module incorporates a universal character driver chip, utilizes COB (Chip-On-Board) production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, making it convenient to use. Such character LED dot matrix display products can be customized into 8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2, and 40x4 character modules, with a variety of font library IC available for selecting fonts and language systems. The LCD type and LCD backlight can also be chosen in different types to display different colors. Due to the built-in font library, data transmission is convenient, making it widely used in instruments and meters that only display ASCII characters.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM1602-76D |
| Display content | 16x2 character dot matrix display |
| Display color | Blue background,white dots |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD controller AIP31066 |
| Production process | COB LCD Module |
| Connection method | Zebra |
| Display type | STN LCD,Negative,Transmissive |
| View angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | White LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
