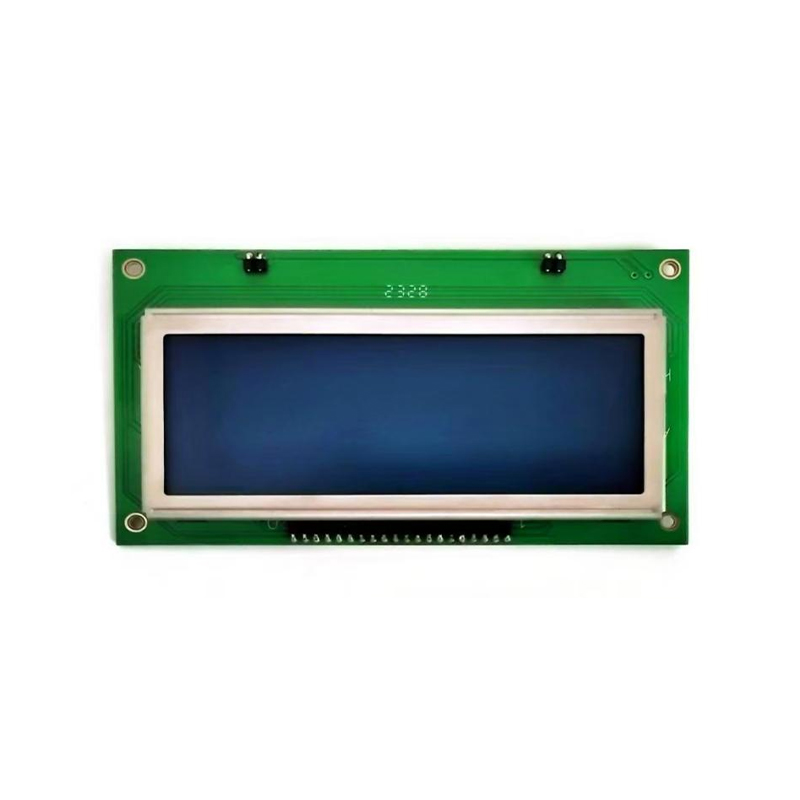

This product is a 19264 LCD dot matrix display that can display graphics with 192 columns x 64 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background with high contrast and wide viewing angle. The module contains a driver chip and adopts a COB production process. It is connected to the main control MCU through an 8-bit parallel LCD interface and is used to display various images and texts.
This product is a 19264 LCD that can display graphics with 192 columns x 64 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, achieving high contrast and wide viewing angle display. The module contains a dedicated driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM19264-37 |
| Display content | 192x64 dot matrix display |
| Display color | Blue background，white dots |
| Interface | parallel LCD interface |
| Driver chip model | LCD controller SBN0064 SBN6400 |
| Production process | COB LCD Module |
| Connection method | Zebra |
| Display type | STN LCD，Negative，Transmissive |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | White LCD backlight |
| Operating temperature | -10~55℃ |
| Storage temperature | -20~60℃ |
Product description: 2 inch tft display is a mini tft display, which adopts full-view...
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: Fully transparent LCD segment code screen is a completely transp...

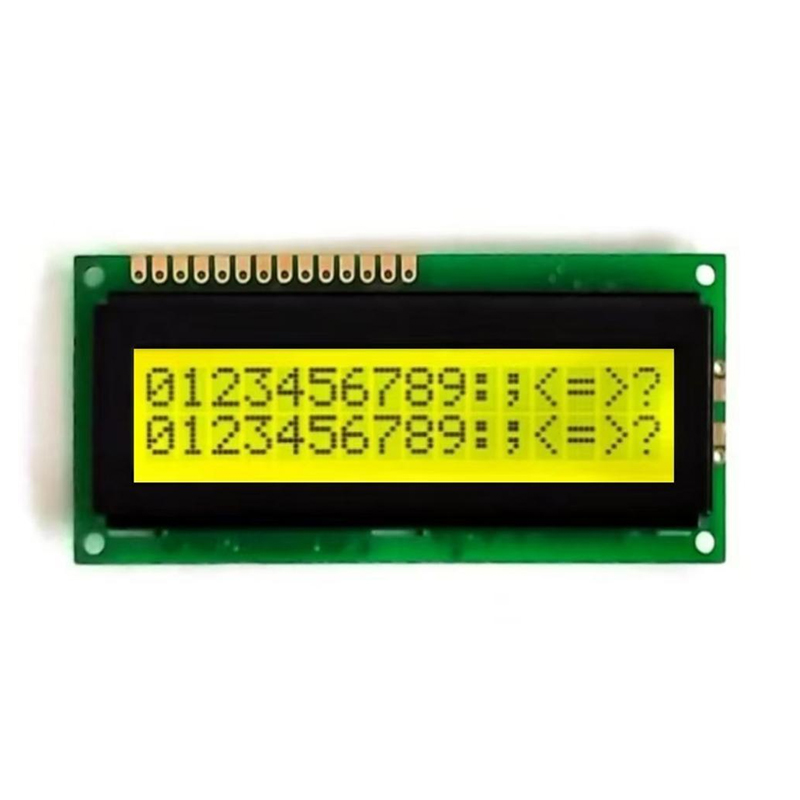

This product is an LCD 16×2 character dot matrix display module, which is used for ASCII character display, with 2 lines and 16 characters each. The display screen uses STN yellow-green mode LED backlit LCD, which displays black characters on a yellow-green background, with high contrast and wide viewing angle. The module contains the ST7066 universal character driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface, which is easy to use.
FPC LCD stands for Flexible Printed Circuit LCD. FPC is also called flexible printed circuit board, soft board, or flexible circuit board. It can be used for LCD glass lead output connection without driver chip, or COG LCD connection. No welding is required, easy to install, and the product is lightweight.
Product description: Industrial OLED Display module, resolution 128*64, I2C interface...
Screen-printed LCD segment code LCD screens are designed with monochrome or color patterns through screen printing or inkjet printing, and are widely used in instrumentation, medical equipment, consumer electronics and other fields. Its wear resistance, customizability and environmental protection make it the preferred display solution for many industries
Product description: VA LCD products have high contrast, can display multiple colors,...
Product description: STN LCD type is widely used in industrial instruments, industria...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Product description: TFT LCD display screens are widely used in various commercial ve...
Product description: An i2c oled display with a resolution of 128*64 and an I2C inter...
Product description: TFT LCD display screens are widely used in various commercial ve...
Product description: HTN LCD products have high contrast, wide viewing angle, clear d...
Product description: Ultra-wide temperature LCD segment code screen is a kind of LCD ...
Product description: TN LCD is widely used in industrial instruments, industrial cont...
