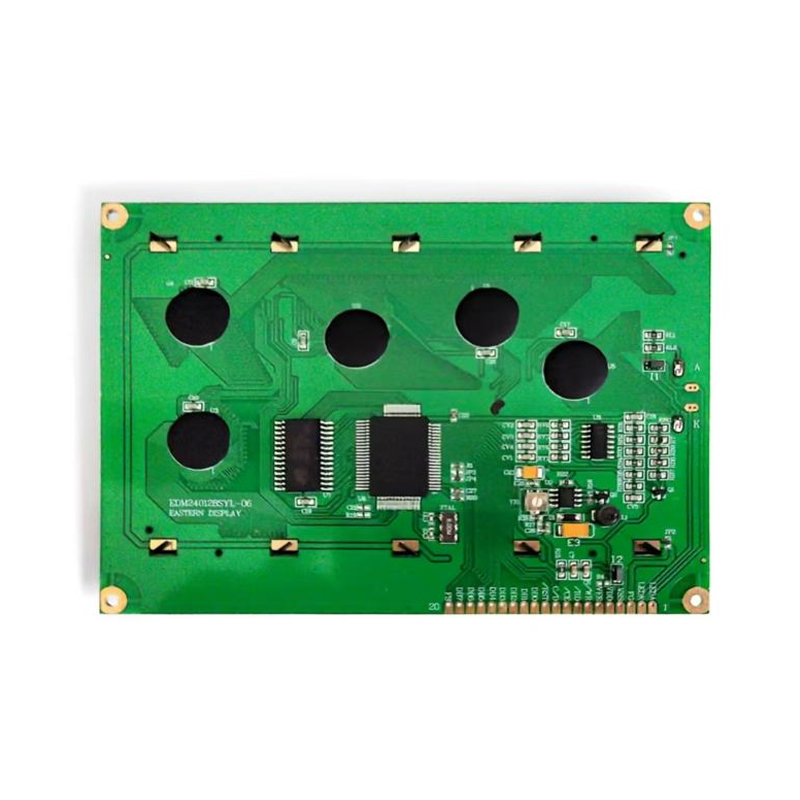

This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
This product is a 240128 LCD, which can display graphics with 240 columns x 128 rows of pixels. The display screen uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, achieving high contrast and wide viewing angle display. The module contains a dedicated driver chip, adopts COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM240128-06 |
| Display content | 240x128 dot matrix display |
| Display color | Yellow-green background，black dots |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD controller RA6963 |
| Production process | COB+SMT LCD Module |
| Connection method | Zebra |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED backlit |
| Backlight color | Yellow-green LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
