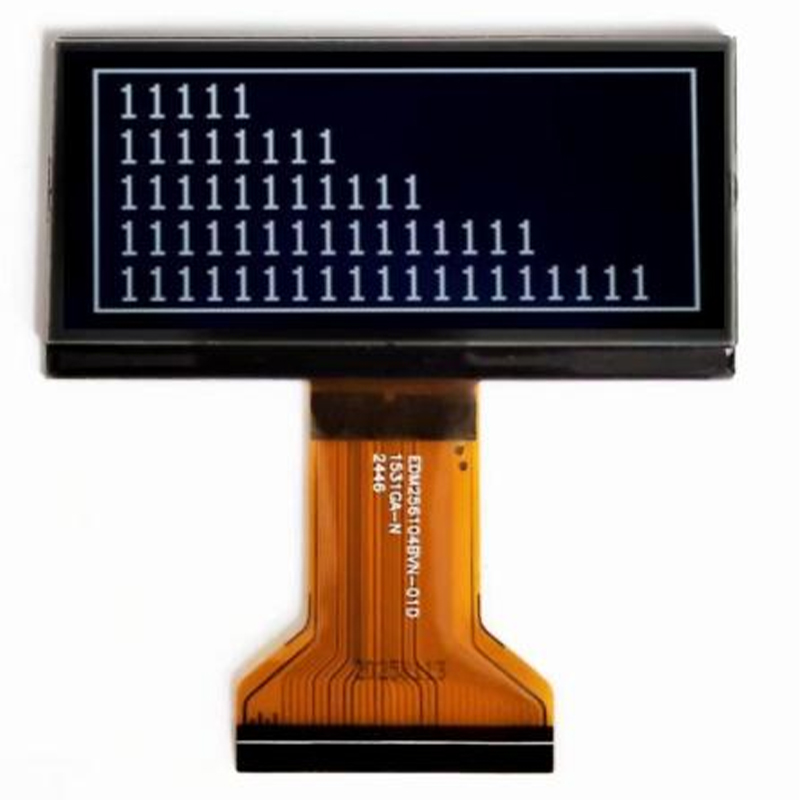

This product is a 256104 LCD dot matrix display that can display graphics with 256 columns x 104 rows of pixels. The display uses ASTN Negative mode LED backlit LCD, which displays white text on a black background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology, which is thin and light with low power consumption. It is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
This product is a 256104 LCD dot matrix display that can display graphics with 256 columns x 104 rows of pixels. The display uses ASTN Negative mode LED backlit LCD, which displays white text on a black background with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production process, which is thin and light with low power consumption. It is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. This type of graphic dot matrix display can choose graphic dot matrix display modules with resolutions of 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can choose different LCD backlight and glass screen combinations according to product requirements.
| Manufacturer | EASTERN DISPLAY |
| Product model | EDM256104-01 |
| Display content | 256x104 dot matrix display |
| Display color | Black background，white dots(backlight color） |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD controller ST7592 |
| Production process | COG LCD Module |
| Connection method | FPC |
| Display type | ASTN LCD，Positive，Transmissive |
| Viewing angle | 12 O'clock |
| Operating voltage | 5V |
| Backlight type | Without LED backlit |
| Backlight color | White or other color LCD backlight |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
Product description: HTN LCD types are widely used in industrial instruments, industr...
FPC LCD stands for Flexible Printed Circuit LCD. FPC is also called flexible printed circuit board, soft board, or flexible circuit board. It can be used for LCD glass lead output connection without driver chip, or COG LCD connection. No welding is required, easy to install, and the product is lightweight.

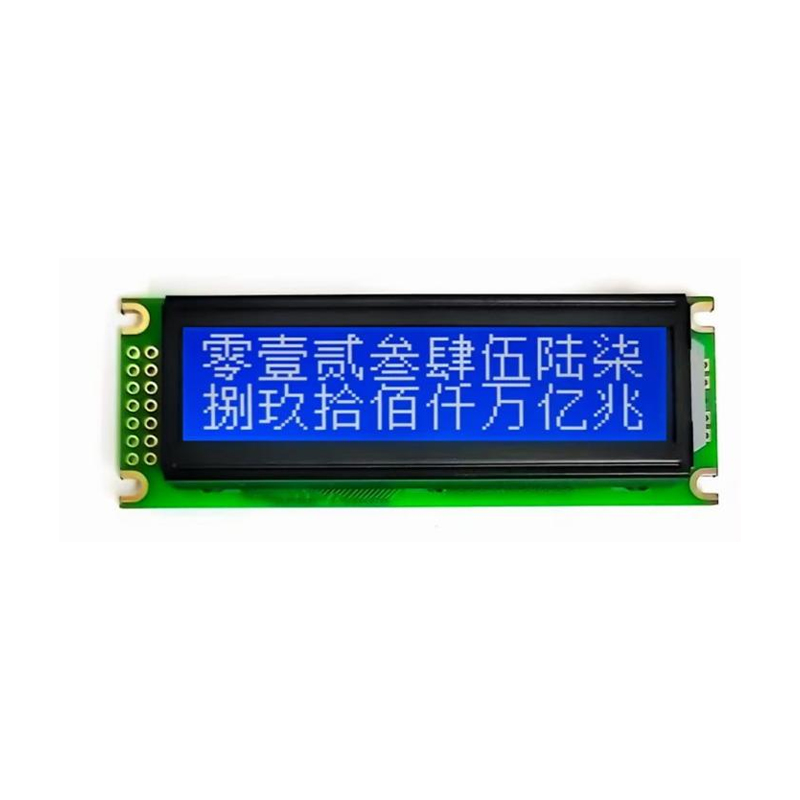

This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.

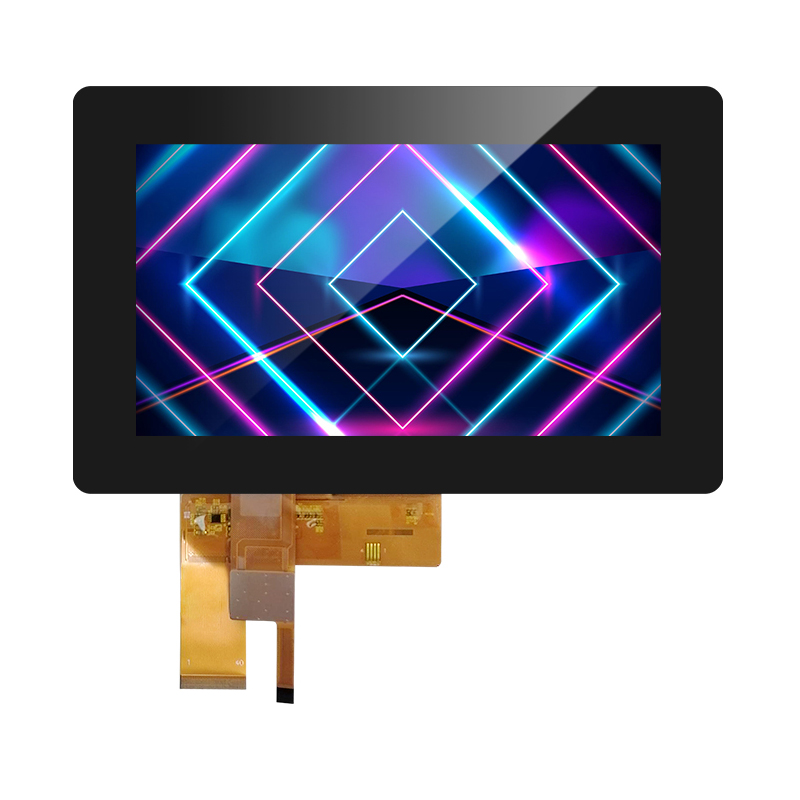

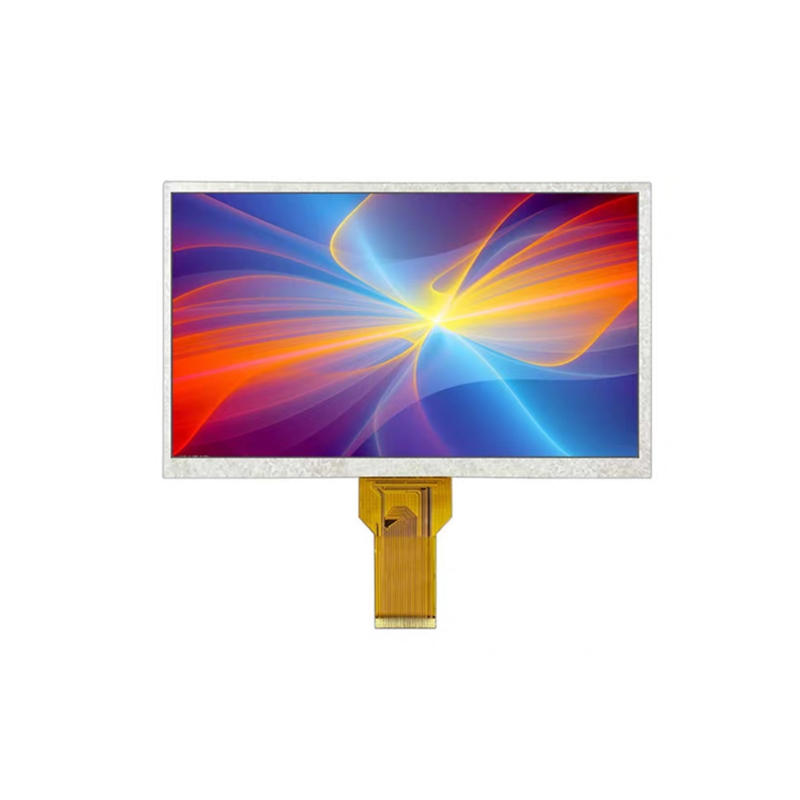

Product description: 7-inch TFT display uses automotive-grade LCD and backlight mater...

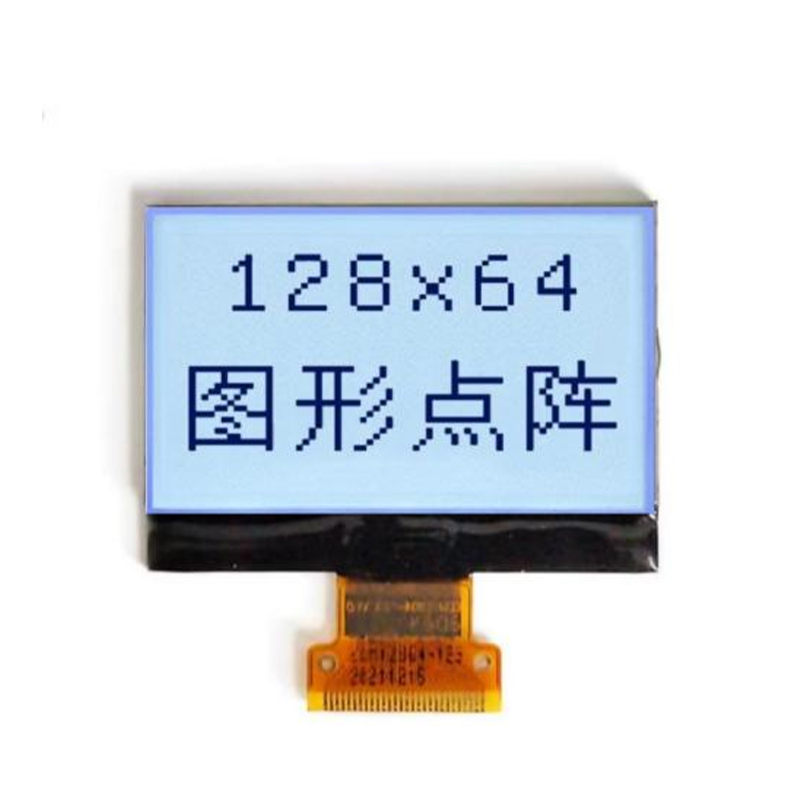

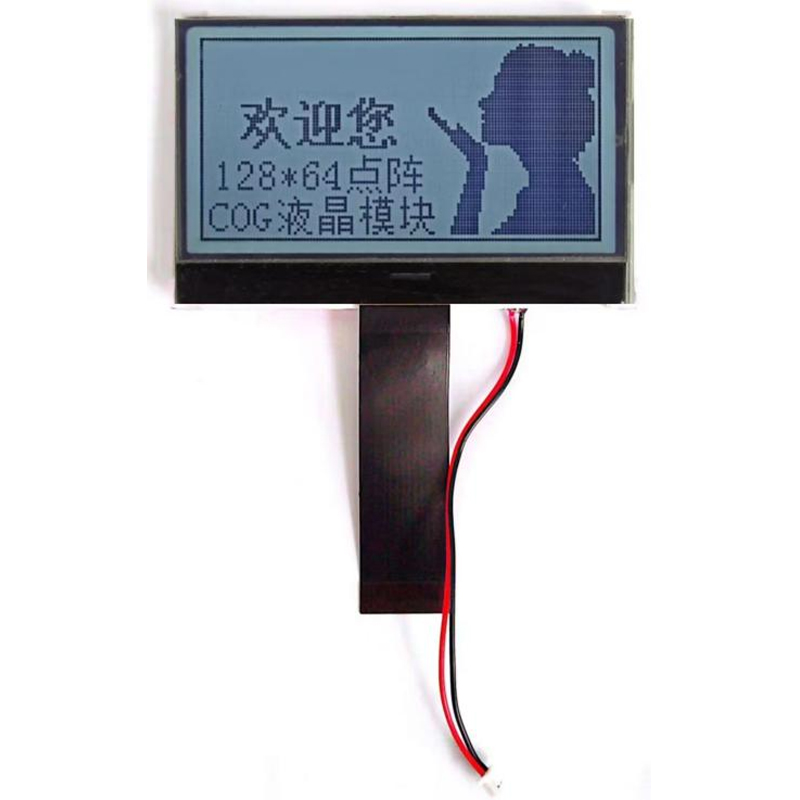

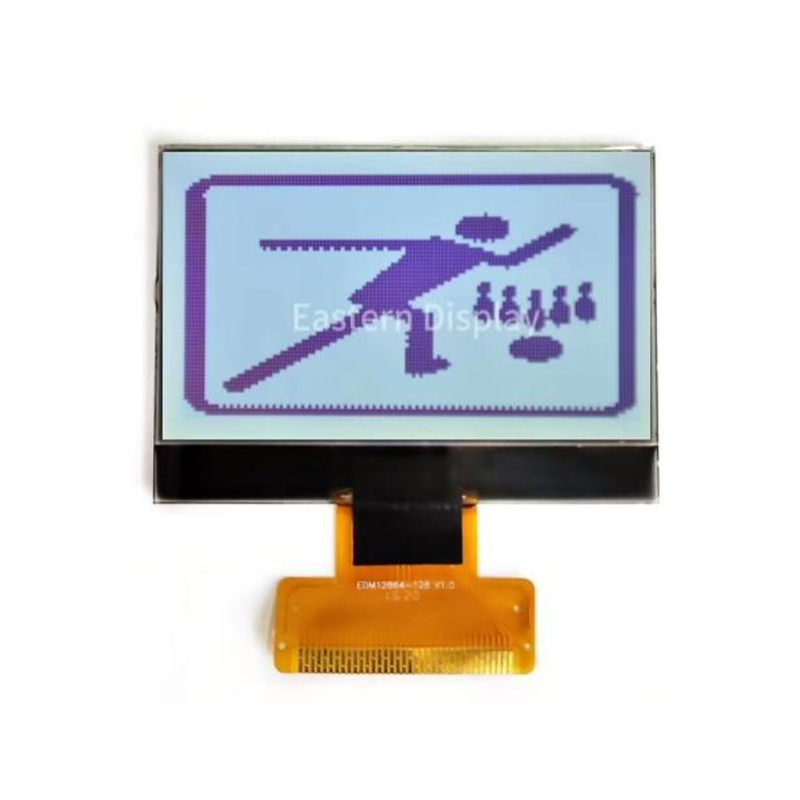

This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and has low power consumption. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Product description: HTN segment LCD is an improved product of TN segment LCD, with a...

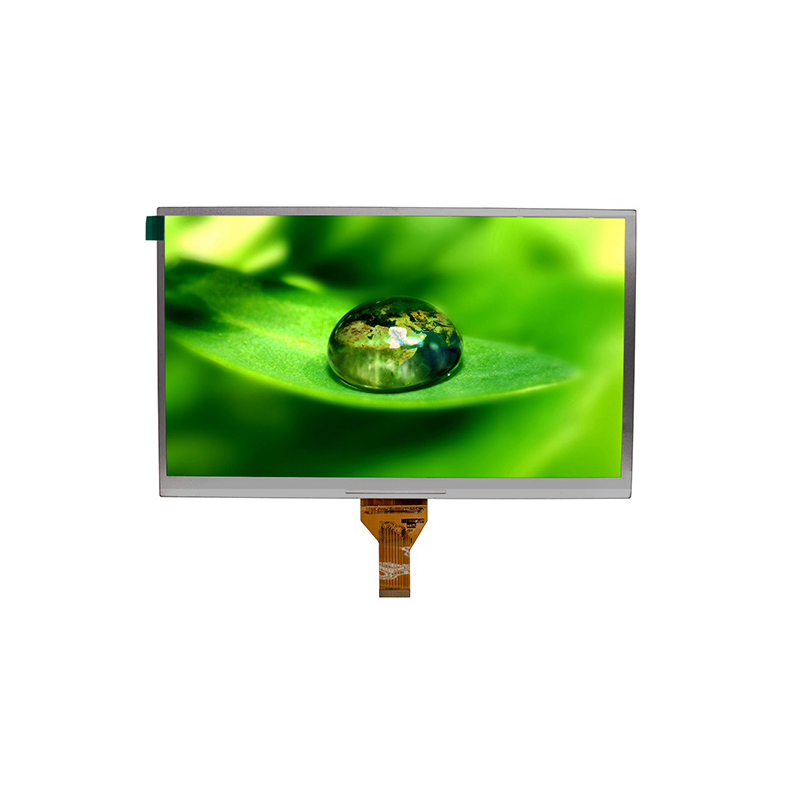

Product description: This product is an industrial-grade TFT display with a resolutio...

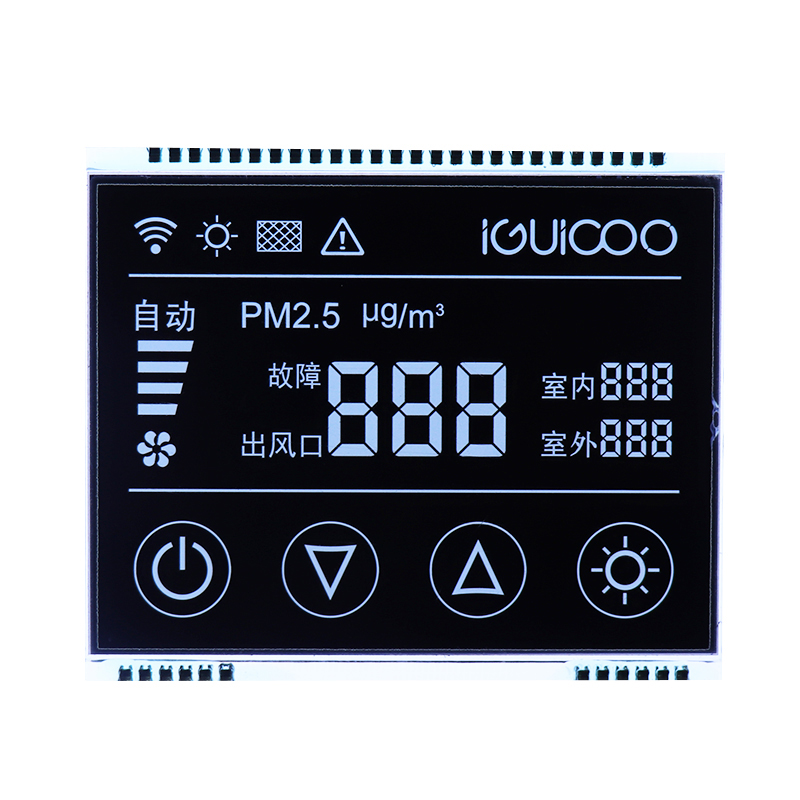

Product description: Negative Display LCD is a special liquid crystal display technol...

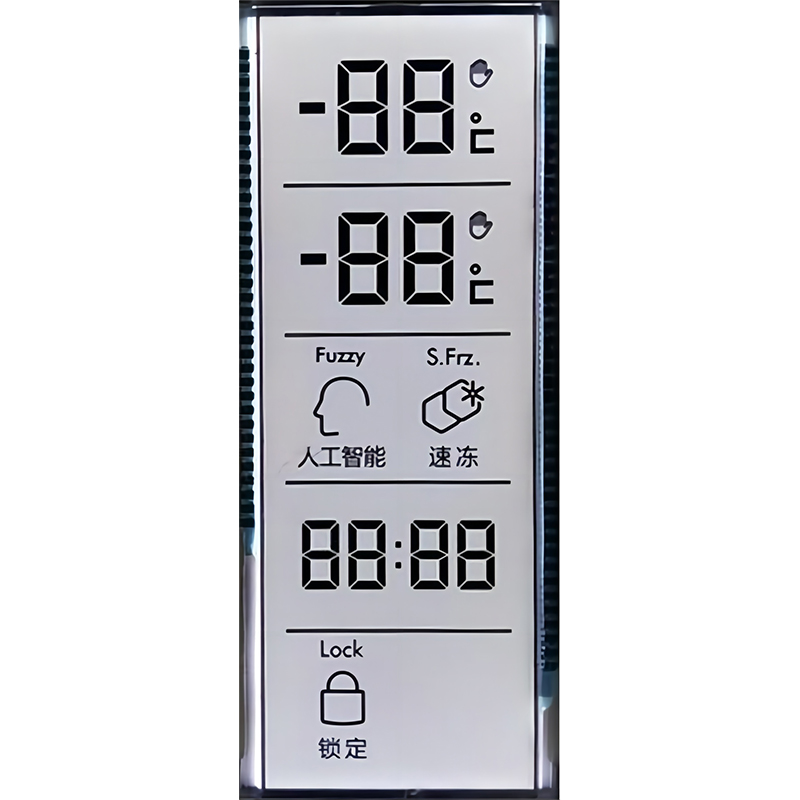

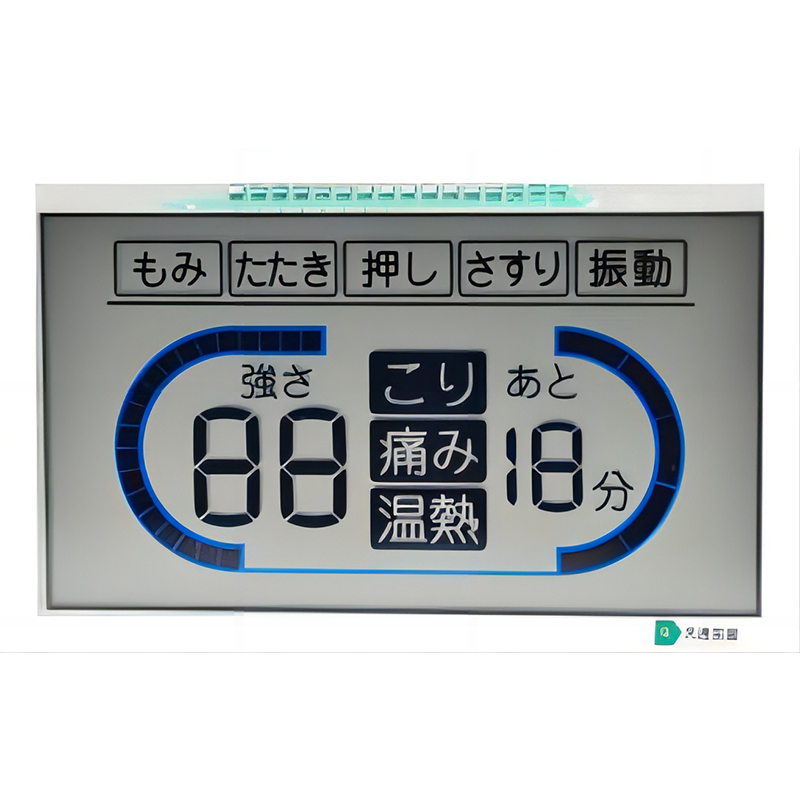

Screen-printed LCD segment code LCD screens are designed with monochrome or color patterns through screen printing or inkjet printing, and are widely used in instrumentation, medical equipment, consumer electronics and other fields. Its wear resistance, customizability and environmental protection make it the preferred display solution for many industries

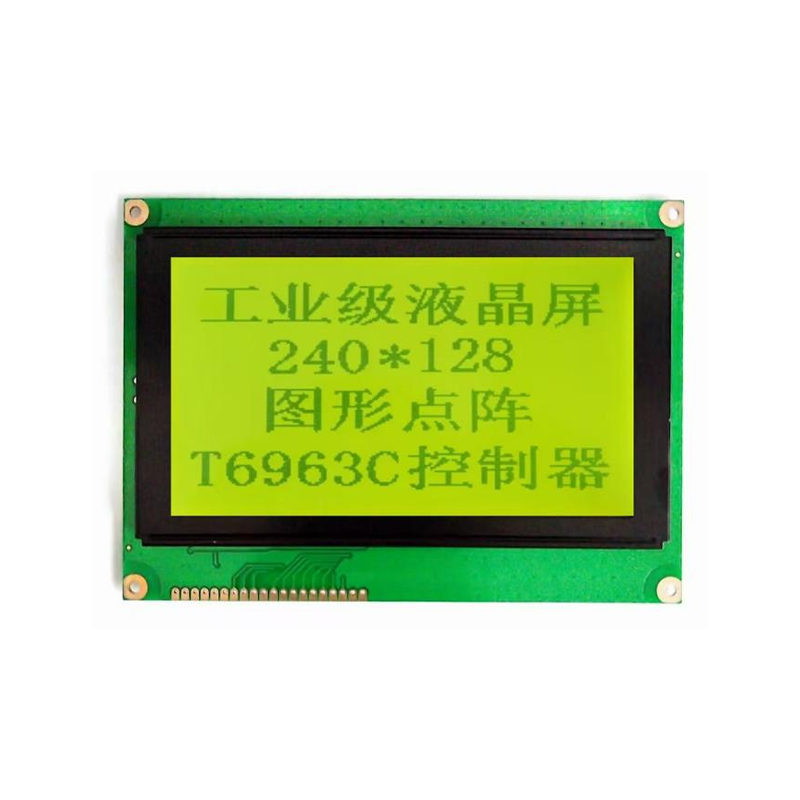

This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.

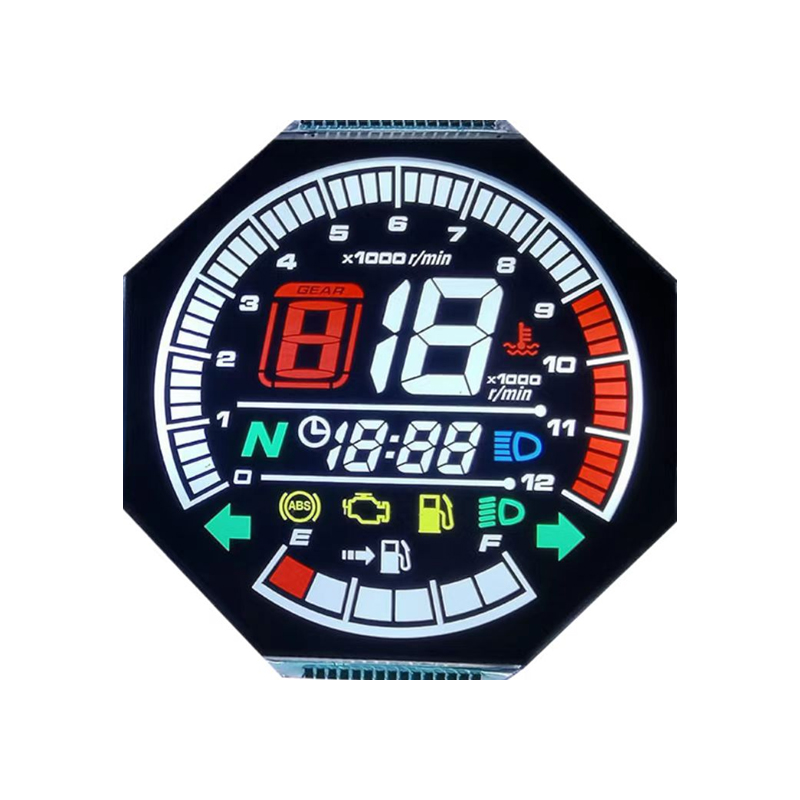

Product description: This product is a high-definition automotive instrument large-si...
Product description: TN LCD is widely used in industrial instruments, industrial cont...

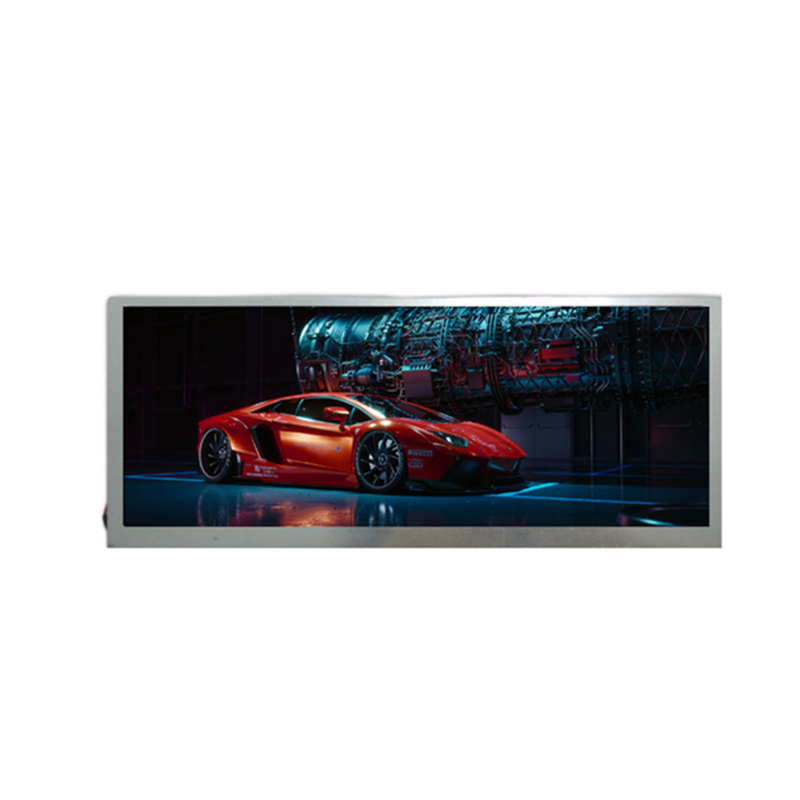

Product description: This product is a high-definition large-size TFT screen, resolut...
This product is a 19264 LCD dot matrix display that can display graphics with 192 columns x 64 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background with high contrast and wide viewing angle. The module contains a driver chip and adopts a COB production process. It is connected to the main control MCU through an 8-bit parallel LCD interface and is used to display various images and texts.
Product description: Compared with TN LCD, HTN LCD, STN LCD, and FSTN LCD, VA LCD has...
Segment display is widely used in industrial instruments, industrial control equipment and commun...
