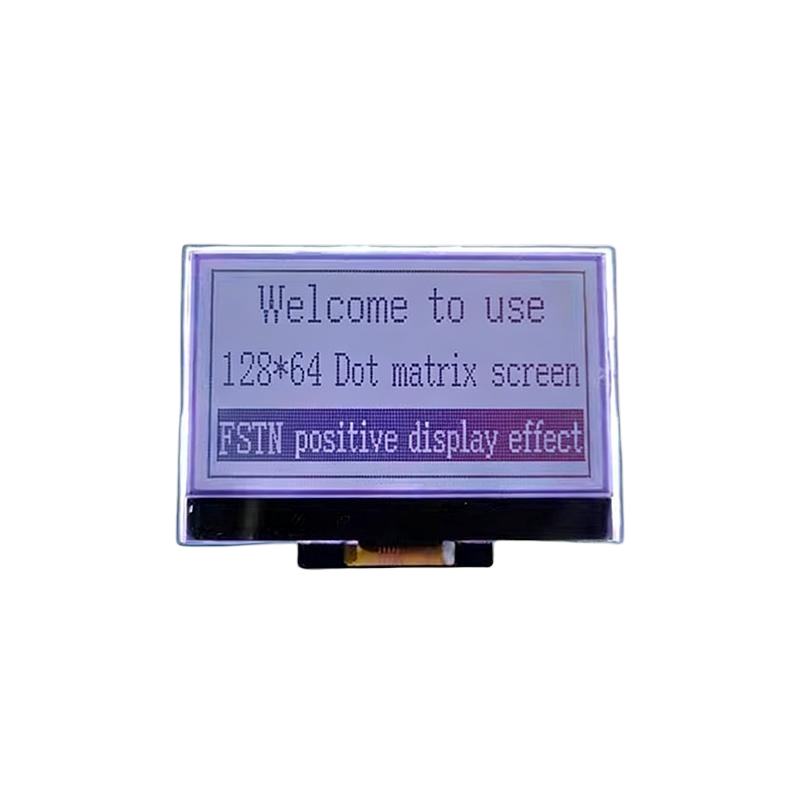

FSTN LCD enhances viewing angle width and improves background color uniformity (compared to STN LCD) through the compensation film process. FSTN is suitable for multiplex dynamic driving and can support up to 320-multiplex dot matrix products, making it ideal for complex graphic displays.

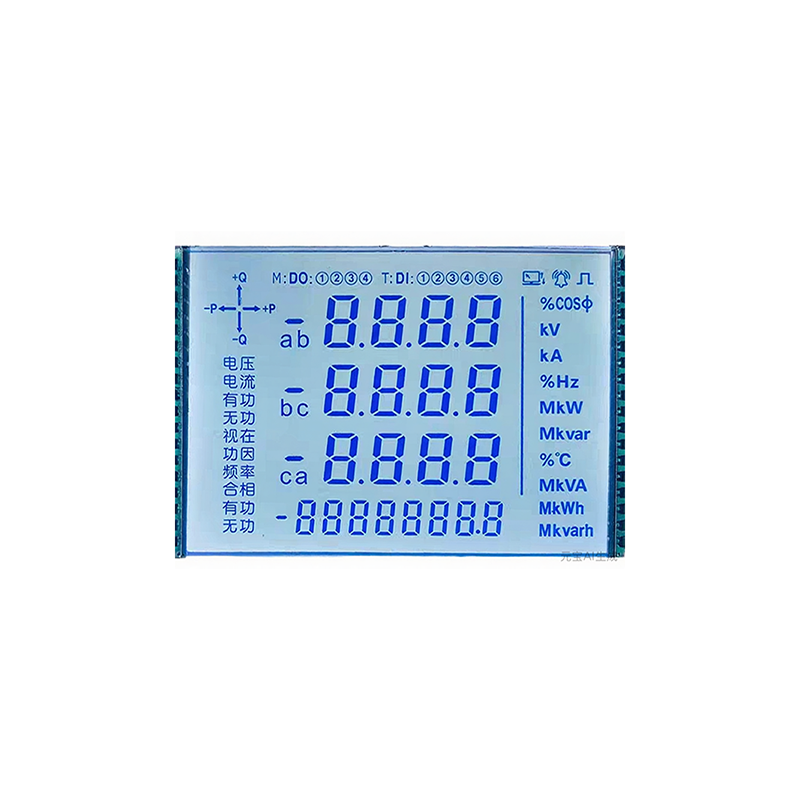

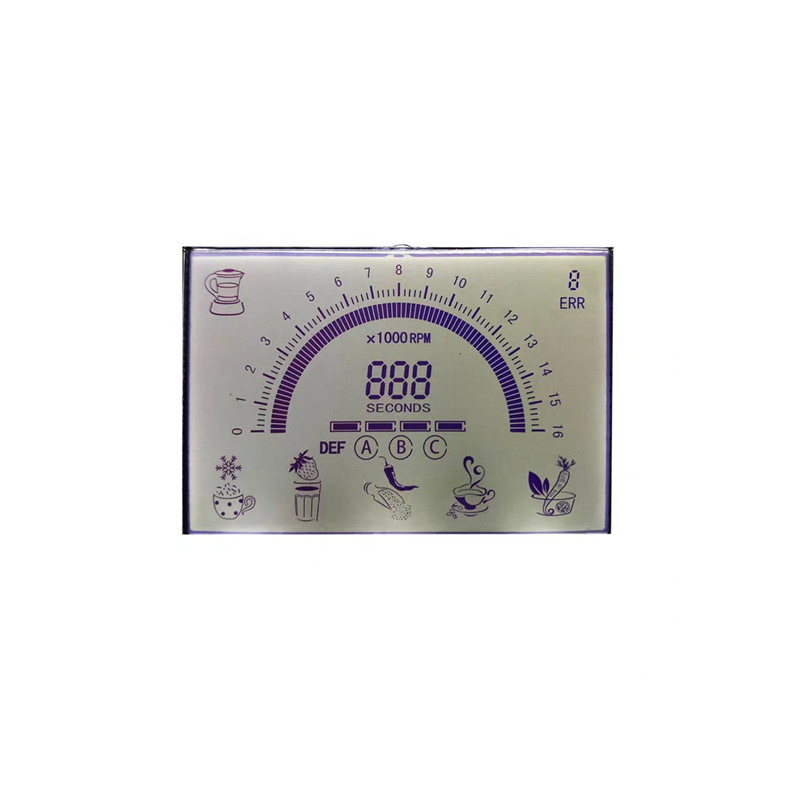

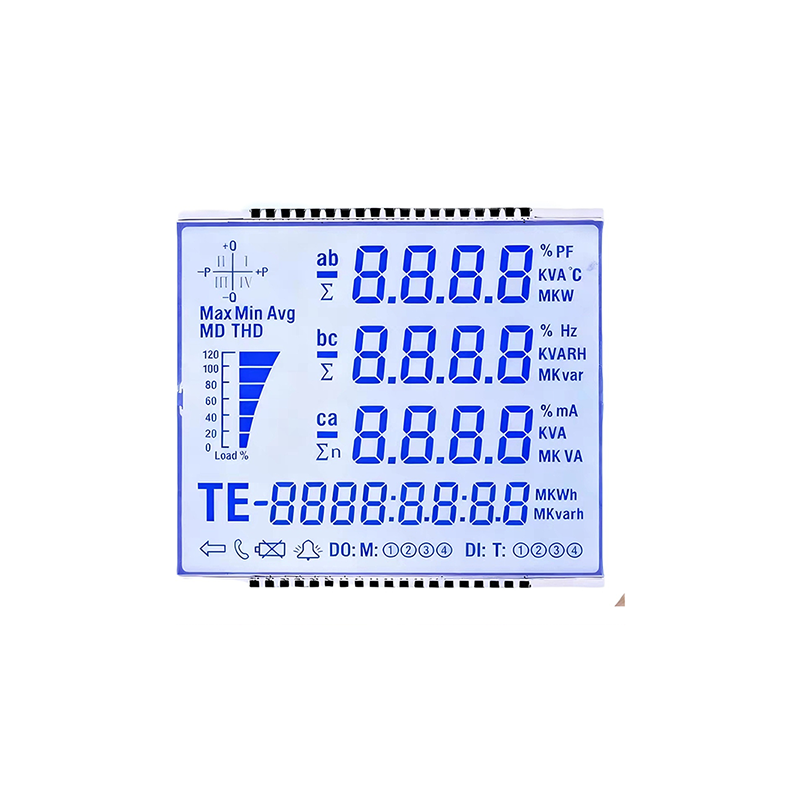

FSTN LCD builds upon STN LCD by incorporating an optical compensation film to counteract the optical path difference and dispersion caused by the super-twisted rotation of liquid crystal molecules. This improves background color and increases viewing angle width. The viewing angle width of FSTN products exceeds that of STN, reaching up to 160°, meeting the need for multi-angle screen usage. FSTN LCD is widely used in flow meters, precision measuring instruments, interconnected metering systems, kitchen appliances, and medical instruments. It supports complex graphics and multiplex dot matrix displays, enabling high-level driving of up to 320 DUTY. Auxiliary temperature compensation can be applied to enhance display performance under ultra-low temperature conditions. Display modes include black characters on a green background, black characters on a gray background, and white characters on a blue background. All products comply with RoHS 2.0 directives and REACH regulations and can withstand high-intensity environmental testing.
| Manufacturer | Eastern Display |
| Display mode | FSTN LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 130-160° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -30℃-80℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100,000 H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Multiplex drive LCD |
Key Words：FSTN LCD/COG LCD/mini LCD screen/LCD glass/Segment LCD/Wide Viewing angle/High contrast/Graphic lattice LCD/Dot matrix display/ Multiplex drive LCD
