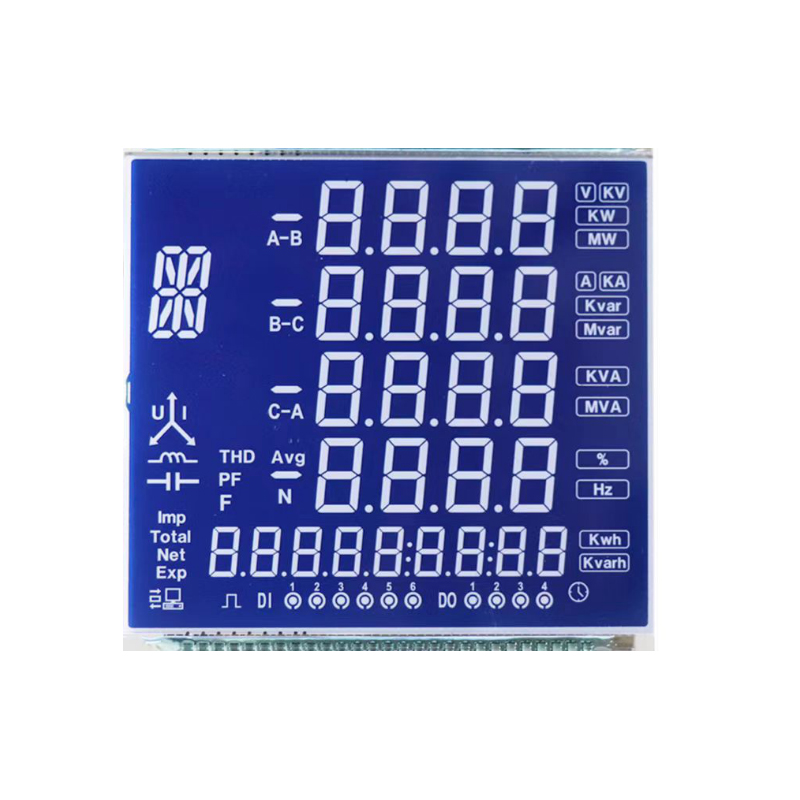

FSTN LCD Film compensated STN has a wide viewing angle, suitable for multi-channel dynamic driving, more uniform background color than STN LCD, and suitable for displaying complex screens. It can achieve 320 channels, no crosstalk, and can be made into dot matrix.
FSTN segment code products have an ultra-wide viewing angle and can be viewed by multiple people at the same time. High-precision flow meters, precision measuring tools, interconnected metering, kitchen appliances, and vehicle-mounted instruments mostly use FSTN LCD segment code screens. Most complex graphics and dot matrix products use FSTN segment code screens without crosstalk. The dot matrix size below 320DUTY can be customized, and the connection method can be customized (pins, conductive tape, FPC). Auxiliary temperature compensation can improve the low temperature effect and can be made into a touch screen. There are black text on green background, gray background with black text, and blue background with white text display modes, which can be used with color backlight and color silk screen. The product material standards meet ROSH REACH requirements.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 60-120 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Negative/Positive Customization |
| Viewing angle direction | Customization |
| Operating voltage | 2.5V-5V |
| Viewing angle range | 70-150° |
| Number of drive paths | MULTI DUTY |
| Backlight type/color | Customization |
| Display color | Customization |
| Transmittance type | REFLECTIVE / Reflection / TRANSFLECTIVE Customizable |
| Operating temperature | -40-80℃ |
| Storage temperature | -40-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Microampere level |
This product is an LCD 16×2 character dot matrix display module, which is used for ASCII character display, with 2 lines and 16 characters each. The display screen adopts FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a character driver chip, adopts COG production technology, is thin and light, and has low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface.
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: Segment LCD screen with built-in touch screen Touch LCD segment ...
Product description: STN LCD type is widely used in industrial instruments, industria...
Product description: 1.3 inch 128 * 64 oled display, 6800, 8080, 8-bit parallel port ...
Product description: 2.4 inch OLED display, resolution 128*64, parallel port or I2C i...
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: Antistatic LCD is a liquid crystal display with antistatic funct...
Product description: STN/segment LCD has a wide viewing angle, which can reach 150° f...
This product is a 12232 LCD dot matrix display that can display graphics with 122 columns x 32 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses FSTN mode, displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the SPI interface or 8-bit parallel LCD interface to display various images and texts.
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: This product is an automotive instrument tft display, with a res...
Color film LCD is a color film combined with a fully transparent LCD to present color display content. For fixed display content, it can present the effect of a TFT color screen, and can be customized in special shapes. The price is much lower than that of a TFT color screen, the power consumption is low, and the high and low temperature performance is better than TFT. Color film LCD is usually in negative display mode and is used in combination with a backlight.
