Product description: Full-view VA LCD segment screen is an upgraded process of ordinary VA LCD segment screen. Users can watch clearly from any angle, solving the problem of limited viewing angle of traditional VA screens, expanding the viewing angle from ordinary VA screens to 180°, without blind spots, Full-view VA LCD segment screen is an improvement of segment display screen based on vertical alignment technology. It has become the preferred choice for high-end display applications with its wide viewing angle, high contrast and color expression. The contrast is significantly higher than other types of segment screens (such as TN or HTN), especially when black background and white ...

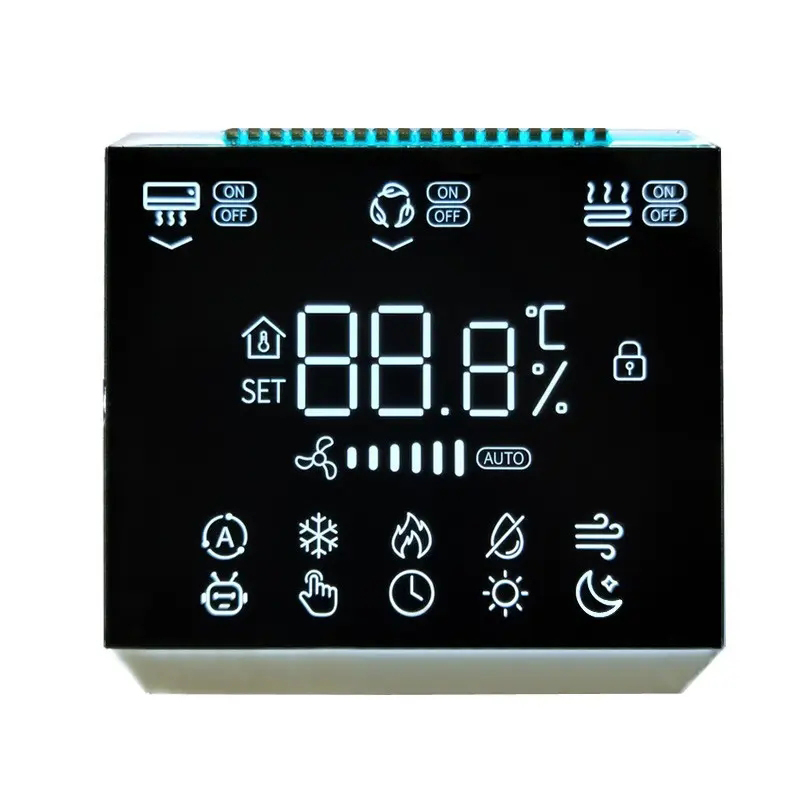

Full-view VA LCD segment screen is an upgraded process of ordinary VA LCD segment screen. Users can watch clearly from any angle, solving the problem of limited viewing angle of traditional VA screens, expanding the viewing angle from ordinary VA screens to 180°, without blind spots,
Full-view VA LCD segment screen is an improvement of segment display screen based on vertical alignment technology. It has become the preferred choice for high-end display applications with its wide viewing angle, high contrast and color expression. The contrast is significantly higher than other types of segment screens (such as TN or HTN), especially when black background and white text or color display is better, suitable for high-end instruments, medical equipment and other scenes with high visual requirements. Combined with color printing or color film to achieve a cool display of gradient colors, the cost is lower than that of TFT screens, and it can also be used in combination with TFT screens. The characteristics of full viewing angle and no blind spots meet the needs of observing the screen from all angles.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 120-160 |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Negative |
| Viewing angle direction | Full viewing angle |
| Operating voltage | 2.5V-5V |
| Viewing angle range | 180° |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customized |
| Display color | Customized |
| Transmittance type | Transmissive |
| Operating temperature | -45-85℃ |
| Storage temperature | -45-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | 0.6-2mA |
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
Product description: Ultra-wide temperature LCD segment code screen is a kind of LCD ...
This product is a 240128 LCD dot matrix display that can display graphics with 240 columns x 128 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB and SMT production processes, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
Product description: An i2c oled display with a resolution of 128*64 and an I2C inter...
DFSTN (Double-layer Super Twisted Nematic) LCD is a super twisted nematic display technology based on a double-layer compensation film. The product needs to be used in conjunction with a backlight, has the characteristics of high contrast, wide viewing angle, and is suitable for dynamic display. It is widely used in medical equipment, industrial equipment, consumer electronics and other fields.
This product is a 320240 LCD dot matrix display that can display graphics with 320 columns x 240 rows of pixels. The display uses STN mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is thin and light, has ultra-low power consumption, and a wide temperature range. It is connected to the main control MCU through the SPI interface and is used to display various images and texts.
Product description: This product is a mini TFT display with a resolution of 320*480,...
Product description: HTN LCD types are widely used in industrial instruments, industr...
Product description: HTN LCD types are widely used in industrial instruments, industr...
Diffusion film LCD converts point light source or line light source (such as LED or CCFL) into uniform surface light source to ensure the brightness and color uniformity of LCD display. The light source of LCD motherboard with diffusion film can directly use LED lamp beads to reduce the cost of backlight source, and can also effectively cover the dots or other optical defects on the light guide plate, so that the brightness of LCD display is more uniform.
Product description: VA LCD products have high contrast, can display multiple colors,...
Product description: Ultra-small size segment LCD is a display technology widely used...
This product is a 12232 LCD dot matrix display that can display graphics with 122 columns x 32 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
This product is a 12864 LCD dot matrix display that can display graphics with 128 columns x 64 rows of pixels. The display uses STN yellow-green mode LED backlit LCD, which displays black text on a yellow-green background, with high contrast and wide viewing angle. The module contains a driver chip, adopts COB production technology, and is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts. The internal compensation circuit enables the module to achieve good display effects even when used in a wide temperature range.
Product description: This product is a mini TFT display with a resolution of 480*272,...
Special-shaped LCD is a non-traditional rectangular LCD display, usually designed into a circular, arc, triangle or other irregular shapes according to specific needs. This type of display has unique advantages in design and function, meeting the needs of some special fields.
