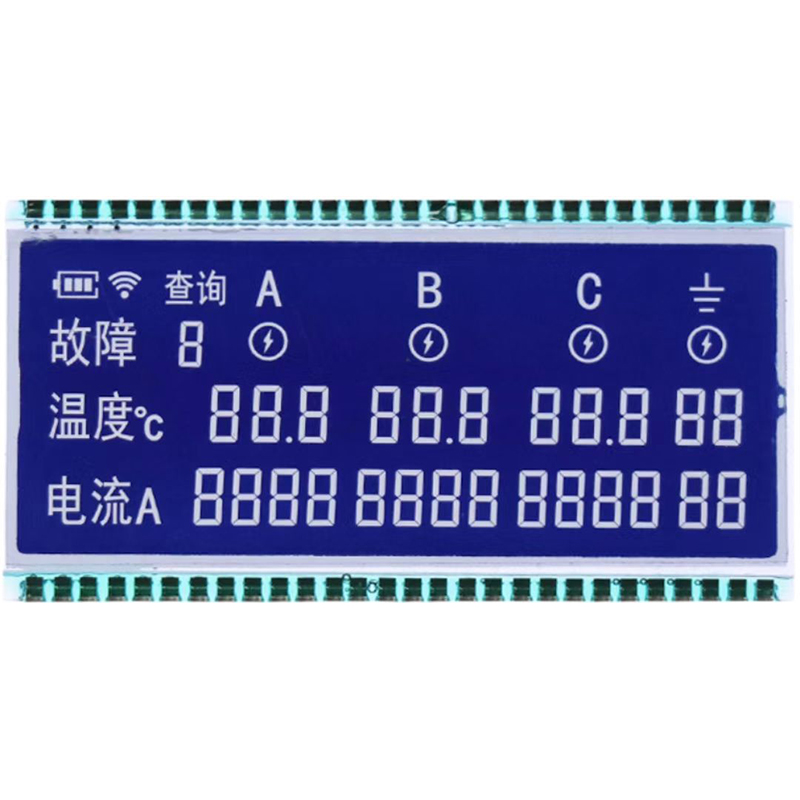

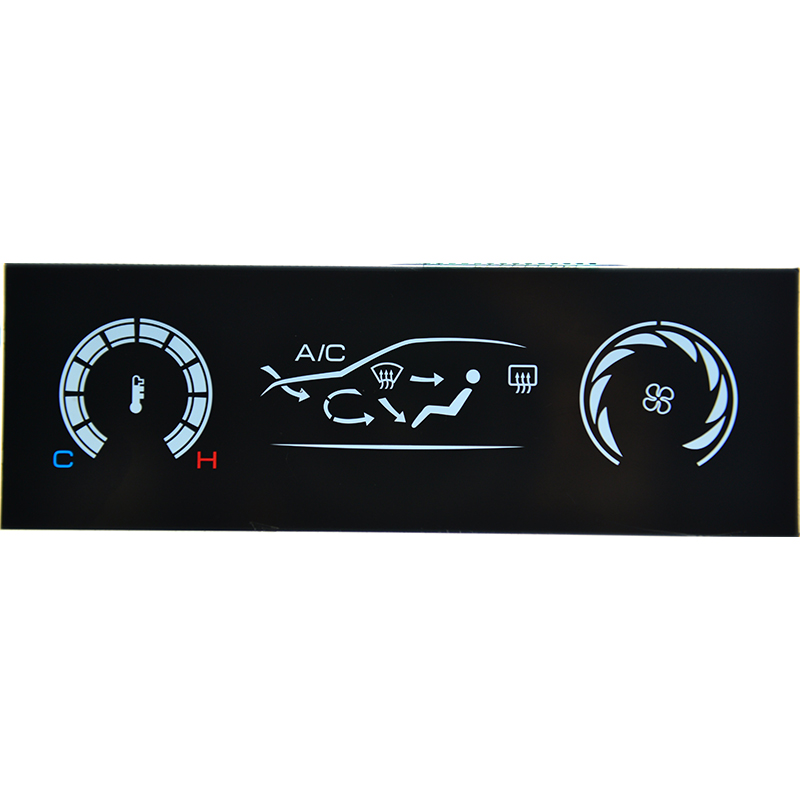

Product description: Fully transparent LCD segment code screen is a completely transparent liquid crystal display screen that needs a backlight to display content. Since the liquid crystal itself does not emit light, the full transparent screen must rely on the backlight to clearly display information. This screen can be used normally in a dark environment, and can transmit the background color of the backlight, combined with silk screen printing and color film to present a perfect color effect. Fully transparent LCD segment code screen must be equipped with a backlight source. Common backlight colors include white, blue, green, etc., and can also be applied with a uniform light film,...
Fully transparent LCD segment code screen is a completely transparent liquid crystal display screen that needs a backlight to display content. Since the liquid crystal itself does not emit light, the full transparent screen must rely on the backlight to clearly display information. This screen can be used normally in a dark environment, and can transmit the background color of the backlight, combined with silk screen printing and color film to present a perfect color effect.
Fully transparent LCD segment code screen must be equipped with a backlight source. Common backlight colors include white, blue, green, etc., and can also be applied with a uniform light film, and can be displayed with simple lamp beads. The design of the backlight source can be customized according to customer needs to ensure that a clear display effect can be provided in different environments. Fully transparent LCD segment code screens are widely used in the following fields: Household appliances: such as air purifiers, water purifiers, induction cookers, etc. Medical equipment: such as electronic infusion pumps, nebulizers, etc. Industrial control: such as water meters, electricity meters, natural gas meters, etc. Car electronics: such as car instruments, electronic water thermometers, etc. DFSTN, VA and other negative display products must adopt the fully transparent type, TN, HTN, STN, FSTN positive display products can also be made into the fully transparent type.
| Manufacturer | EASTERN DISPLAY |
| Contrast | 20-120 customizable |
| Connection method | PIN/FPC/ZEBRA |
| Display type | Negative/Positive |
| Viewing angle direction | 6 0’ CLOCK customizable |
| Operating voltage | 2.5V-5V |
| Viewing angle range | 60-140° customizable |
| Number of drive paths | STATIC/ MULTI DUTY |
| Backlight type/color | Customizable |
| Display color | Customizable |
| Transmittance type | Transmissive |
| Operating temperature | -45-90℃ |
| Storage temperature | -50-90℃ |
| Service life | 100,000-200,000 hours |
| UV resistance | YES |
| Power consumption | Customizable |
